| BASIC INFORMATION | ||
| Form Factor | Mini-ITX Form Factor 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm] |
|
| Basic Information | ||
| Chipset | Intel B560 Chipset | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 2x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU [by JEDEC & POR]1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU [by JEDEC & POR]1 Max frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: Support up to 64GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 5120x3200 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Realtek RTL8125B 2.5Gbps LAN controller | |
| Supported Storage | 4x SATA 6Gb/s ports [from B560 chipset] 2x M.2 slots [from B560 chipset] 2x M.2 slots [Key M] M2 1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU [From CPU] Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU [From B560 chipset] Supports 2280 storage devices M2 2 slot [from B560 chipset] Supports PCIe 3.0 x4 only Supports 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|

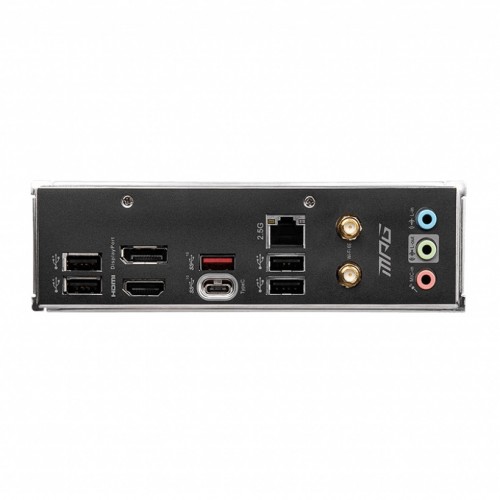

| USB Port | Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port on the back panel] 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C port and 2 Type-A ports are available through the internal USB 3.2 Gen 1 5Gbps connectors] 6x USB 2.0 ports [4 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector] |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years | |

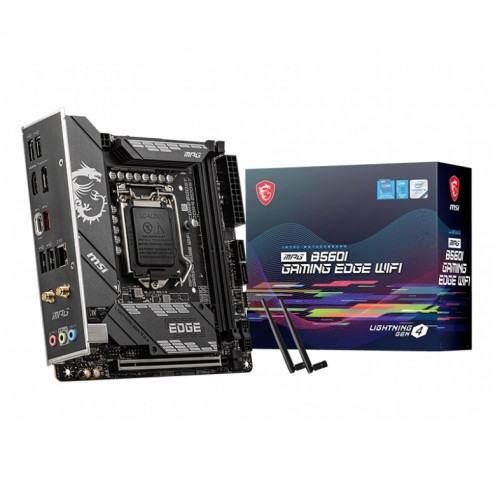

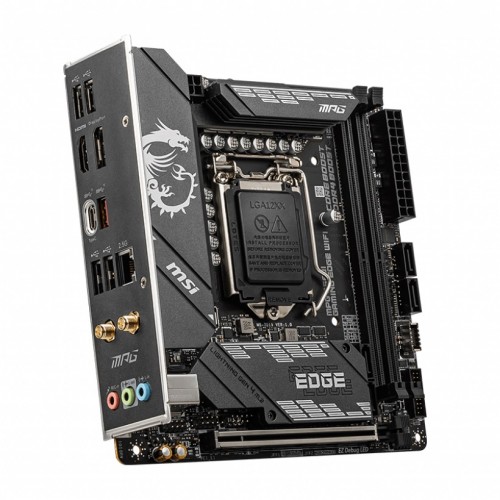

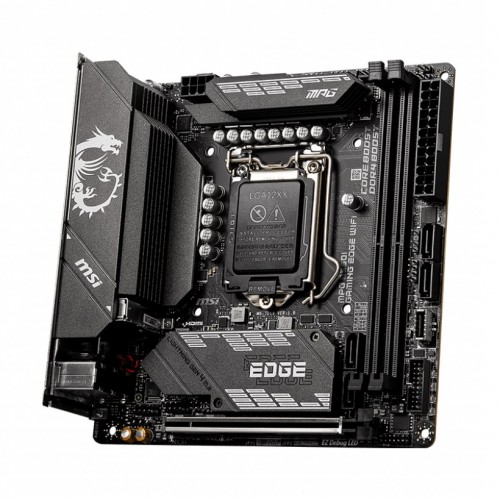

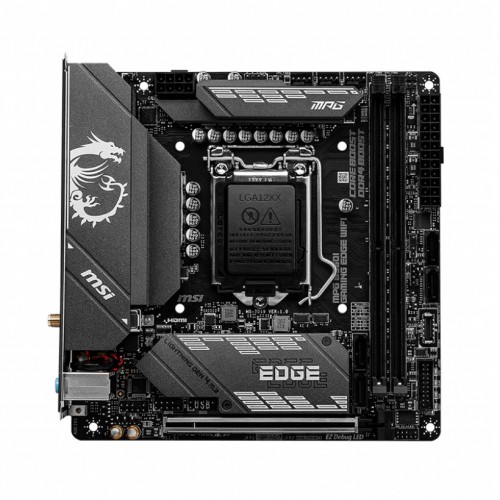

MSI MPG B560I GAMING EDGE WIFI Mini-ITX Motherboard supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5200(OC) MHz. It offers a Lightning Fast Game experience with the help of PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2. It features an Enhanced Power Design. It has a 6+2+1 direct power design, 8-pin CPU power connectors, Core Boost, DDR4 Boost. It comes with a Premium Thermal Solution. Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. It is equipped with 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. It is manufactured with High-Quality PCB. 8-layer PCB made by 2oz thickened copper material. It comes with AUDIO BOOST, Reward your ears with the studio-grade sound quality for the most immersive gaming experience. It comes with pre-installed I/O Shield: Better EMI protection and more convenience for installation.
