MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
--1 %
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।
MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
Product Price7,790৳
Special Price7,890৳
Stock Status
In Stock
Product code
2893
Brand
MSI
Product model A520M-A Pro AM4
Warranty 3 years
Total Reviews

Cash Discount Price

7,890৳
Check available payment method
Contact for bulk quantity: 01973167985

EMI Price

8,300৳
Starting from 2,767৳/month. For Discount
Price Click here to view 25 banks EMI Plans
Ex Tax: 7,890৳
***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset AMD B520
Audio Realtek ALC892 Codec
7.1-Channel High Definition Audio
CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
BASIC INFORMATION
Form Factor Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Memory
Memory Type:
Dual-channel memory architecture
Slots:
2x DDR4 memory slots
Supported Memory:
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133
/4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory:
64GB
Graphics
Graphics Graphics:
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Max Shared Memory:
16GB

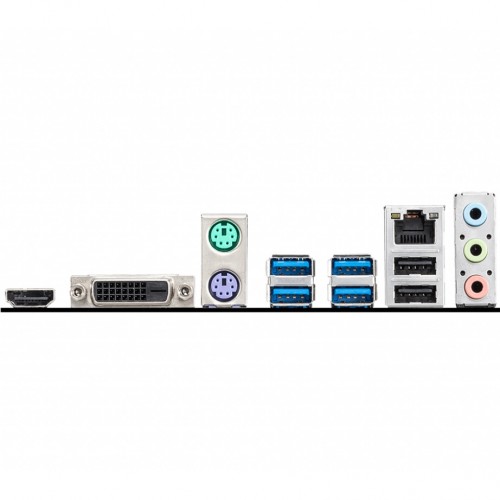

Connector & Ports
HDMI 1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
LAN 1x Realtek RTL8111H Gigabit LAN controller
Supported Storage AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
USB Port AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps
connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0
connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
WARRANTY INFORMATION
Manufacturing Warranty 03 Years Warranty

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard

The MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard is a high-quality and reliable motherboard designed for AMD Ryzen processors. Its Micro-ATX form factor makes it ideal for compact desktop builds, while its impressive feature set ensures smooth performance and versatility.Powered by the AMD B520 chipset, the motherboard supports AMD Ryzen 5000/4000G Series and AMD Ryzen 3rd Generation Processors, offering users a wide range of options to choose from to suit their computing needs. The dual-channel memory architecture with two DDR4 memory slots can handle up to 64GB of RAM, allowing for efficient multitasking and smooth overall system performance.For audio, the Realtek ALC892 Codec provides 7.1-channel high-definition audio, delivering immersive and clear sound for gaming, movies, and other multimedia experiences.In terms of graphics capabilities, the motherboard is equipped with a variety of video output options. It features a HDMI 2.1 port, supporting a maximum resolution of 4096x2160 @60Hz, and a DVI-D port with a maximum resolution of 1920x1200@60Hz. While it doesn't have onboard graphics, it is compatible with AMD Ryzen processors that come with integrated graphics, allowing users to build systems without the need for a dedicated GPU.The storage options on this motherboard are robust, with four SATA 6Gb/s ports and one M.2 slot (Key M) available. The M.2 slot supports PCIe 3.0 and SATA 6Gb/s, accommodating high-speed NVMe SSDs as well as traditional SATA-based storage devices. This ensures fast data access and efficient storage management for all your applications and files.Connectivity is well-covered with a Realtek RTL8111H Gigabit LAN controller, providing stable and fast Ethernet networking capabilities for online gaming and data transfers.The motherboard's rear I/O panel includes the aforementioned HDMI 2.1 and DVI-D ports, as well as two USB 3.2 Gen 1 5Gbps Type-A ports and two USB 2.0 ports. Additionally, four more USB 3.2 Gen 1 5Gbps Type-A ports are available through internal connectors, providing plenty of options for connecting peripherals and accessories.MSI ensures the A520M-A Pro's durability and reliability, backing it up with a 3-year manufacturer's warranty, giving users peace of mind when it comes to product quality and support.

Features:

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
