| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors |
|
| Chipset | AMD B550 |
|
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM | |
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Max Shared Memory | 16 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |

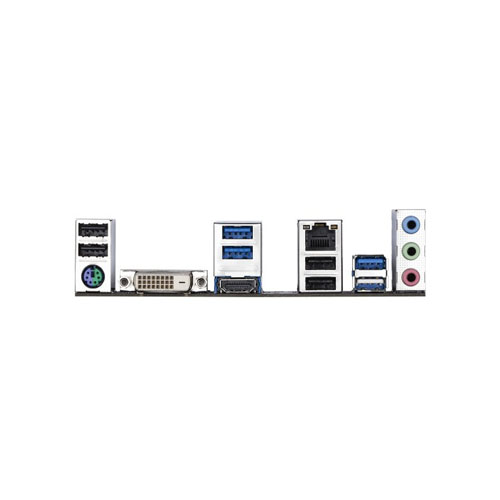

| USB (s) | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors, integrated into the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Support for Windows 10 64-bit |
|
| Warranty Information | ||
| Warranty | 03 years | |

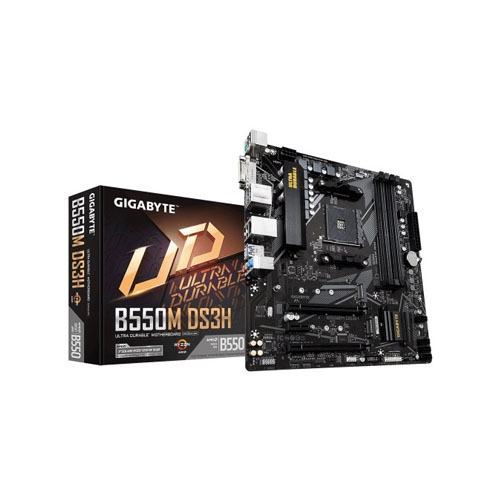

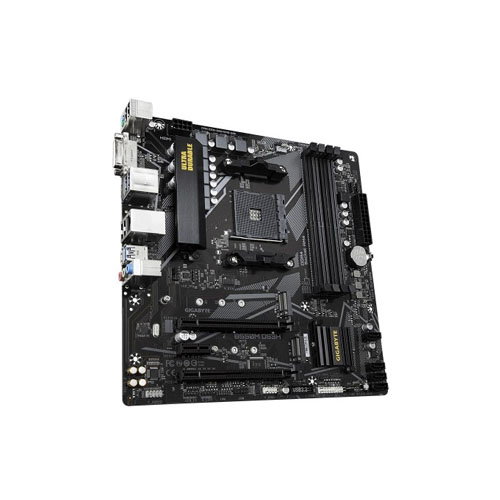

The GIGABYTE B550M DS3H AMD Motherboard is a high-quality micro ATX motherboard designed to support the latest AMD Ryzen processors and Ryzen processors with Radeon Graphics. It comes with a range of features that make it an excellent choice for both gamers and content creators seeking a reliable and efficient computing platform.At the heart of this motherboard is the AMD B550 chipset, providing robust performance and a wide range of connectivity options. The motherboard supports 3rd Generation AMD Ryzen processors and Ryzen processors with Radeon Graphics, making it compatible with a broad selection of CPUs for different computing needs.For audio enthusiasts, the GIGABYTE B550M DS3H features the Realtek ALC887 audio codec, offering high-definition audio with support for 2/4/5.1/7.1-channel setups. This ensures an immersive and crystal-clear sound experience, whether you're gaming, watching movies, or listening to music.The integrated graphics provided by the 3rd Generation AMD Ryzen processors with Radeon Graphics offer excellent visuals, supporting multiple displays through the DVI-D and HDMI ports. The HDMI port supports a maximum resolution of 4096x2160@60 Hz and is equipped with HDMI 2.1 version, HDCP 2.3, and HDR support, delivering smooth and vibrant visuals.The motherboard provides various internal I/O ports to connect and expand your system. These include multiple fan headers to keep your system cool, RGB LED strip headers to add custom lighting effects, M.2 connectors for high-speed SSDs, SATA 6Gb/s connectors for traditional storage drives, and USB headers for additional external connectivity.Additionally, the GIGABYTE B550M DS3H features USB 3.2 Gen 1 and USB 2.0/1.1 ports for fast data transfer and connection to a variety of peripherals.
The Gigabyte B550M DS3H is a feature-rich and budget-friendly motherboard designed for AMD processors. Offering excellent performance and a range of connectivity options, it is a popular choice among users looking to build a reliable and capable computer system.The B550M DS3H supports AMD Ryzen processors, including the latest Ryzen 5000 series, providing powerful and efficient performance for gaming, content creation, and everyday computing tasks. It features the AM4 socket, which ensures compatibility with a wide range of processors, giving users flexibility in choosing their preferred CPU.
This micro-ATX motherboard offers a comprehensive set of features for its price range. It supports dual-channel DDR4 memory, allowing for fast and efficient data transfer. With up to four DIMM slots, the B550M DS3H can accommodate a maximum memory capacity of up to 128GB, providing ample space for multitasking and resource-intensive applications.
