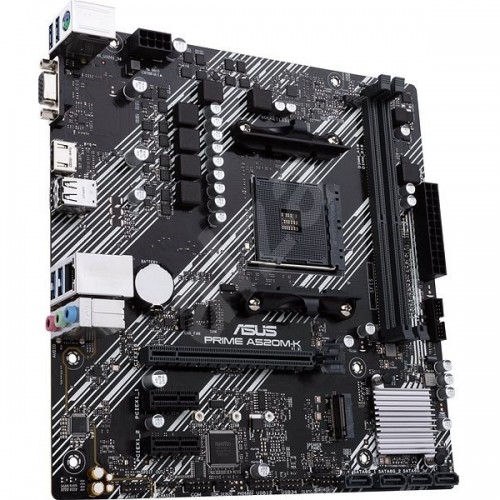

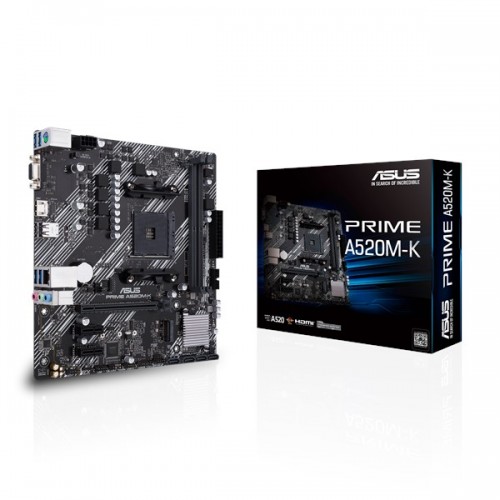

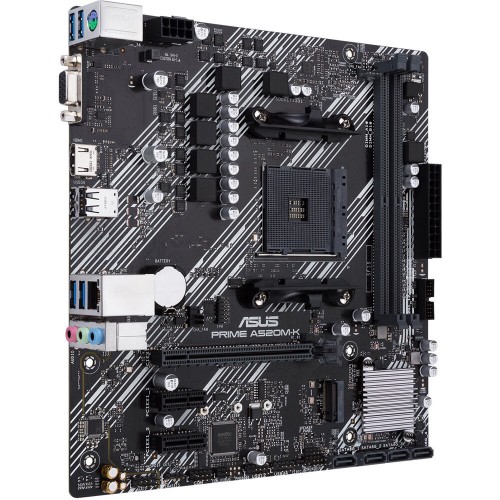

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
-7 %
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
৳ 8,490
৳ 9,110
Ex Tax: ৳ 8,490
  • Stock: In Stock
  • Brand: ASUS
  • Model: Asus Prime A520M-K

Short Description

AMD AM4 Socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

5X Protection III

Ultrafast connectivity

Comprehensive cooling

*** অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে। অনলাইন অর্ডার সংক্রান্ত যে কোনো তথ্যের জন্যে যোগাযোগ করুন 01973167983-4,01673991833,01912167988, 01973167989 এই নাম্বারে।**

Specification

Motherboard
AudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking,
up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to
support 8-channel audio output.
BIOS256 MB Flash ROM, UEFI AMI BIOS
ChipsetAMD A520
CPUAMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000
Series Desktop Processors
Form FactormATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Graphics1 x D-Sub 1 x HDMI 2.1(4K@60HZ)
HDMI1 x HDMI 2.1(4K@60HZ)
Internal I/O Ports1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s)
additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage
devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
LANRealtek RTL8111H 1GB Ethernet ASUS LANGuard
MemoryType: Dual Channel DDR4 Memory Technology Slots 2 x DIMM
Supported Memory:
4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.
)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Un-buffered Memory Maximum Mamory 64GB, DDR4
SlotsPCI 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon
Graphics Processors
1 x PCIe 3.0 x16 (x16 mode) AMD A520 Chipset
2 x PCIe 3.0 x1 M.2 Socket
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0
x4 and SATA modes) storage devices support
StorageTotal supports
2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD Ryzen 5000 Series/
3000 Series Desktop Processors : 1 x M.2_1 socket 3,
with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes)
storage devices support AMD Ryzen 4000 G-Series
Processors : 1 x M.2_1 socket 3, with M Key,
Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage
devices support AMD B550 Chipset : 1 x M.2_2 socket 3,
with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA
modes) storage devices support 4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
USB PortRear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
WARRANTY INFORMATION
Manufacturing Warranty03 Years Warranty

Description

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

Boasting a robust power design, ASUS Prime series is expertly engineered with comprehensive cooling solutions and intelligent tuning options. Prime A520M series motherboards offer daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Prime A520M motherboard packs flexible tools to tune every aspect of user's system, enabling user to tweak performance settings maximizing the productivity. It provides intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Coupled with EPU, it has flexible cooling control system that decreases chassis fan speeds below to the default minimum to keep user's system whisper-quiet when performing light tasks. And the Digi+ voltage regulator module delivers real time control over voltage droop, automatically switching frequency and power-efficiency settings. Additionally, Prime A520M-K is designed with an array of hybrid fan headers and features comprehensive cooling controls while owning multiple temperature sources and smart protection. It also provides all the fundamentals to boost daily productivity. This supports high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases. Its audio system features audio shielding, separate layer for left and right tracks which offers an immersive sound. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. To mention, SafeSlot Core is the ASUS-exclusive PCIe slot which is available here. The exclusive Prime A520M-K comes with 03 years of warranty.
