| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | ATX Form Factor 12.0 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | |
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | 3 x Audio jack(s) | |
| CPU | AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors Supports CPU up to 8 cores | |
| Memory | ||
| Slots | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics Processor 1 x PCIe 3.0/2.0 x16 (x8 mode) *1 AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 2 x PCIe 2.0 x1) | |
| Memory | 4 x DIMM DDR4| Dual Channel Memory Architecture| DDR4 3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU.|64GB | |
| Storage | AMD B450 chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2 | |
| Graphics | ||
| Graphics | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors| Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz | |
| Connector & Ports | ||
| LAN | 1 x LAN (RJ45) port(s) | |
| Internal I/O Ports | 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header | |
| USB Port | 1 x HDMI| AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years | |

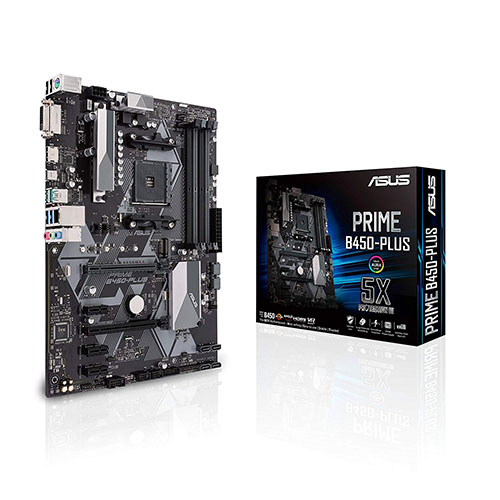

ASUS Prime B450 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450 Series motherboard, you build smart, easy and affordably.
To help keep things cool, the Prime B450 has multiple fan headers that support both DC and PWM modes, so you can control their speed within BIOS or a third-party software to find a perfect balance between noise and cooling.
Aside from six SATA ports, this motherboard is also equipped with a single M.2 slot, which supports both PCIe and SATA interfaces, for speeds of up to 32 Gb/s when used with an appropriate drive. Moreover, all AMD B450 motherboards come with AMD StoreMI technology, which is a software designed to increase system responsiveness by caching frequently used data to your SSD or RAM.
There are four memory slots supporting up to 64GB of DDR4 RAM at speeds of up to 3200 MHz when overclocked. It also supports ECC memory; however, compatibility varies by CPU.
The Prime B450 is built with Realtek ALC 887-VD2 8-channel HD audio, LED illumination, audio shielding, dedicated PCB layers, and premium audio capacitors to deliver an immersive listening experience for all types of applications whether you're using speakers or headphones.
Aside from the built-in LED-illuminated audio section of this motherboard, it also has an Asus Aura Sync RGB header that you can use for other RGB-compatible products to light up your build.
For Ryzen processors with integrated Radeon Vega graphics, this motherboard has HDMI and DVI-D ports you can use to connect a display. DVI-D supports a maximum resolution of 1920 x 1200 at 60 Hz whereas HDMI can support up to 4096 x 2160 at 60 Hz.
