| Case Features | ||
| Radiator Support | Front: 2x 140 or 2x 120mm with Pull | |
| Fan | Front: 2x 120/ 2x 140mm (2x AER RGB 2 140mm included) Top: 1x 120mm/ 1x 140mm (1x AER F140 Case Version Included) Rear: 1x 120mm (1x AER F120 Case Version Included) Aer RGB 2 (140mm) Speed: 500-1,500 RPM Airflow: 30.39 - 91.19 CFM Noise: 22 - 33 dBA Air Pressure: 0.17 – 1.52mm-H2O Bearing: Fluid Dynamic Bearing Fan Connector 4-Pin PWM 2x Integrated Aer RGB 2 140mm Fans 1x Integrated addressable LED Strip |
|
| Key Features | ||
| Features | Motherboard Support: Mini-ITX, MicroATX, ATX Filters: All Air Intakes Material(s) : SGCC Steel, Tempered Glass Compatibility: NVIDIA GeForce RTX 30 series case compatibility chart |
|
| Connectivity | ||
| I/O Port | 1x USB 3.1 Gen 2 Type-C 1x USB 3.1 Gen 1 Type-A 1x Headset Audio Jack 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header |
|
| Physical Specifications | ||
| DIMENSIONS AND WEIGHT | imensions W: 210mm H: 435mm D: 428mm (without feet) Dimensions W: 210mm H: 460mm D: 428mm (with feet) Weight: 7.5 kg |
|

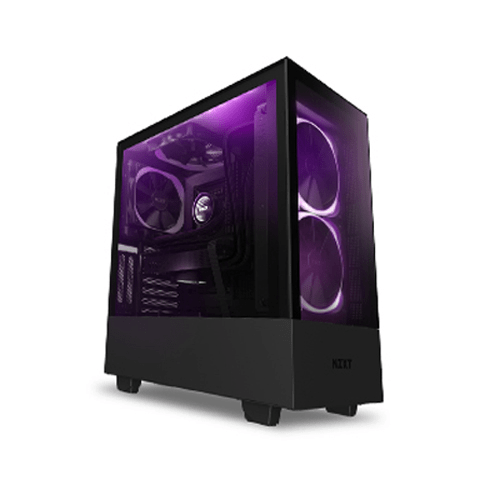

The NZXT H510 Elite Compact ATX Mid Tower Case in Matte Black is a premium, sleek chassis designed to deliver a combination of modern aesthetics and high-performance functionality. With its minimalist design and clean lines, this case is perfect for gamers, PC builders, and enthusiasts looking for a sophisticated and streamlined look for their systems.
One of the standout features of the H510 Elite is its impressive tempered glass front and side panels that provide a full view of the internal components, showcasing your hardware in all its glory. The front panel is sleek and smooth, housing a well-ventilated area to ensure optimal airflow. The tempered glass side panel is hinged, offering easy access to the interior for upgrades or maintenance without removing the entire panel.
Inside, the H510 Elite offers ample space for high-end components, supporting ATX, Micro-ATX, and Mini-ITX motherboards, along with room for multiple storage drives. It features expandable GPU support up to 381mm and clearance for CPU coolers up to 165mm, making it suitable for even powerful components. There are also convenient cable management channels and tie-down points that help keep your build looking clean and organized.
The case is designed for optimal cooling, with two Aer RGB 2 fans pre-installed (one at the front and one at the rear) for enhanced airflow and cooling performance. The H510 Elite also offers compatibility with additional fans or liquid cooling solutions, including support for a 240mm radiator in the front and top.
For connectivity, the H510 Elite features a USB 3.1 Gen 2 Type-C port, along with other essential I/O ports, ensuring convenience and high-speed data transfer. The overall build quality and attention to detail make this case an ideal choice for those seeking a premium, visually striking, and highly functional PC case.
