| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Form Factor | mATX 211mmx243.84mm |
|
| Basic Information | ||
| Chipset | AMD B650 |
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Supported Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |

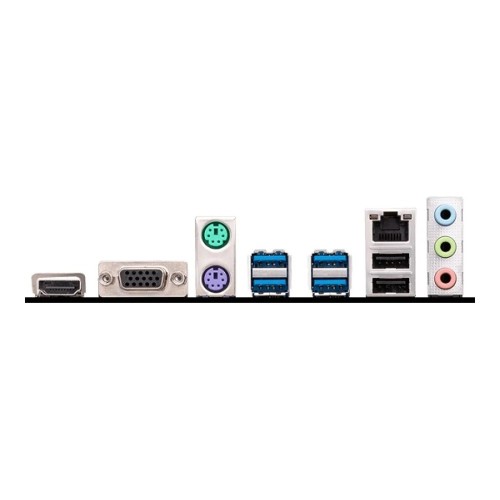

| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN | Realtek® RTL8111H Gigabit LAN |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| VGA | 1x VGA | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboardwith extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
