| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket |
|
| Chipset | Intel H410 | |
| Form Factor | Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) | |
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) |
|
| M.2 Socket | 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices 1x M.2 slot with E key for WiFi module only |
|
| Memory | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 2 x DIMM |
|
| Supported Memory | Intel Core i7/ i9 -Supports up to DDR4 2933 MHz Intel Core i5 and below -Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
|
| Max Shared Memory | 1GB |
|

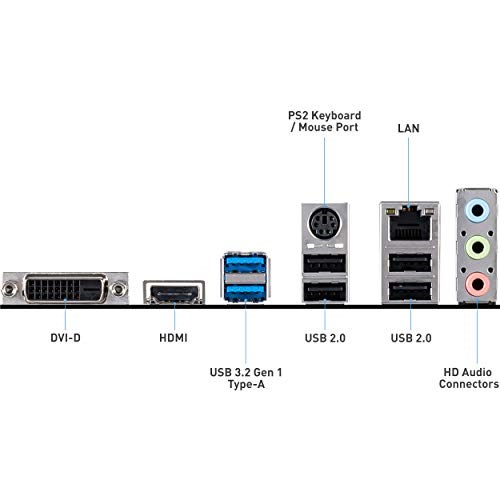

| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
|
| USB (s) | Intel H410 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
|
| LAN Port (s) | 1x Intel I219V Gigabit LAN controller |
|
| Supported Storage | Intel H410 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) -M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
|
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Warranty Information | ||
| Warranty | 03 Years | |

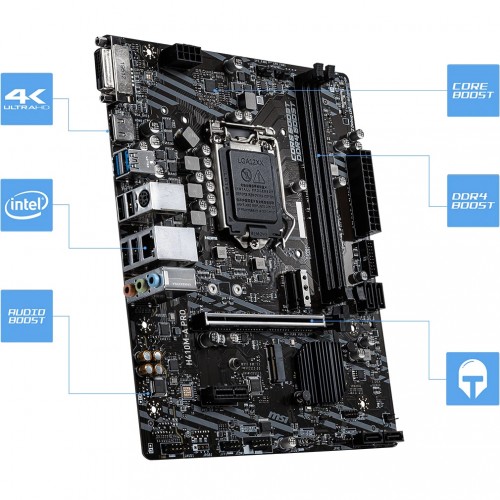

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.
Get specific details about this product from customers who own it.
