| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
|
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Memory | ||
| Slots | 4x DDR4 memory slots | |
| Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Intel I225V 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3, M2_4 slots (from Z590 chipset) M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4 M2_2 & M2_3 support up to SATA 6Gb/s M2_4 slot supports PCIe only. Supports 2242/ 2260/ 2280 storage devices Intel® Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Tuning Controller connector |
|
| USB Port | USB: Intel Z590 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) 2x USB 2.0 Type-A ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB connectors THUNDERBOLT 4: Intel JHL8540 Thunderbolt 4 Controller 2x Thunderbolt 4 (USB-C) ports on the back panel Support up to 40Gbps transfer rate with Thunderbolt devices Support up to 20Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

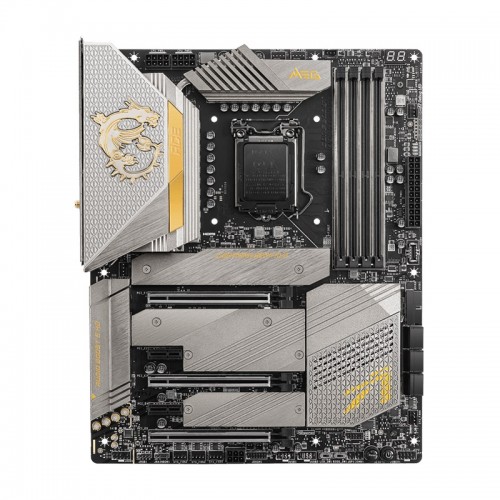

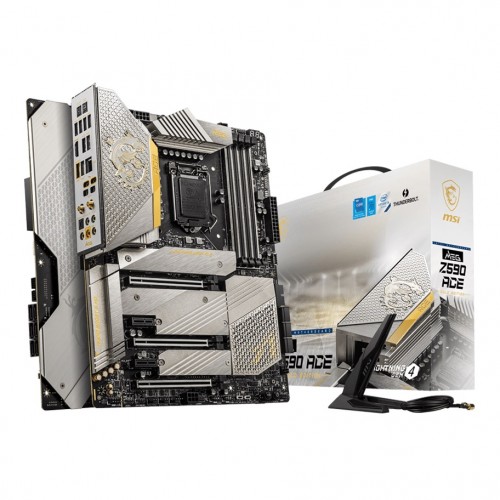

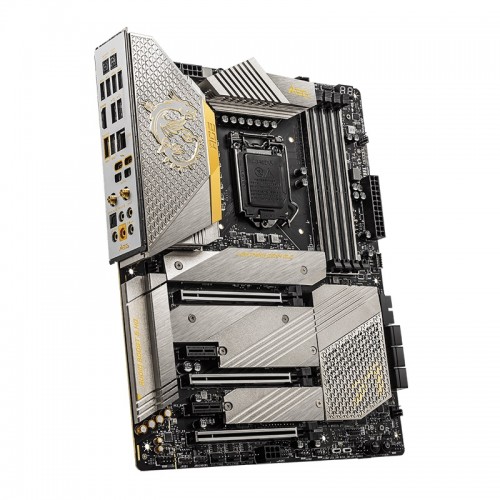

MSI MEG Z590 ACE GOLD EDITION 10th and 11th Gen ATX Motherboard supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5600(OC) MHz. It features premium aesthetics with a platinum color finish and a genuine 24K-gold foil heatsink perfectly shows off the concept of beauty. it comes with dual Thunderbolt 4 ports. Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture provide reliable connectivity and a better user experience. It has onboard 4x M.2 connectors for maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors, and exclusive Mirrored Power Arrangement to unleash the true power of your processors. Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp and Outstanding Cooling Solution. it features 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. It has a smart Button, One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan, and EZ LED control functions with just one click. It has 8 Layer PCB with 2oz Thickened Copper that provides higher performance and long-lasting system stability without any compromise. It has 3 years of warranty.
