| BASIC INFORMATION | ||
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | XL-ATX Form Factor; 32.5cm x 27.5cm | |
| Basic Information | ||
| Chipset | AMD TRX40 | |
| Audio | Realtek ALC4050H codec+Realtek ALC1220-VB codec (rear panel audio) Realtek ALC4050H codec+ESS SABRE9218 DAC (front panel audio) Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | Support 3rd Generation AMD Ryzen Threadripper processors | |
| Memory | ||
| Memory | Type: DDR4 Slots: 8 x DIMM Supported Memory: Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Quad Channel memory architecture Maximum Memory: 256 GB (32 GB single DIMM capacity) |
|
| Graphics | ||
| Graphics | Support for AMD Quad-GPU CrossFire and 4-Way/ 3-Way/ 2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and 4-Way/ 3-Way/ 2-Way NVIDIA SLI technologies |
|
| Connector & Ports | ||
| LAN | Intel 10GbE LAN chip (10 Gbit/ 5 Gbit/ 2.5 Gbit/ 1 Gbit/ 100 Mbit), supporting 2 RJ-45 ports | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET) 8 x SATA 6Gb/s connectors (SATA3 0~7) Support for RAID 0, RAID 1, and RAID 10 ASMedia SATA 6Gb/s Controller: 2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC_PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 3 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 10 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x GIGABYTE add-in card connector 1 x noise detection header 1 x power button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches Voltage Measurement Points |
|
| USB Port | CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/ 1.1 ports available through the internal USB headers (with the included front USB header extention cable) Chipset+ASMedia USB 3.2 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

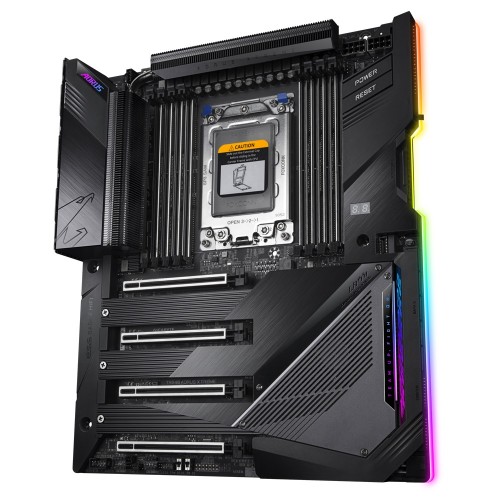

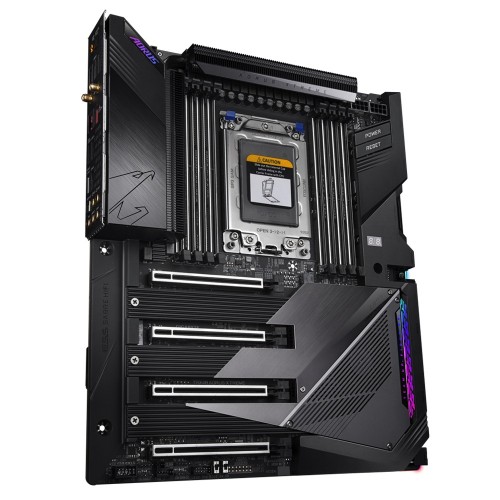

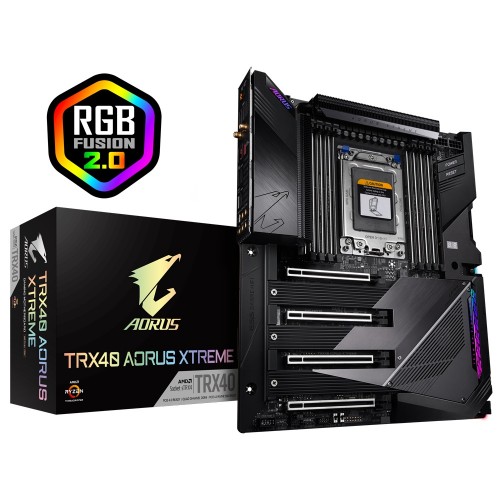

Push your computing experience to the max with the Gigabyte TRX40 AORUS XTREME TRX4 XL-ATX Motherboard. Designed to take full advantage of the AMD TRX40 chipset's large PCIe 4.0 data bandwidth using third-generation AMD Ryzen Threadripper processors with the TRX4 socket, this XL-ATX is built to deliver high-end performance to enthusiasts and professionals who require top performance to run demanding applications. Time for intensive tasks such as 3D rendering, video editing, gaming, and more can be significantly reduced. Up to 256GB of quad-channel ECC DDR4 RAM, reaching 4400 MHz when overclocked, can be installed across eight memory slots. The motherboard also features advanced cooling and supports up to four M.2 SSDs on board, with another four through the included AORUS Gen4 AIC Adapter, and 10 SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its four PCIe 4.0 x16 slots can accommodate 2-Way, 3-Way, 4-Way, and Quad-GPU NVIDIA SLI or AMD CrossFire configurations to maximize your system's graphical capabilities for high frame rates, connecting 4K and 8K monitors, and faster video rendering times.
The TRX40 AORUS XTREME also pairs the Realtek ALC1220-VB audio codec with ESS SABRE 9218 DAC chips to deliver deep and immersive DTS:X Ultra 7.1-channel surround sound. Other features include incredibly fast internet connections via two wired 10 Gigabit Ethernet ports and the built-in 802.11ax Wi-Fi. You can customize your computing experience using the addressable RGB headers to connect light strips, which can be synced with other Gigabyte RGB Fusion 2.0-compatible peripherals such as mice and keyboards using the desktop software or mobile app. Windows 10 64-bit is required to take advantage of all the motherboard's features.
