| BASIC INFORMATION | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor: 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) | |
| Basic Information | ||
| Chipset | Intel Z490 | |
| Audio | Realtek ALC S1220A 8-Channel High Definition Audio CODEC, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback, - High quality 120 dB SNR stereo playback output and SNR recording input, Audio Feature : - Optical S/PDIF out port(s) at back panel, - Audio Shielding, - Dedicated audio PCB layers, - Premium Japanese audio capacitors, - Audio Cover, - Unique de-pop circuit |
|
| CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Memory | ||
| Memory | Type: Dual Channel Memory Architecture, Slots: 4 x DDR4 DIMM, Supported Memory: 4800(O.C.)/ 4600(O.C)/ 500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP), OptiMem II Maximum Memory: 128 GB |
|
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, Intel Z490 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10, Intel Rapid Storage Technology supports, Intel Optane Memory Ready |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor, 1 x DisplayPort 1.4, 1 x HDMI 1.4b, Supports AMD 3-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4b | |
| LAN | Intel I225-V 2.5Gb Ethernet | |
| Internal I/O Ports | 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Headers, 1 x Addressable Gen 2 header(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s connector(s), 1 x Thunderbolt header(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin EATX 12V Power connectors, 1 x Front panel audio connector(s) (AAFP), 1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function, 1 x Thermal sensor connector(s), 1 x CPU OV, 1 x Clear CMOS jumper(s), 1 x COM port header |
|

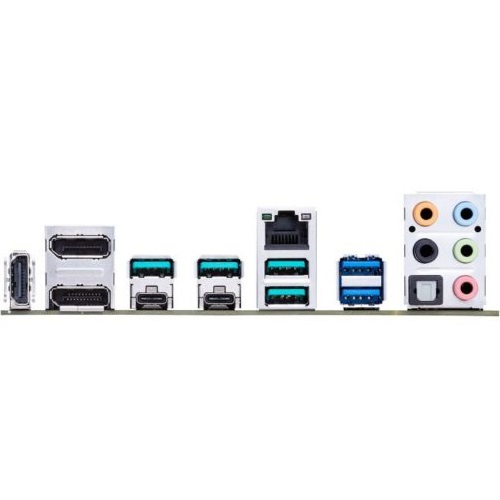

| USB Port | Intel Thunderbolt 3 Controller : 2 x USB 3.2 Gen 2 port(s) (USB Type-C), Rear USB Port ( Total 6 ), 4 x USB 3.2 Gen 2 port(s)(4 x Type-A), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), Front USB Port ( Total 7 ), 1 x USB 3.1 Gen 1 port(s)(1 x USB Type-C), 2 x USB 3.2 Gen 1 port(s)(2 x Type-A), 4 x USB 2.0 port(s) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years | |

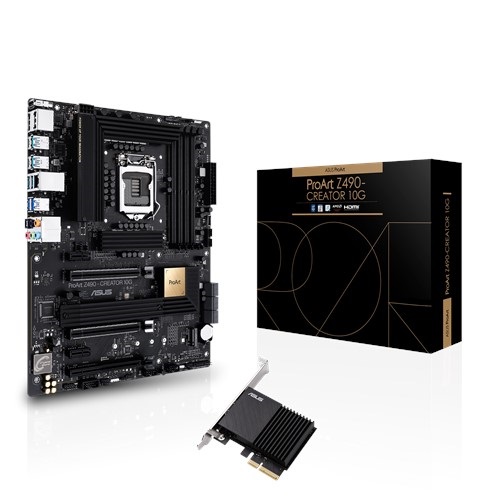

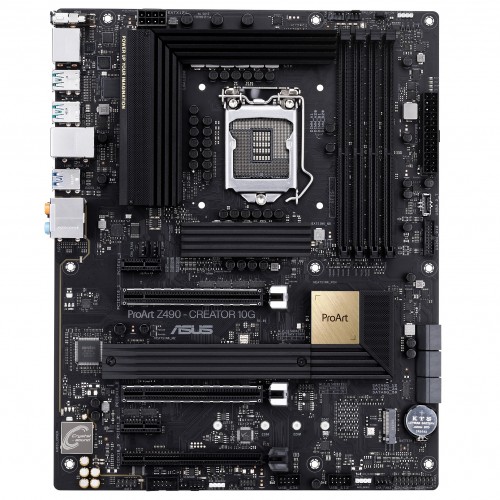

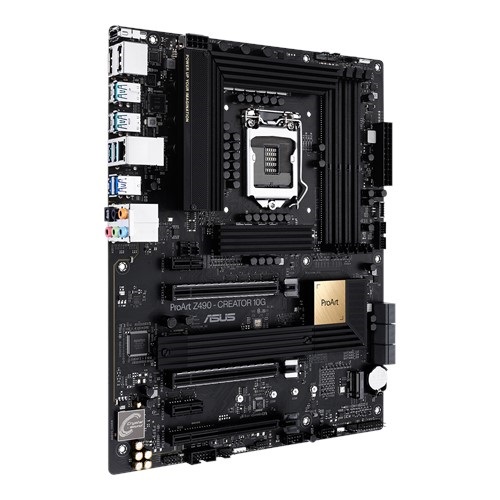

Asus PROART Z490-CREATOR 10G motherboard is a renowned motherboard in Bangladesh. The Asus ProArt Z490-CREATOR 10G DDR4 Intel Motherboard is an Intel mainboard. The motherboard used an Intel Z490 chipset. LGA1200 Sockets Supported. In this motherboard, you can use an 10th Generation Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron Processors. The Asus PROART Z490-CREATOR 10G mainboard has a Dual memory channel and 4 memory slot. It supports DDR4 4800(O.C.), 4600(O.C), 4500(O.C), 4400(O.C), 4266(O.C.), 4133(O.C.), 4000(O.C.), 3866(O.C.), 3733(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000(O.C.), 2933(O.C.), 2800(O.C.), 2666 2400, 2133MHz ram. Maximum ram supports 128GB. Also, you can use 2 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Asus ProArt Z490-CREATOR 10G DDR4 Intel Motherboard comes with Integrated Graphics. PCI Express Slot are 3 PCIe 3.0 x16, 2 PCIe 3.0 x1. The here audio chipset used Realtek ALC S1220A. Audio Channel available are 8, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Asus motherboard offers Intel I225-V lan chipset and it’s speeds 2.5Gbps. USB port available 2 x Thunderbolt 3 TypeC, 4 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a ATX motherboard. Yes it’s a RGB support motherboard, also you can 2 x Aura RGB Strip Headers RGB connector. The Asus ProArt Z490-CREATOR 10G DDR4 Intel Motherboard supported operating system is Supported Operating System. You will get a 3 Years Replacement Warranty brand warranty.
