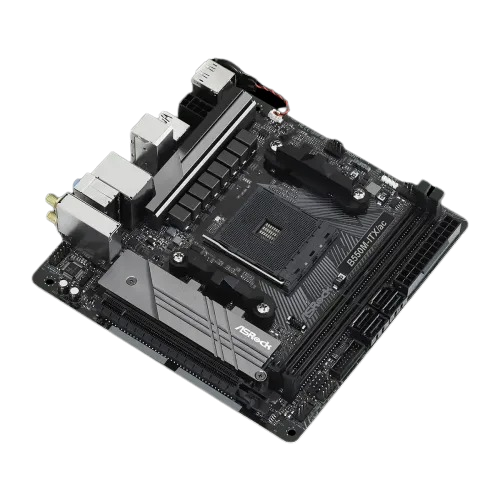

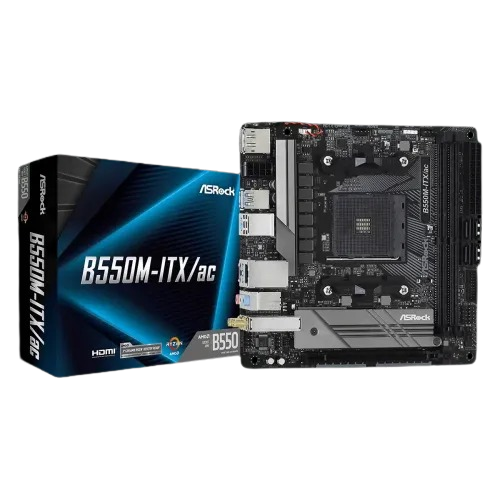

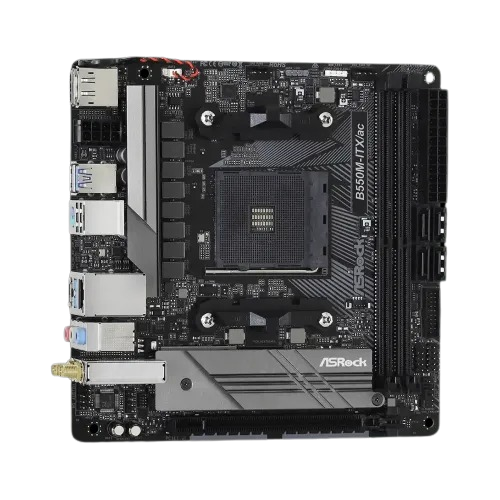

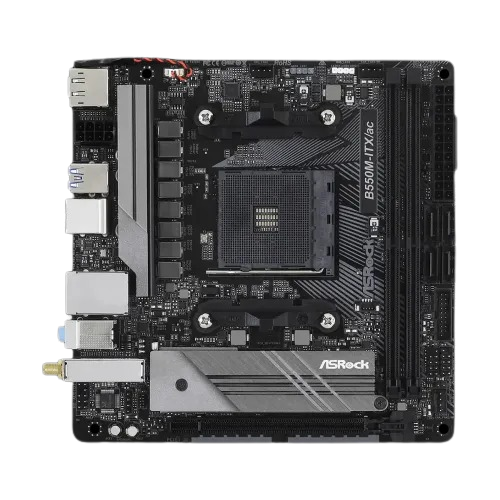

ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard

ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।

ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard

Product code	10380
Brand	ASRock
Product model	B550M-ITX/ac
Warranty	3 years
Total Reviews	Based on 0 reviews. - Write a review

Based on 0 reviews. - Write a review

Upcomming

Upcoming

Add to Wish List Compare this Product

Payment Details

Contract Numbers

Mega Offer

Messenger

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।

BASIC INFORMATION
Supported CPU	- Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors - Digi Power design - 8 Power Phase design
Chipset	AMD B550
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
Form Factor	- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design
Audio	- 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection
Motherboard
Max Shared Memory	Shared memory default 2GB. Max Shared memory supports up to 16GB.
Expansion Slots
PCI	AMD Ryzen series CPUs (Vermeer and Matisse) - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs (Cezanne and Renoir) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs (Picasso) - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode) - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
Interface
Display Port	1 x DisplayPort 1.4
Connectivity
USB	- 2 x USB 2.0 Ports (Supports ESD Protection) - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
Memory
Memory Type	DDR4
Slots	2 x DDR4 DIMM Slots
Supported Memory	- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory* - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots
Maximum Memory	64GB
Graphics
Graphics	- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady
Connector & Ports
HDMI	1 x HDMI Port
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Supported Storage	- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)
Internal I/O Ports	- 1 x RGB LED Header - 1 x Addressable LED Header - 1 x CPU Fan Connector (4-pin) - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Others
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash
Special Features	ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB Intel 802.11ac WiFi ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
WARRANTY INFORMATION
Warranty	03 Years

ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard

Name: ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard
Brand: ASRock
Availability: OutOfStock

ASRock B550M-ITX/ac Motherboard supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors. It supports DDR4 4733+ (OC). It features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. This motherboard features onboard RGB headers and an addressable RGB header that allow the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis, and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. The ASRock B550M-ITX/ac Motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth. It supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of performing twice the speed compared to the previous 3rd generation, giving a lightning-fast data transferring experience. This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next-generation USB 3.2 Gen1 devices and delivering up to 5 Gbps data transfer rates. Complete with two types of most used connectors! Packed with an HDMI + DisplayPort combo, you have more graphics output options. The ASRock B550M-ITX/ac Motherboard comes with 3 years of warranty.

See More Motherboard

Quick Compare

Product Details
Product	ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard	ARKTEK AK-H81M EL 4th Gen Micro-ATX Motherboard	GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor	GIGABYTE H310M S2H ULTRA DURABLE LGA1151 RGB INTEL MOTHERBOARD
Price	0৳	~~6,500৳~~ 5,100৳	~~7,490৳~~ 6,500৳	~~7,500৳~~ 7,000৳
Model	B550M-ITX/ac	AK-H81M EL 4th	GIGABYTE GA-J1800M-D3P	H310M S2H
Brand	ASRock	Arktek	Gigabyte	Gigabyte
Availability	Upcoming	In Stock	In Stock	In Stock
Rating	Based on 0 reviews.	Based on 0 reviews.	Based on 2 reviews.	Based on 0 reviews.

View Details

What is the ASRock B550M-ITX/ac AMD AM4 Mini-ITX Motherboard price in bd 2024?

The ASRock B550M-ITX/ac Motherboard price in BD is 0৳. In today's market on 29-04-2024. The ASRock B550M-ITX/ac Motherboard is Upcoming now in our store (Call us to know about details of this product). 10 customer buy this product From 2025 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order ASRock B550M-ITX/ac online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
