| Basic Information | ||
| Others | Cooling: IceStorm 3.0 | |
| Power | Power Input: 1 x 12v-2x6 power input | |
| Video Memory Specifications | ||
| Core Clock | 2730 MHz | |
| Memory Bus (Bit) | 256-bit | |
| GPU Core | CUDA Cores 10752 | |
| Slot Size | 3.5 slot | |
| Video Memory | 16GB GDDR7 | |
| Memory Clock | 30 Gbps | |
| Features | ||
| Dimension | 332.1mm x 137.5mm x 69.6mm / 13.1" x 5.4" x 2.7" | |
| Interface | ||
| HDCP Support | 2.3 | |
| Power Specifications | ||
| Power Consumption | 360W *High power consumption, please carefully read your PSU manual before installation. | |
| Recommended Power Supply | 850W | |
| Display Option | ||
| Multi Display | Quad Display | |
| General | ||
| Display Outputs | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) 1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) | |
| PCI Express | PCI Express 5.0 x16 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | Microsoft DirectX® 12 Ultimate | |
| WARRANTY INFORMATION | ||
| Warranty | 5 Years (based on online registration) | |

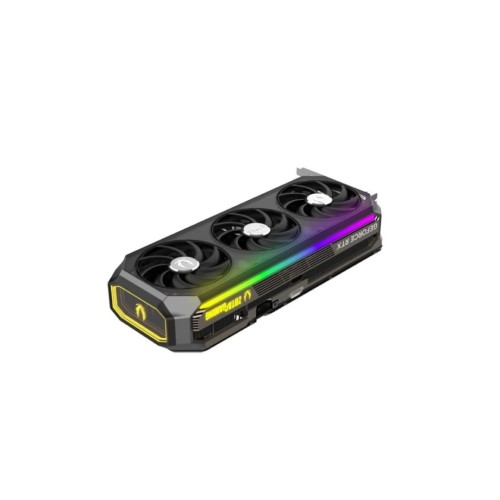

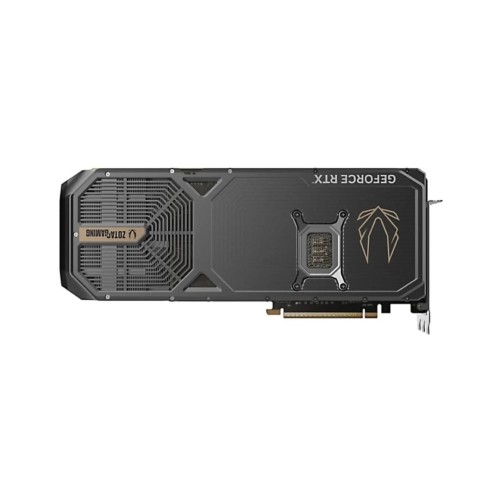

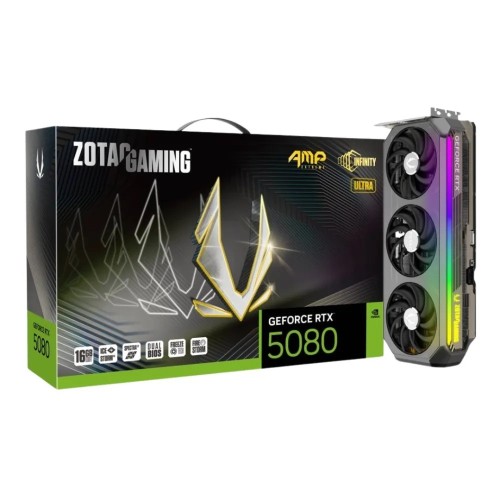

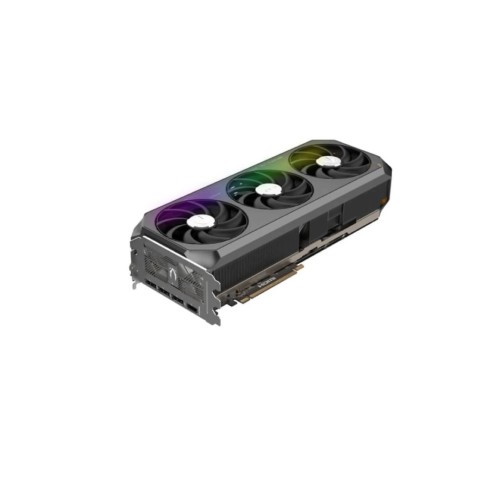

ZOTAC GAMING GeForce RTX 5080 AMP Extreme INFINITY ULTRA 16GB GDDR7 Graphics Card
The ZOTAC GAMING GeForce RTX 5080 AMP Extreme INFINITY ULTRA 16GB GDDR7 is a top-tier graphics card designed for gamers and creators seeking exceptional performance, advanced cooling, and striking aesthetics.
Key Specifications
GPU Architecture: NVIDIA Blackwell
CUDA Cores: 10,752
Video Memory: 16GB GDDR7
Memory Interface: 256-bit
Memory Speed: 30 Gbps
Base Clock: 2,295 MHz
Boost Clock: 2,730 MHz
Interface: PCI Express 5.0 x16
Display Outputs:
3 x DisplayPort 2.1b (UHBR20)
1 x HDMI 2.1b
Maximum Resolution: Up to 4K 480Hz or 8K 165Hz with DSC
Power Consumption: 360W
Recommended PSU: 850W
Cooling System: IceStorm 3.0 with triple 100mm BladeLink fans and a larger vapor chamber
Slot Size: 3.5 slots
Dimensions: 332.1mm x 137.5mm x 69.6mm
