| Video Memory Specifications | ||
| Type | GDDR6 |
|
| Size | 6GB |
|
| Resolution | up to 7680x4320@60Hz | |
| Core Clock | Boost: 1477 MHz |
|
| Memory Clock | 14 Gbps | |
| BUS Type | GDDR6 96-bit |
|
| CUDA Cores | 2304 |
|
| Others | 2nd Gen Ray Tracing Cores 3rd Gen Tensor Cores PCIe Bus Powered Compact Form Factor Fits in 99% of PC builds FREEZE Fan Stop PCI Express 4.0 8x Cooling: Dual 70mm fans + Heatsink Slot Size: Dual Slot |
|
| Interface | ||
| Display Port | 3 x DisplayPort 1.4a (up to 7680x4320@60Hz) |
|
| HDMI | 1 x HDMI® Connector* *Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1 Specification |
|
| Power Specifications | ||
| Connectors | 450W |
|
| Recommended PSU | 70W | |
| Display Option | ||
| Multi Display | Quad Display |
|
| Programming Interfaces | ||
| DirectX | 12 Ultimate |
|
| OpenGL | 4.6 |
|
| Physical Specifications | ||
| Dimensions | 161.9mm x 111.2mm x 40.2mm / 6.37in x 4.38in x 1.58in | |
| Warranty | ||
| Warranty | 3 years |
|

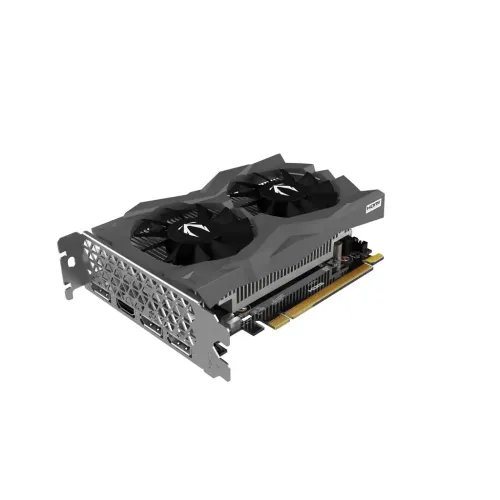

The ZOTAC GAMING GeForce RTX 3050 Twin Edge OC 6GB is an ultra-efficient, entry-level graphics card designed for budget-conscious gamers and those with small-form-factor (SFF) systems. Based on the NVIDIA Ampere architecture, this "OC" variant offers a factory-tuned speed boost while maintaining a remarkably low power profile.
One of the standout features of this 6GB model is its energy efficiency. Unlike its 8GB predecessor, this version is PCIe bus-powered, meaning it draws its entire 70W requirement directly from the motherboard slot.
External Power: No 6-pin or 8-pin power connectors required.
Recommended PSU: A modest 450W power supply is plenty for most builds.
Architecture: 2nd Gen Ray Tracing Cores and 3rd Gen Tensor Cores for DLSS support.
CUDA Cores: 2,304
Boost Clock: Overclocked to 1477 MHz.
Memory: 6GB GDDR6 on a 96-bit memory bus.
Bandwidth: 14 Gbps memory clock speed.
Interface: PCIe 4.0 x8.
Measuring just 161.9mm (6.37 inches) in length, the Twin Edge OC is incredibly compact, fitting into 99% of PC cases, including many Mini-ITX enclosures.

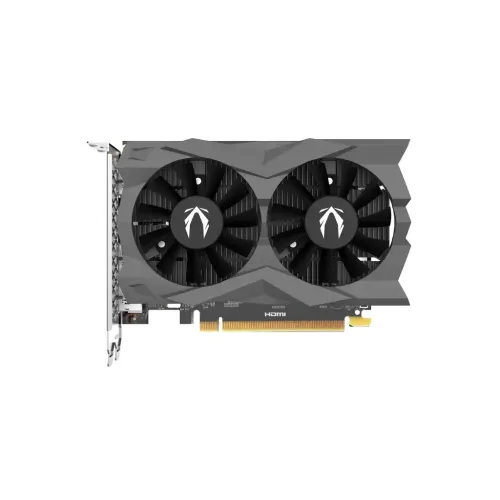

Dual 70mm Fans: Despite its size, it uses a dual-fan setup for consistent cooling.
FREEZE Fan Stop: The fans remain completely silent during idle or light tasks to reduce noise and wear.

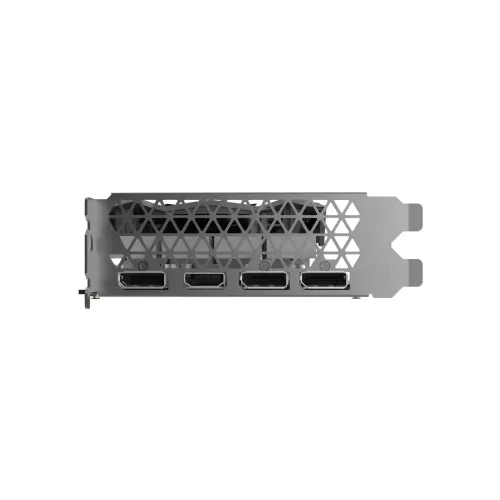

Connectivity: It provides 3x DisplayPort 1.4a and 1x HDMI 2.1, supporting up to quad-display setups and 8K resolution.
This card is the "plug-and-play" king for older office PCs needing a gaming upgrade or for users building a stealthy, low-power home theater PC.
