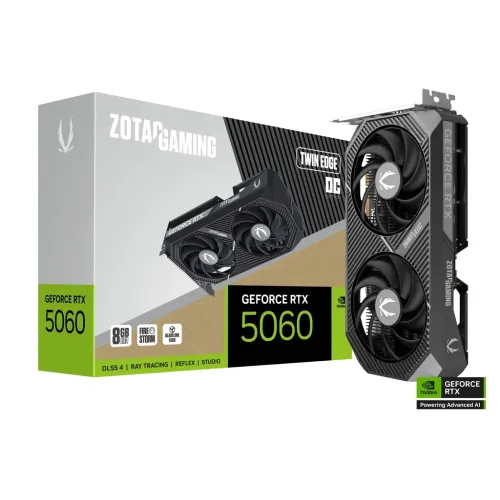

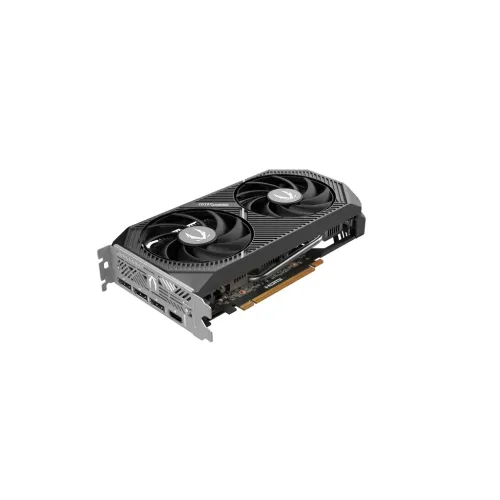

About ZOTAC GAMING GeForce RTX 5060 Twin Edge OC

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a factory-overclocked version of one of the most versatile mid-range cards in the NVIDIA Blackwell lineup. By combining a boosted clock speed with the groundbreaking speed of GDDR7 memory, this card is engineered to dominate high-refresh 1080p and competitive 1440p gaming while maintaining a compact, build-friendly form factor.

The "OC" designation ensures that this card pushes past reference speeds to extract every bit of performance from the architecture:

CUDA Cores: 3,840

Engine Boost Clock: Factory overclocked to 2527 MHz (up from the 2497 MHz base boost).

Video Memory: 8GB of next-gen GDDR7—the new gold standard for memory speed.

Bandwidth: Operating at 28 Gbps on a 128-bit bus, it delivers a massive 448 GB/s of bandwidth, significantly reducing bottlenecks in modern AAA titles.

ZOTAC utilizes its IceStorm 2.0 cooling system to manage the extra heat from the factory overclock:

BladeLink Fans: Dual fans with an optimized blade design increase concentrated airflow.

FREEZE Fan Stop: Ensures near-silent operation by stopping the fans during low-load or idle states.

SFF-Ready: At only 220.5mm (8.7 inches) in length and a standard 2-slot thickness, it is specifically designed to fit into almost any case, including compact Mini-ITX systems.

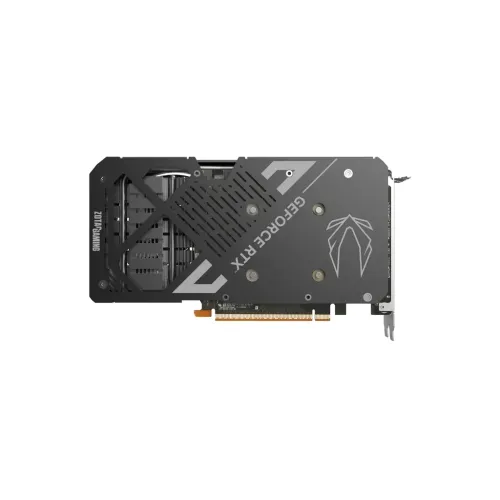

Structural Durability: A wrap-around metal backplate provides a premium feel and prevents the PCB from sagging over time.

Despite its "OC" status, the card remains remarkably efficient with a 145W TDP, requiring only a single 8-pin PCIe connector and a 550W PSU. For connectivity, it is fully updated with 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting high-end displays up to 8K at 165Hz or 4K at 480Hz.
