| Video Memory Specifications | ||
| Type | GDDR6 | |
| Size | 12GB | |
| Resolution | 7680×4320 | |
| Core Clock | Boost mode: 2850 MHz Default mode: 2670 MHz |
|
| BUS Type | 192 bit |
|
| Memory Interface | PCI Express Gen 4 | |
| Others | ARGB lighting for customizable, vibrant visuals Xe-cores: 20 |
|
| Interface | ||
| Display Port | 3x DisplayPort 2.1 | |
| HDMI | 1x HDMI 2.1 | |
| Power Specifications | ||
| Connectors | 8 Pin ATX 12V | |
| Consumption | 190W | |
| Display Option | ||
| Multi Display | 4 | |
| Physical Specifications | ||
| Dimensions | 315 x 128 x 44 mm | |
| Warranty | ||
| Warranty | 3 years Warranty | |
The Maxsun Intel Arc B580 iCraft 12G is a recently released graphics card designed for gaming enthusiasts and creative professionals. It features Intel's Arc B580 GPU, part of the "Battlemage" architecture, and is equipped with 12GB of GDDR6 memory, providing a 192-bit memory interface and a bandwidth of 456 GB/s.

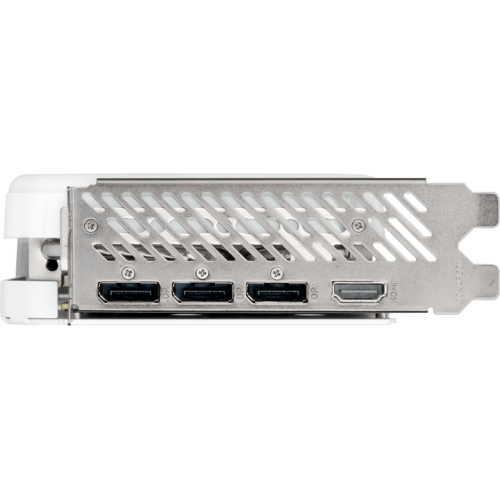

The card operates at a base clock speed of 2670 MHz, boosting up to 2850 MHz, and utilizes a PCIe 4.0 x8 interface. It requires an 8-pin ATX 12V power connector and offers output options including three DisplayPort 2.1 ports and one HDMI 2.1 port, supporting up to 8K resolution.

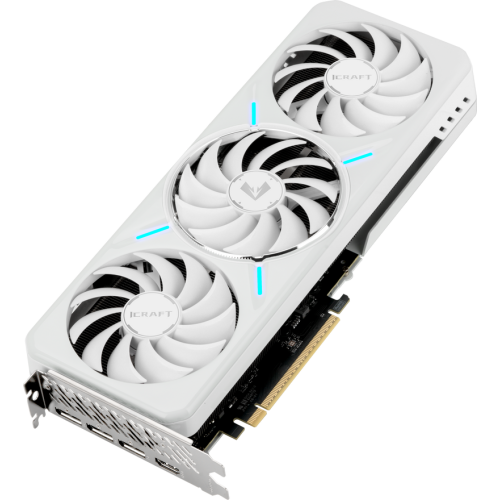

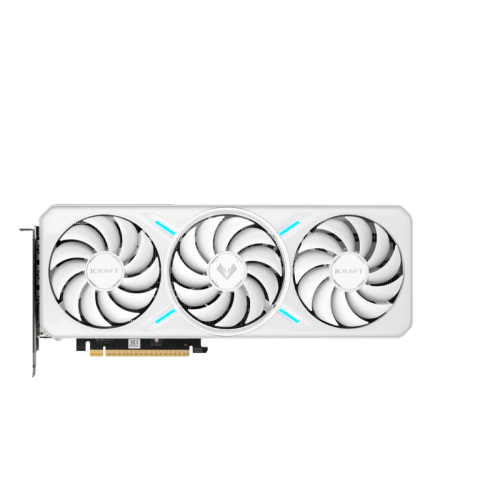

The iCraft 12G model incorporates a triple-fan cooling system with reverse fan technology to enhance airflow and reduce noise. It also features ARGB lighting for customizable aesthetics and a durable iCraft alloy backplate.
Dual Hardware Codecs with Intel Deep Link unlocks higher processor performance for smoother editing and faster exports, significantly boosting streaming, content creation, and more. Supports up to 8K60 12-bit HDR decoding and 8K60 10-bit HDR encoding, with support for AV1, H.265 (HEVC), H.264 (AVC), and VP9 codecs.
Easily create personalized lighting effects, whether it's an intense gaming session or a peaceful, calming movie or creative moment. Users can fully immerse themselves in the experience.
