| Graphics Card | ||
| Type | GDDR7 | |
| Size | 8GB | |
| Resolution | Up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | 2497 MHz | |
| Memory Clock | 28 Gbps | |
| BUS Type | 128-bit | |
| CUDA Cores | 3840 | |
| Display Port | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) |
|
| HDCP Support | 2.3 | |
| Connectors | 1 x 8-pin power input | |
| Recommended PSU | 550W | |
| Consumption | 145W | |
| Multi Display | Quad Display | |
| DirectX Support | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Dimensions | 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6" | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 8-Pin PCIe power connector SFF-Ready compact Graphics Card BladeLink Fans Cooling: Air Cooled |
|
| Warranty | 3 Years | |
The ZOTAC GAMING GeForce RTX 5060 Twin Edge is a masterfully balanced graphics card designed for mainstream gamers who prioritize high frame rates, next-gen AI, and a compact footprint. Powered by the NVIDIA Blackwell architecture, this card represents a massive leap for the 60-class series by being among the first to integrate ultra-fast GDDR7 memory.
The move to GDDR7 memory significantly boosts data throughput, making the RTX 5060 Twin Edge a formidable contender for high-refresh 1080p and competitive 1440p gaming:
CUDA Cores: 3,840
Boost Clock: 2497 MHz
Memory: 8GB GDDR7
Memory Speed: 28 Gbps on a 128-bit bus, delivering a bandwidth of 448 GB/s (a substantial increase over the previous generation's GDDR6).
AI Power: Featuring 5th Gen Tensor Cores and 4th Gen RT Cores, it fully supports DLSS 4 and enhanced ray tracing.

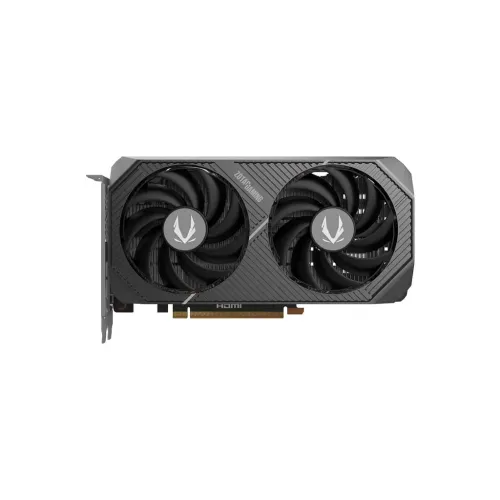

ZOTAC’s IceStorm 2.0 cooling system ensures the card remains stable and quiet under heavy loads. The dual 90mm BladeLink fans feature an interconnected blade design that concentrates airflow directly onto the heatsink.
Compact Dimensions: At just 220.5mm (8.7 inches) in length and a standard 2-slot profile, it is officially designated as SFF-Ready, fitting easily into most Mini-ITX and Micro-ATX cases.

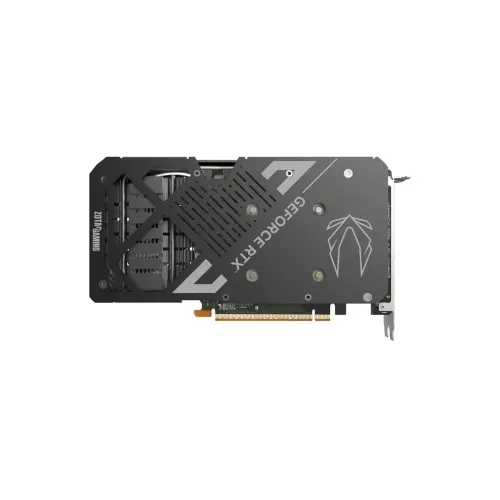

Structural Integrity: A sleek, wrap-around metal backplate provides added durability and protects the internal components.
FREEZE Fan Stop: The card operates in total silence during low-load tasks as the fans stop spinning entirely.

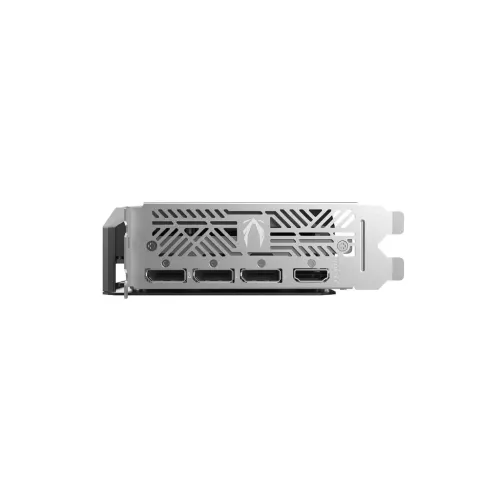

The RTX 5060 Twin Edge is remarkably power-efficient with a 145W TDP, requiring only a single 8-pin PCIe power connector and a 550W PSU. It is equipped with 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting high-end display configurations up to 8K at 165Hz.
