| Graphics Card | ||
| Type | GDDR6 | |
| Size | 8GB | |
| Resolution | up to 4K 480Hz or 8K 165Hz with DSC | |
| Core Clock | 2602 MHz | |
| Memory Clock | 20 Gbps | |
| BUS Type | 128-bit | |
| Memory Interface | PCI Express 5.0 x8 | |
| CUDA Cores | 2560 | |
| Display Port | 3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC) |
|
| HDMI | 1 x HDMI Connector (Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification) |
|
| HDCP Support | 2.3 | |
| Connectors | 1 x 8-pin power input | |
| Recommended PSU | 550W | |
| Consumption | 130W | |
| Multi Display | Quad Display | |
| DirectX Support | Microsoft DirectX 12 Ultimate | |
| OpenGL | 4.6 | |
| Dimensions | 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6" | |
| Others | Powered by the NVIDIA Blackwell architecture and DLSS 4 8-Pin PCIe power connector SFF-Ready Graphics Card Compact dual-fan form factor BladeLink Fans Metal Backplate Slot Size: 2 Supported OS: Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
|
| Warranty | 3 Years | |

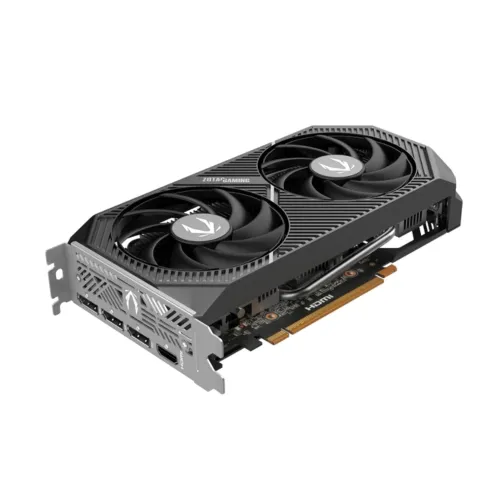

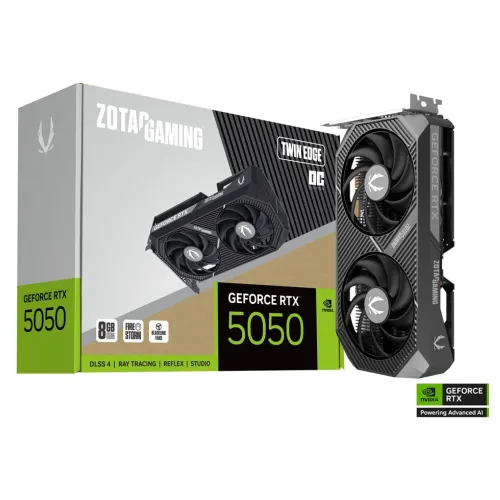

The ZOTAC GAMING GeForce RTX 5050 Twin Edge OC is a factory-overclocked, compact powerhouse designed to deliver a superior 1080p gaming experience with the latest NVIDIA Blackwell architecture. It bridges the gap between pure affordability and high-performance cooling, making it a go-to choice for mainstream PC builds.
The "OC" in its name signifies a factory-tuned speed boost, offering slightly higher frame rates and better stability in demanding scenes compared to the standard edition:
CUDA Cores: 2,560
Boost Clock: Increased to 2602 MHz (up from the base 2572 MHz).
Memory: 8GB GDDR6 on a 128-bit bus.
Memory Speed: 20 Gbps, delivering a solid 320 GB/s of bandwidth.
Interface: Supports PCIe 5.0 x8, ensuring compatibility with the newest motherboard standards for maximum data throughput.
Despite its powerful overclock, the card maintains a small footprint while utilizing ZOTAC’s advanced cooling technology:

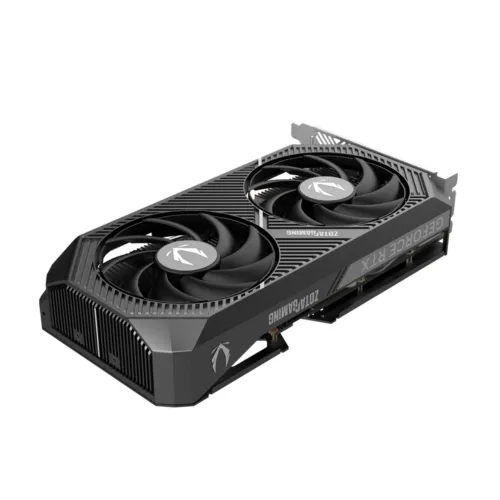

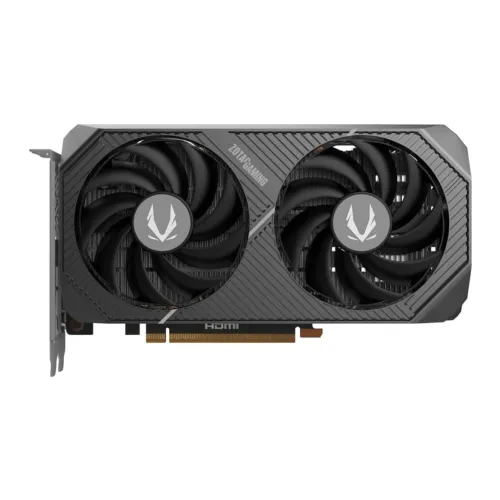

IceStorm 2.0 Cooling: Featuring dual 90mm BladeLink fans, this thermal module is designed to provide wider airflow coverage and deeper heat dissipation.

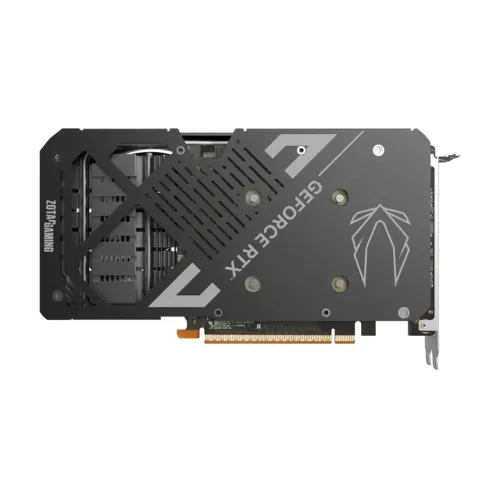

Metal Backplate: A wrap-around metal backplate not only provides a premium look but also adds structural rigidity to prevent PCB bending over time.
Compact Form Factor: Measuring 220.5mm (8.7 inches) and fitting into a 2-slot space, it qualifies as an SFF-Ready card, perfect for everything from Micro-ATX to Mini-ITX cases.

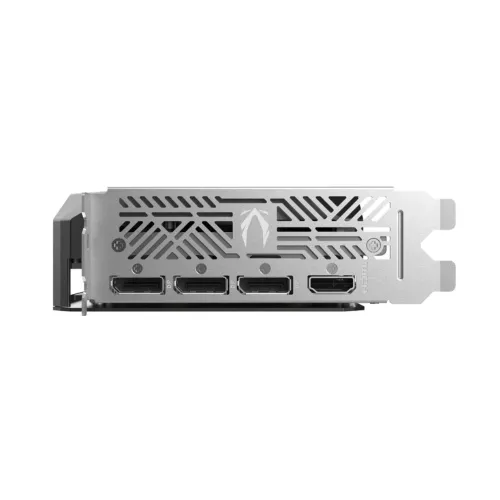

The RTX 5050 Twin Edge OC is highly efficient, with a TDP of 130W. It runs on a single 8-pin PCIe connector and a recommended 550W PSU. For display, it features 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting ultra-high refresh rates up to 4K 480Hz or 8K 165Hz with DSC.
