About ZOTAC GAMING GeForce RTX 5060 SOLO

The ZOTAC GAMING GeForce RTX 5060 SOLO is a masterclass in compact engineering, specifically tailored for Small Form Factor (SFF) and Mini-ITX enthusiasts. Utilizing the high-efficiency NVIDIA Blackwell architecture, it brings next-generation features and ultra-fast GDDR7 memory to an entry-to-midrange footprint that fits in 99% of PC builds.

The SOLO is defined by its incredibly small physical presence. It is designed for builders who need full desktop power in "shoebox" style cases or ultra-portable rigs:

Length: Just 164.5mm (6.5 inches), making it one of the most compatible cards in the 50-series lineup.

Slot Size: A strict 2-slot design (36.4mm thickness) ensures it doesn't crowd other PCIe components.

Cooling: A single high-pressure BladeLink fan works in tandem with an optimized heatsink to maintain stable thermals despite the limited surface area.

Under the hood, the RTX 5060 SOLO is a significant upgrade over its 40-series predecessor, particularly in memory bandwidth:

CUDA Cores: 3,840

Memory: 8GB GDDR7 (the first 60-class card to use this high-speed standard).

Clock Speeds: A boost clock of 2497 MHz.

Bandwidth: 28 Gbps memory speed on a 128-bit bus, providing a massive 448 GB/s of bandwidth—a huge jump for 1080p and 1440p textures.

Efficiency remains a priority, with the card drawing a maximum of 145W. It requires a single 8-pin PCIe power connector and a recommended 550W PSU.

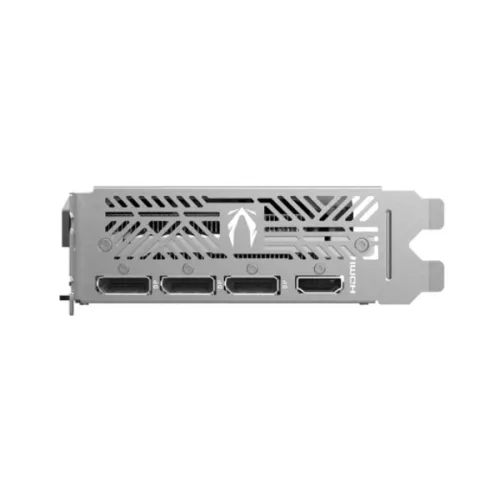

Display Ready: Features 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting the latest 8K 165Hz displays.

AI & Ray Tracing: Supports DLSS 4 and 4th Gen Ray Tracing cores, allowing it to deliver "neural rendering" performance that was previously reserved for much larger, more expensive GPUs.
