| BASIC INFORMATION | ||
| Chipset | AMD: B650E | |
| Graphics | Integrated AMD RDNA 2 graphics: Supported HDMI 2.1 TMD Compatible: 1 HDR: Supported HDCP 2.3: max. resolution up to 4K 60Hz | |
| Memory | DIMM Slots: 4, DDR5 only Max Memory Support: 128GB Memory Architecture: Dual-Channel OC Frequency: DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. Extreme Memory Profile (XMP): Supported Extended Profiles for Overclocking (EXPO): Supported | |
| Processor | Supports AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 Series Processors | |
| Storage | M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode): 1 M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode): 1 SATA 6Gb/s ports: 4 RAID 0/1/10 for SATA storage devices: Supported RAID 0/1/10 for M.2 NVMe storage devices: Supported NVMe SSD as boot disks: Supported | |
| Audio | Realtek:ALC1220 Codec | |
| General | Model: N7-B65XT-W1 Color: White Form Factor: ATX System Requirements: NZXT CAM software requires Microsoft Windows® 11/10 operating system. | |
| Case Features | ||
| Expansion Slots | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks) PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode: 2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module: 1 | |

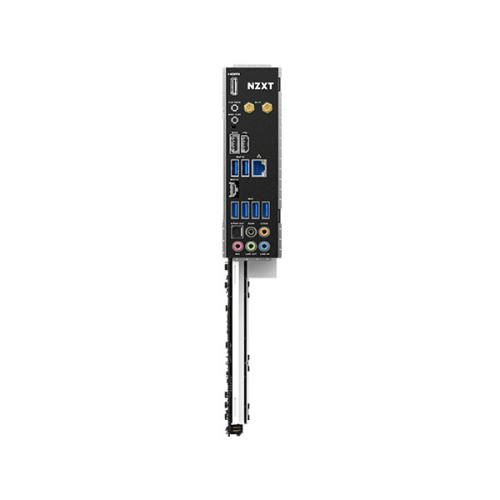

| I/O Port | 24-pin ATX power connector: 1 8+4-pin ATX 12V power connector: 1 4-pin CPU_FAN connector: 1 4-pin AIO_PUMP connector: 1 4-pin SYS_FAN connectors: 5 NZXT RGB LED connectors: 4 5V ARGB LED connector: 2 USB 2.0 header (Up to 6 USB 2.0 ports): 3 USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports): 2 USB 3.2 Gen2x2 front panel header (For USB Type-C): 1 Front panel audio connector: 1 Power button: 1 Reset button: 1 POST LEDs: 4 Wireless antenna SMA connectors: 2 HDMI port: 1 USB 2.0:2 USB 3.2 Gen 2 Type-C port: 1 USB 3.2 Gen 2 ports: 2 USB 3.2 Gen 1 ports: 4 Clear CMOS button: 1 BIOS Flashback button: 1 LAN (RJ45) port: 1 Audio jacks: 5 Optical S/PDIF Out port: 1 | |
| Network & Wireless Connectivity | ||
| LAN | Realtek: RTL8125BG 2.5G LAN | |
| WARRANTY INFORMATION | ||
| Warranty | 3-Year Brand Warranty | |
NZXT N7 B650E AM5 ATX Gaming Motherboard - White is designed to fully support AMD Ryzen 9000, 8000, and 7000 Series Processors. With the AMD B650 chipset at its core, this motherboard enhances compatibility and provides everything you need for a reliable, high-performance setup. The N7 B650E includes essential features like digital RGB and fan control, Wi-Fi 6E, and straightforward customization through NZXT CAM software. Customizing your build is simple with NZXT CAM, which lets you easily adjust lighting and cooling settings. The N7 B650E offers six RGB lighting channels, giving you full control to mix and match lighting from different manufacturers to create a unique look that reflects your style. The NZXT CAM also makes it easy to configure fan speeds, ensuring efficient cooling and silent operation.
This motherboard also delivers powerful memory support with four DIMM slots dedicated to DDR5 memory, allowing a maximum capacity of 128GB in a dual-channel setup. With Extended Profiles for Overclocking (EXPO), the N7 B650E lets you push your memory performance to handle resource-intensive applications with ease. Built with efficiency and aesthetics in mind, the N7 B650E has a clean, metal cover available in black or white, hiding internal components for a neat look. Expanded heat fins efficiently cool the PCIe Gen 5 NVMe drive slot, keeping the system stable even under heavy use. This attention to design and functionality helps maintain optimal system performance over time. The motherboard’s connectivity features include built-in Wi-Fi 6E, a pre-installed rear I/O shield, and thoughtfully placed ports, making installation smooth and leaving ample room for future upgrades. Engineered with a 16+2+1 power phase design and 90A Smart Power Stage, the N7 B650E ensures stable power delivery to your components, supporting both longevity and performance.
Backed by a 3-year brand warranty, the NZXT N7 B650E AM5 ATX Gaming Motherboard - White is a strong choice for those seeking a high-performance and aesthetically pleasing motherboard. Its blend of advanced features, ease of customization, and durable design make it ideal for gaming or workstation builds.
