| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot ** Specifications vary by CPU types. *** PCIEX16_3 shares bandwidth with M.2_3 slot. When M.2_3 runs at PCIe x4 mode, PCIEX16_3 will be disabled. AMD Ryzen 7000 Series Desktop Processors 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | 3 x M.2 slots | |
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x HDMI port** 1 x USB Type-C port supports DisplayPort output*** * Graphics specifications may vary between CPU types. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Support max. 8K@60Hz as specified in DisplayPort 1.4. DisplayPort resolution support depends on graphic cards’ resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port | 1 x USB Type-C, shared with DisplayPort graphic output | |
| LAN | 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Audio | 5 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. ** Specifications vary by CPU types. *** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)** 4 x SATA 6Gb/s ports ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled. |
|

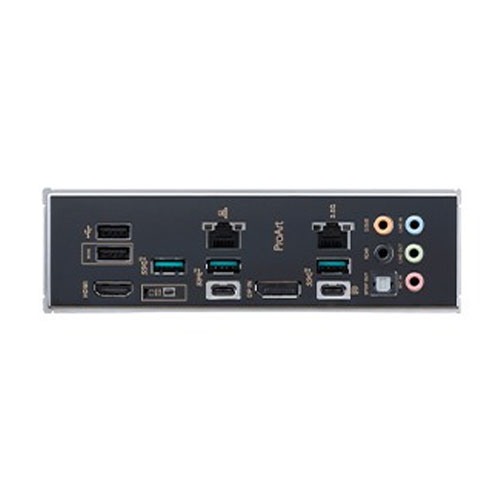

| Internal I/O Ports | Internal I/O Connectors I/O ConnectorsFan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort (Input only) 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet 1 x Realtek 1Gb Ethernet 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button |
|
| USB Port | Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) CreationFirst Norton Anti-virus software (Free Trial version) ProArt Creator Hub WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

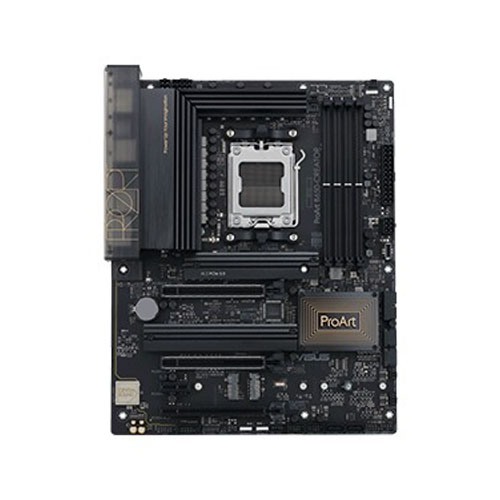

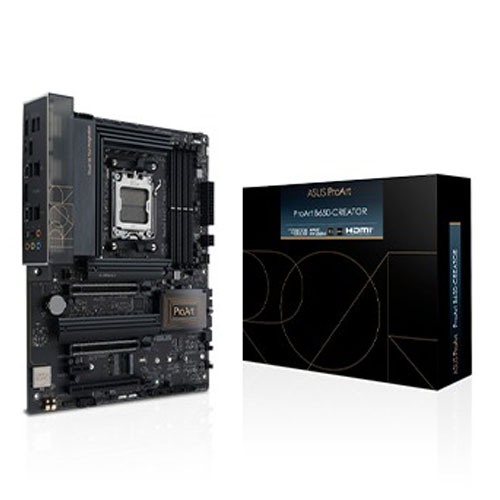

The ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard is a cutting-edge motherboard designed to meet the demanding needs of content creators, professionals, and enthusiasts alike. Engineered with AMD Socket AM5 compatibility, it supports the latest AMD Ryzen 7000 Series and 8000 Series Desktop Processors, offering unparalleled performance and efficiency. Featuring an AMD B650 chipset and a robust BIOS with 256 Mb Flash ROM, this motherboard delivers exceptional stability and reliability for intensive workloads. Its ATX form factor ensures compatibility with a wide range of PC cases, while its dimensions of 12 inches x 9.6 inches provide ample space for expansion and customization. One of the standout features of the ASUS ProArt B650-CREATOR motherboard is its advanced audio capabilities. Equipped with a Realtek 7.1 Surround Sound High Definition Audio CODEC, it delivers immersive audio experiences for both entertainment and professional applications. With support for jack-detection, multi-streaming, and front panel jack-retasking, users can enjoy high-quality audio output with ease. In terms of expansion slots, this motherboard offers ample connectivity options for additional components and peripherals. With two PCIe 4.0 x16 slots (supporting x16 or x8/x8 modes) and one PCIe 4.0 x16 slot (supporting x4 mode), users can install multiple graphics cards or expansion cards for enhanced performance and functionality. Additionally, three M.2 slots and four SATA 6Gb/s ports provide plenty of storage options for storing large files and media content. The ASUS ProArt B650-CREATOR motherboard also features comprehensive connectivity options, including HDMI, DisplayPort, USB Type-C, and Ethernet ports. With ASUS 5X PROTECTION III, ASUS Thermal Solution, and ASUS EZ DIY features, this motherboard ensures reliable operation, efficient cooling, and hassle-free installation for users of all skill levels.
ASUS ProArt B650-CREATOR Motherboard Features
ASUS ProArt B650-CREATOR Price In BD
Explore the latest price of the ASUS ProArt B650-CREATOR AM5 DDR5 ATX Motherboard at PC House in Bangladesh. This high-performance motherboard is designed to meet the demands of professional creators, offering advanced features and reliable performance for a wide range of applications. Whether you're building a workstation for office use, industrial applications, or home entertainment, the ASUS ProArt B650-CREATOR delivers exceptional performance and reliability. Check out the BD price and elevate your PC build with this cutting-edge motherboard.
