| BASIC INFORMATION | ||
| Chipset | AMD: B650E | |
| Graphics | Integrated AMD RDNA 2 graphics: Supported HDMI 2.1 TMD Compatible: 1 HDR: Supported HDCP 2.3: max. resolution up to 4K 60Hz | |
| Memory | DIMM Slots: 4, DDR5 only Max Memory Support: 128GB Memory Architecture: Dual-Channel OC Frequency: DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. Extreme Memory Profile (XMP): Supported Extended Profiles for Overclocking (EXPO): Supported | |
| Processor | Supports AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 Series Processors | |
| Storage | M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode): 1 M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode): 1 SATA 6Gb/s ports: 4 RAID 0/1/10 for SATA storage devices: Supported RAID 0/1/10 for M.2 NVMe storage devices: Supported NVMe SSD as boot disks: Supported | |
| Audio | Realtek:ALC1220 Codec | |
| General | Model: N7-B65XT-B1 Color: Black Form Factor: ATX System Requirements: NZXT CAM software requires Microsoft Windows® 11/10 operating system. | |
| Case Features | ||
| Expansion Slots | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks) PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode: 2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module: 1 | |
| Projector Features | ||

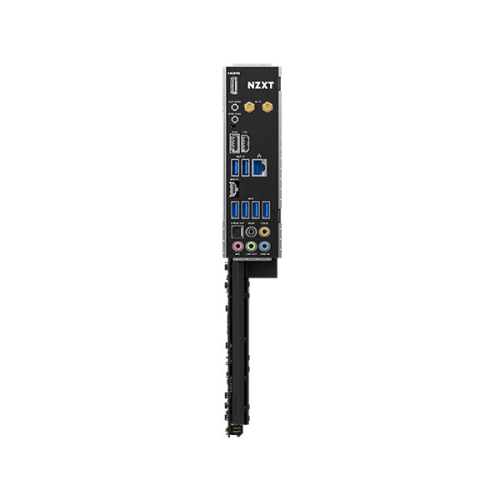

| I/O Interface | Wireless antenna SMA connectors: 2 HDMI port: 1 USB 2.0:2 USB 3.2 Gen 2 Type-C port: 1 USB 3.2 Gen 2 ports: 2 USB 3.2 Gen 1 ports: 4 Clear CMOS button: 1 BIOS Flashback button: 1 LAN (RJ45) port: 1 Audio jacks: 5 Optical S/PDIF Out port: 1 | |
| Connectors | ||
| Wireless | 802.11ax Wi-Fi 6E Module: Supported Bluetooth: V5.2 | |
| Connector & Ports | ||
| Internal I/O Ports | 24-pin ATX power connector: 1 8+4-pin ATX 12V power connector: 1 4-pin CPU_FAN connector: 1 4-pin AIO_PUMP connector: 1 4-pin SYS_FAN connectors: 5 NZXT RGB LED connectors: 4 5V ARGB LED connector: 2 USB 2.0 header (Up to 6 USB 2.0 ports): 3 USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports): 2 USB 3.2 Gen2x2 front panel header (For USB Type-C): 1 Front panel audio connector: 1 Power button: 1 Reset button: 1 POST LEDs: 4 | |
| WARRANTY INFORMATION | ||
| Warranty | 3-Year Brand Warranty | |

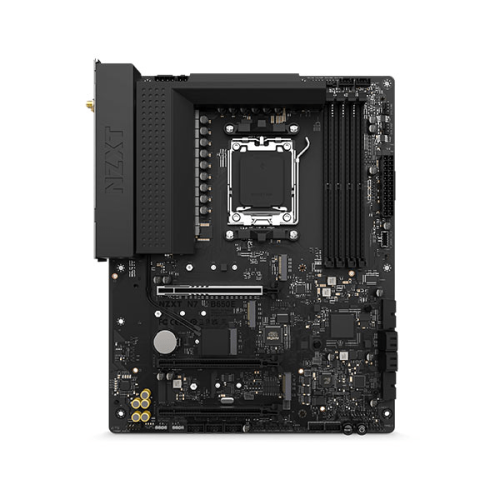

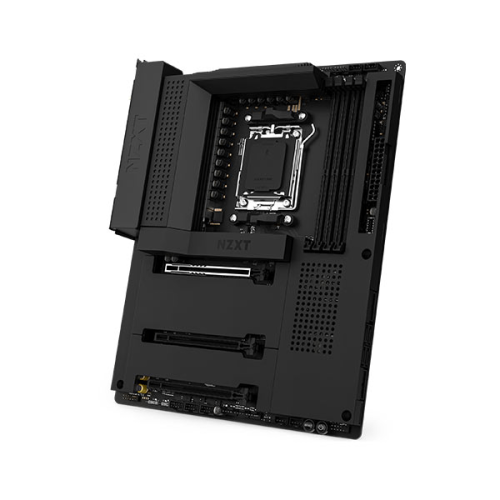

The NZXT N7-B65XT-B1 motherboard combines cutting-edge technology with a sleek black ATX form factor, making it an excellent choice for gamers and PC enthusiasts. Compatible with AMD's latest Socket AM5 processors, including the Ryzen 9000, 8000, and 7000 series, this motherboard features the robust B650E chipset, ensuring optimal performance and future-proofing for high-end applications.
Memory support is a highlight of the N7-B65XT-B1, featuring four DIMM slots dedicated to DDR5 RAM with a maximum capacity of 128GB. Overclocking enthusiasts will appreciate the capability to push memory speeds beyond 7200 MHz, with support for Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO).
For expansion, the board includes a PCIe 5.0 ×16 slot, as well as multiple PCIe 4.0 slots for additional graphics cards or NVMe SSDs. It supports a variety of storage options, including three M.2 slots and four SATA ports, all compatible with RAID configurations to enhance data redundancy and speed.
Networking capabilities are powered by a Realtek 2.5G LAN and integrated Wi-Fi 6E, ensuring fast and stable connectivity. The audio experience is enhanced by the Realtek ALC1220 codec, providing crisp sound for gaming and multimedia.The rear I/O panel is well-equipped with a range of USB ports, HDMI output, and audio jacks, making connectivity straightforward. Built-in RGB LED connectors allow for customizable lighting, complementing any build aesthetic.
With a 3-year warranty and NZXT CAM software support for Windows 11/10, the N7-B65XT-B1 is a versatile and reliable choice for anyone looking to build a powerful, modern PC.
