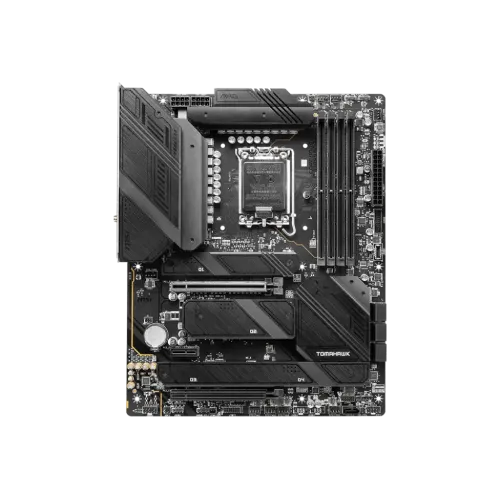

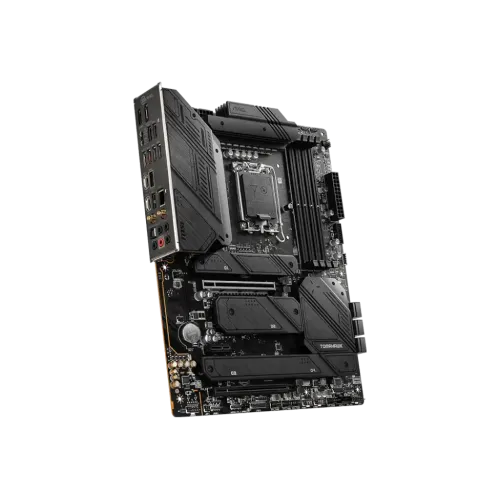

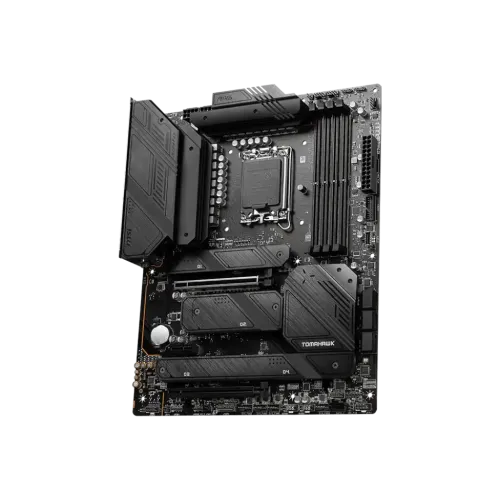

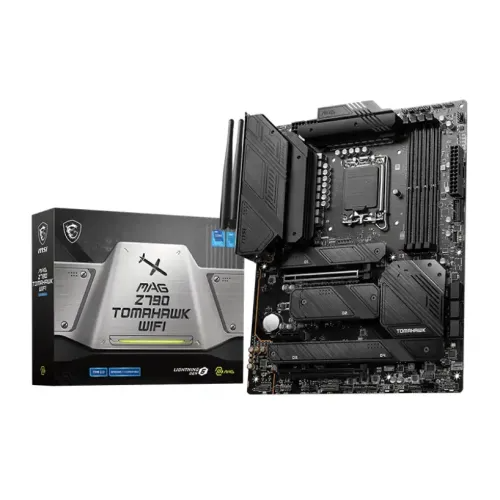

/MAG Z790 TOMAHAWK WIFI/mag-z790-tomahawk-wifi-01-500x500.png "MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard")
/MAG Z790 TOMAHAWK WIFI/mag-z790-tomahawk-wifi-02-500x500.png "MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard")
/MAG Z790 TOMAHAWK WIFI/mag-z790-tomahawk-wifi-03-500x500.png "MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard")
/MAG Z790 TOMAHAWK WIFI/mag-z790-tomahawk-wifi-04-500x500.png "MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard")
/MAG Z790 TOMAHAWK WIFI/mag-z790-tomahawk-wifi-05-500x500.png "MSI MAG Z790 TOMAHAWK WIFI 12th and 13th Gen ATX Motherboard")
| Basic Information | ||
| Chipset | Intel Z690 Chipset | |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700 |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 slots | |
| MEMORY SPECIFICATIONS | ||
| Type | DDR5 | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* |
|

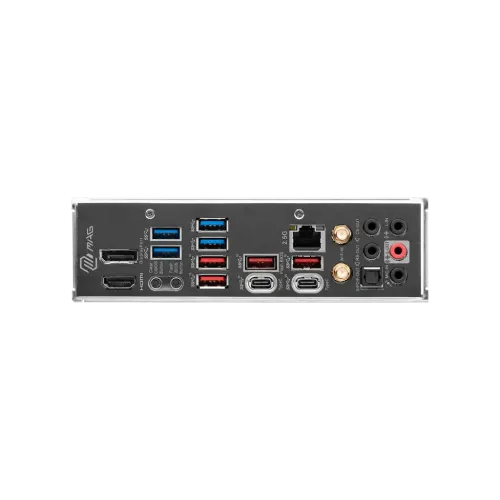

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port | 1x DisplayPort 1.4 | |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN | Intel 2.5Gbps LAN | |
| Wireless | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |
The MSI MAG Z790 TOMAHAWK WIFI is a high-performance ATX motherboard built to support the latest 12th and 13th Gen Intel Core processors with LGA1700 socket. Designed with the Intel Z690 chipset, this motherboard offers exceptional processing power, cutting-edge features, and extensive connectivity options for gaming enthusiasts, content creators, and power users alike.One of the key highlights of the MAG Z790 TOMAHAWK WIFI is its support for DDR5 memory, delivering lightning-fast data transfer rates and increased overall system performance compared to DDR4. With four DIMM slots supporting a wide range of frequencies up to 7200+ MHz (OC), users can experience seamless multitasking and smoother computing experiences.The motherboard's graphics capabilities are impressive, featuring an HDMI 2.1 port that supports HDR and a maximum resolution of 4K at 60Hz, as well as a DisplayPort supporting DP 1.4 and a maximum resolution of 8K at 60Hz. This ensures users can enjoy immersive visuals and stunning graphics on their high-resolution displays.Connectivity options are abundant, including multiple USB 2.0, USB 3.2 Gen1 Type A, and USB 3.2 Gen2 Type A and Type C ports for various peripherals. The Intel 2.5Gbps LAN and pre-installed Intel Wi-Fi 6E module offer ultra-fast and reliable networking capabilities, supporting up to 2.4Gbps and 160MHz bandwidth in 2.4GHz/5GHz/6GHz frequencies, along with Bluetooth 5.3 for seamless wireless connections.The MAG Z790 TOMAHAWK WIFI provides ample storage options with four M.2 slots and seven SATA 6G ports, accommodating high-speed NVMe storage devices and traditional SATA drives. Users can configure RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage, offering data redundancy and performance optimization.The Realtek ALC4080 Codec delivers 7.1-channel USB high-performance audio with S/PDIF output, ensuring crystal-clear sound quality for gaming, music, and entertainment.With its ATX form factor, the motherboard offers expandability and compatibility with a wide range of PC cases and components. The 3-year warranty provides added assurance of its quality and reliability.The MSI MAG Z790 TOMAHAWK WIFI ATX motherboard strikes an ideal balance between performance, aesthetics, and cutting-edge features. With support for 12th and 13th Gen Intel Core processors, DDR5 memory, advanced graphics capabilities, and robust connectivity options, this motherboard is an excellent choice for users seeking a future-proofed and powerful foundation for their high-end gaming rig or workstation. Whether it's for gaming, content creation, or demanding multitasking, this motherboard is built to deliver a seamless and exceptional computing experience.
