| BASIC INFORMATION | ||
| Chipset | Intel Z790 | |
| Memory | DIMM Slots: 4, DDR5 only Max Memory Support: 192GB, DDR5 Memory Architecture: Dual-Channel OC Frequency: 7200+(O.C.). Please refer to memory QVL. Intel Extreme Memory Profile (XMP) 3.0: Supported |
|
| Processor | Socket LGA 1700 for Intel 14th, 13th, and 12th Generation Core i9/ Core i7/ Core i5 Processors Intel Core Processors. Please refer to the CPU support list. Intel Hybrid Technology: Supported Turbo Boost Max 3.0 Technology: Supported Intel Thermal Velocity Boost (TVB): Supported Intel Adaptive Boost Technology (ABT): Supported |
|
| Storage | M.2_1, Type 2242/2260/2280 (PCIe 4.0 ×4 mode): 1 M.2_2, Type 2242/2260/2280/22110 (PCIe 4.0 ×4 mode): 1 M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode): 1 SATA 6Gb/s ports: 4 Intel Volume Management Device (VMD): Supported NVMe SSD as boot disks: Supported |
|
| General | Model: N7-Z79XT-W1 Color: White Form Factor: ATX System Requirements: Windows 11/10 64-bit |
|
| Network & Wireless Connectivity | ||
| LAN | Realtek: RTL8125BG 2.5G LAN | |
| Memory | ||
| Slots | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode: 1 (Supports NVMe SSD as boot disks) PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×4 mode: 2 (Supports NVMe SSD as boot disks) PCIe 3.0 ×1 slots (PCIEX1_1 and PCIEX1_2)*: 2 (Supports NVMe SSD as boot disks) M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel CNVio/CNVio2: 1 |
|
| Connector & Ports | ||
| Internal I/O Ports | 24-pin ATX power connector: 1 8+4-pin ATX 12V power connector: 1 4-pin CPU_FAN connector: 1 4-pin AIO_PUMP connector: 1 4-pin SYS_FAN connectors: 5 NZXT RGB LED connectors: 4 5V ARGB LED connector: 2 USB 2.0 header (Up to 4 USB 2.0 ports): 2 USB 3.2 Gen1 header (Up to 2 USB 3.2 Gen 1 ports): 1 USB 3.2 Gen2x2 front panel header (For USB Type-C): 1 Front panel audio connector: 1 Power button: 1 Reset button: 1 POST LEDs: 4 |
|
| WARRANTY INFORMATION | ||
| Warranty | 3-Year Brand Warranty | |

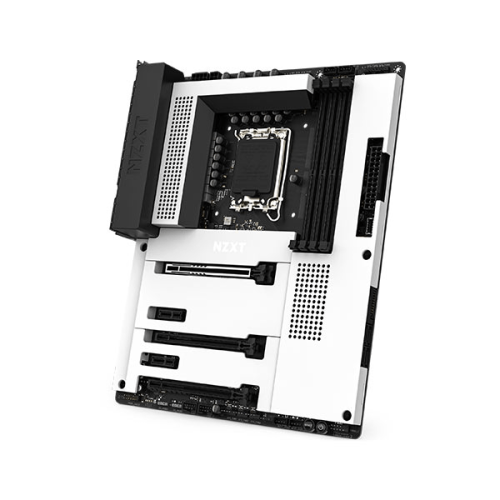

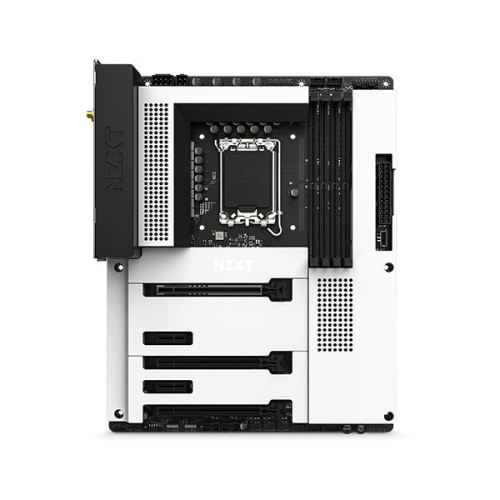

The NZXT N7-Z79XT-W1 motherboard is a striking white ATX board designed for high-performance builds. It supports Intel’s latest Socket LGA 1700 processors, including the 14th, 13th, and 12th generation Core i9, i7, and i5 chips, leveraging the Intel Z790 chipset for robust performance.
Equipped with four DDR5 DIMM slots, the N7-Z79XT-W1 supports up to 192GB of memory in a dual-channel architecture, with overclocking capabilities reaching speeds of 7200 MHz and beyond. The board fully supports Intel Extreme Memory Profile (XMP) 3.0, making it ideal for enthusiasts looking to maximize memory performance.
The expansion options are impressive, featuring a PCIe 5.0 ×16 slot for cutting-edge graphics cards and multiple PCIe 4.0 and 3.0 slots for additional expansion cards and NVMe SSDs. The motherboard includes several M.2 slots, enabling high-speed storage solutions and supporting NVMe SSDs as boot drives.
Connectivity is enhanced with Realtek 2.5G LAN, dual-band Wi-Fi 6E, and Bluetooth 5.3, ensuring fast and reliable networking capabilities. The audio experience is driven by the Realtek ALC1220 codec, delivering high-quality sound for gaming and media.

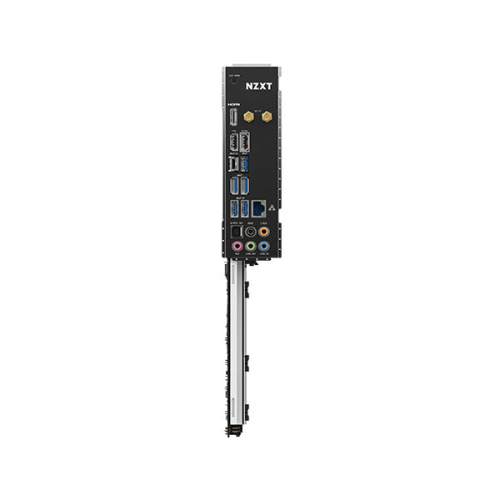

The rear I/O panel provides a variety of ports, including USB 3.2 Gen 2x2 Type-C, HDMI output, and multiple USB 2.0 and 3.2 ports, along with audio jacks for comprehensive connectivity options.
With integrated RGB LED connectors for customizable lighting and a user-friendly design, the NZXT N7-Z79XT-W1 is an excellent choice for gamers and content creators looking to build a stylish and powerful system, backed by a 3-year warranty for peace of mind.
