| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | 5 X 3.5 Mm 1 X S/PDIF |
|
| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4 Ryzen Processors (3000, 4000, And 5000 Series Processors) | |
| Form Factor | ATX | |
| Memory | ||
| Slots | 1 X PCIe 4.0 X16 1 X PCIe 3.0 X16 (X4 Mode) 2 X PCIe 3.0 X1 |
|
| Memory | Memory Slots 4 X 288-Pin Memory Support DDR4 2133, 2400, 2667, 2933, 3200, 4666, 4733 MHz Maximum Capacity 128 GB Channel Architecture Dual Channel ECC Support Non-ECC, ECC Unbuffered |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI 2.1 | |
| LAN | Realtek® RTL8125BG 2.5G | |
| Supported Storage | SATA 6 X SATA III M.2 1 X M Key 2242, 2260, 2280 (PCIe 4.0 X4) 1 X M Key 2242, 2260, 2280 (PCIe 3.0 X2, SATA (Unspecified)) U.2 None RAID Support RAID 0, 1, 5, 10 |
|
| Internal I/O Ports | Expansion Slots 1 X PCIe 4.0 X16 1 X PCIe 3.0 X16 (X4 Mode) 2 X PCIe 3.0 X1 USB 1 X USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) 1 X USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 3 X USB 2.0 Header (Supports 6 USB Type-A Port) Multi-GPU Support 2-Way AMD CrossFireX Air Cooling 1 X 4-Pin CPU 5 X 4-Pin System Liquid Cooling 1 X 4-Pin Pump Power Connectors 1 X 24-Pin Mainboard 1 X 8-Pin ATX 1 X 4-Pin ATX LED Header 4 X RGB Diagnostics Power, Reset |
|
| USB Port | 1 X USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) 1 X USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 3 X USB 2.0 Header (Supports 6 USB Type-A Port) |
|
| WiFi | Wi-Fi 6E (802.11ax) (MU-MIMO) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

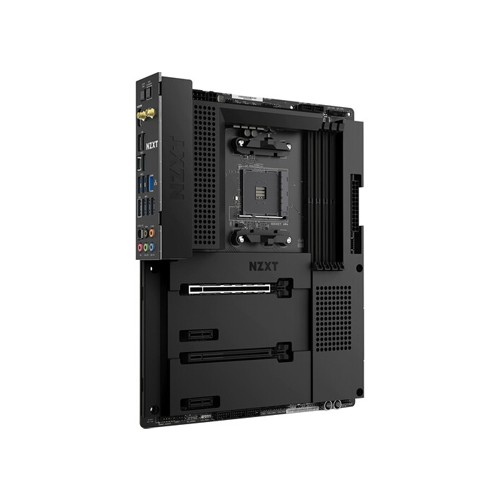

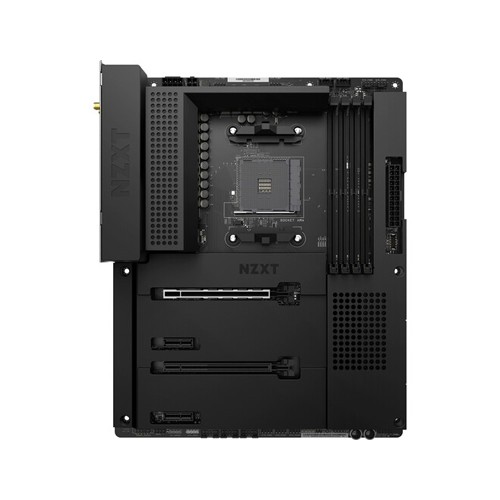

NZXT N7 B550 Matte Black Gaming Motherboard comes with WiFi 6E connectivity. This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B550 chipset. It is compatible with 3rd Gen AMD Ryzen processors (3000, 4000, and 5000 Series Processors). It supports memory overclocking up to 4600+ MHz and XMP. This motherboard has Two M.2 connectors for storage devices. It supports Multi-GPU support with AMD CrossFireX Technology. The board is equipped with Intel Wi-Fi 6E wireless connectivity and Bluetooth V5.2. It offers Digital RGB lighting control through NZXT CAM. Digital fan control for fan profiles within NZXT CAM for seven independent fan channels. It has 8-channel high-definition audio.
Utilizing The AMD B550 Chipset, This Motherboard Is Compatible With 3rd Gen AMD Ryzen Processors Conforming To The AM4 Socket, Including 3000, 4000, And 5000 Series Processors.
Control RGB Lighting And Via NZXT CAM Software.
Control Fan Profiles And Seven Independent Fan Channels With NZXT CAM Software.

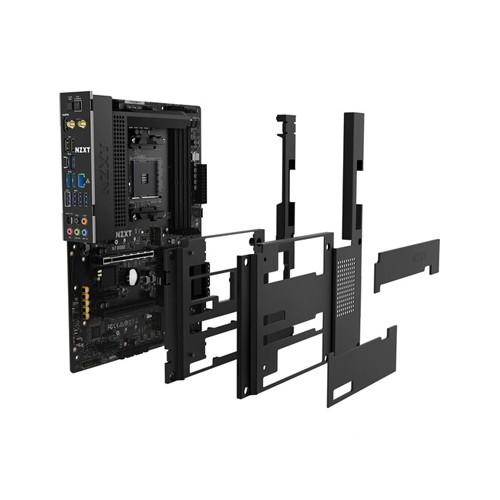

The Integrated Rear I/O Shield And Optimized Layout Make Installation A Breeze.
Wi-Fi 6E And Bluetooth 5.2 Connectivity Ensure Fast Performance. Plus, An RJ-45 Port On The Rear I/O Panel Supports 2.5 Gigabit Ethernet For Fast Wired Internet.
Two M.2 Connectors On The N7 Allow You To Install Up To Two M.2 2242, 2260, Or 2280 SSDs.
Double Down On Gaming Potential By Taking Advantage Of AMD 2-Way CrossFireX Support
Overclock With Ease Thanks To Support For 4600+ MHz RAM And XMP 2.0 Technology.
Supporting 8-Channel Audio, This Motherboard Features Digital And Analog Audio Outputs.
Doubling The Speed Of Its Predecessor, USB 3.2 Gen 2 Features A Maximum Throughput Of 10 Gb/S When Used With Compatible Devices And Is Synonymous With USB 3.1 Gen 2.
USB 3.2 Gen 1 Features A Maximum Throughput Of 5 Gb/S And Is Synonymous With USB 3.2 Gen 1 And USB 3.0.
