| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver. Support for S/PDIF Out |
|
| CPU | AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
|
| Memory | ||
| Memory | Type: Dual Channel DDR4 Memory Technology Slots: 4 x DIMM Supported Memory: Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 64 GB |
|
| Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Graphics | ||
| Graphics | Graphics: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.0 version and HDCP 2.2 Max Shared Memory: 2 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) | |

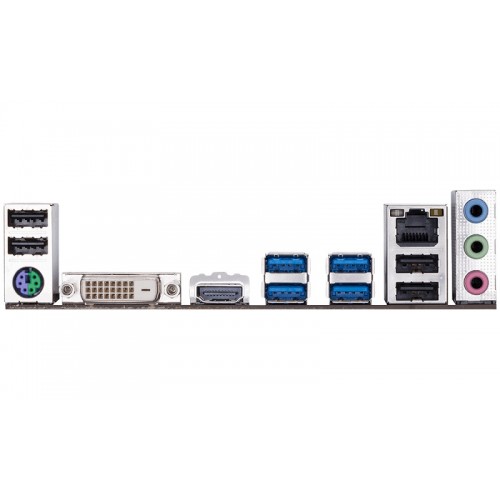

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| USB Port | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |

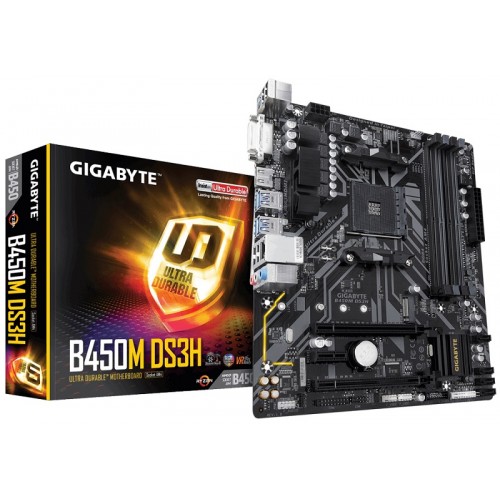

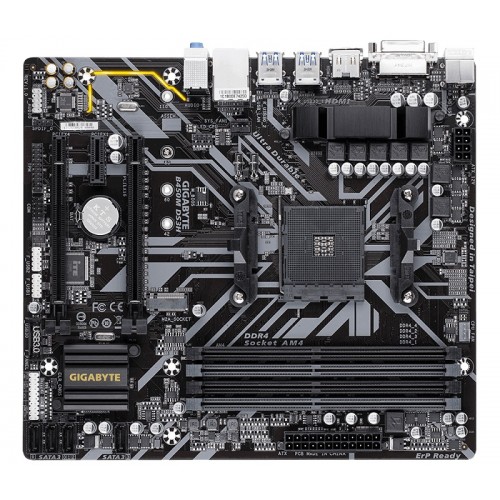

The Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard is a versatile and reliable motherboard designed for AMD Ryzen processors. With its Micro ATX form factor, it offers a compact and space-efficient solution for building powerful and feature-rich systems.The motherboard is powered by the AMD B450 chipset, providing stable and efficient performance. It supports a range of AMD processors, including the Ryzen 2nd Generation, Ryzen with Radeon Vega Graphics, and Ryzen 1st Generation processors. This versatility allows you to choose the CPU that best suits your needs and budget.For audio, the motherboard features the Realtek ALC887 audio codec, delivering high-definition audio with support for 2/4/5.1/7.1-channel setups. To enable 7.1-channel audio, you can use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. It also supports S/PDIF out for digital audio connectivity.In terms of graphics, the motherboard offers a DVI-D port and an HDMI port. The DVI-D port supports a maximum resolution of 1920x1200@60Hz, while the HDMI port supports a maximum resolution of 4096x2160@60Hz. The HDMI port is HDMI 2.0 compatible and supports HDCP 2.2, providing high-quality visuals and support for 4K displays.
Gigabyte B450M DS3H AMD Micro ATX AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode and 3 PCIe slots. Considering the graphics, it will support maximum resolution of 4096x2160@60 Hz for HDMI and 1920x1200@60 Hz for DVI-D ports for Multiple Display. This High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting motherboard has the facility of USB 3.1 Gen 1, RGB Fusion supports RGB LED Strips in 7-Colors and Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software.
GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces* for M.2 SSD devices.
Realtek Gigabit LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard uses ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique
Gigabyte B450M DS3H AM4 AMD Micro ATX Motherboard price in bangladesh is ৳ 9,500.The Gigabyte B450M DS3H AM4 motherboard is a high-quality and feature-rich micro ATX motherboard designed for compatibility with AMD Ryzen™ processors. With its solid build and diverse range of functionalities, this motherboard is an excellent choice for both casual and enthusiast PC builders seeking a reliable foundation for their systems.One of the standout features of the Gigabyte B450M DS3H is its audio capability. Equipped with the Realtek® ALC887 audio codec, it delivers high-definition audio and supports 2/4/5.1/7.1-channel configurations. For users aiming for a 7.1-channel audio setup, an HD front panel audio module is required, along with enabling the multi-channel audio feature through the audio driver. Additionally, the motherboard offers support for S/PDIF Out, enhancing the audio experience further.The motherboard's BIOS utilizes a 128 Mbit flash and operates on the licensed AMI UEFI BIOS platform. It boasts several essential features, including PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring smooth system booting and management.
