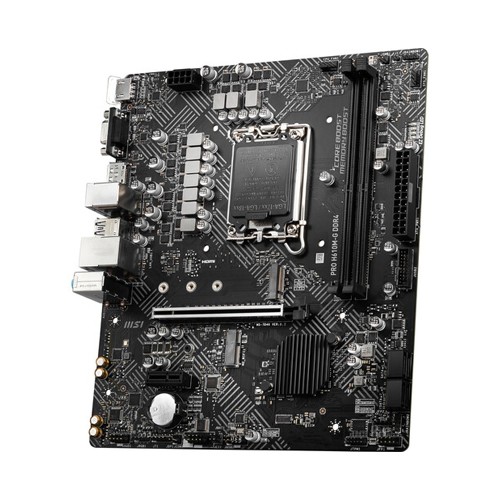

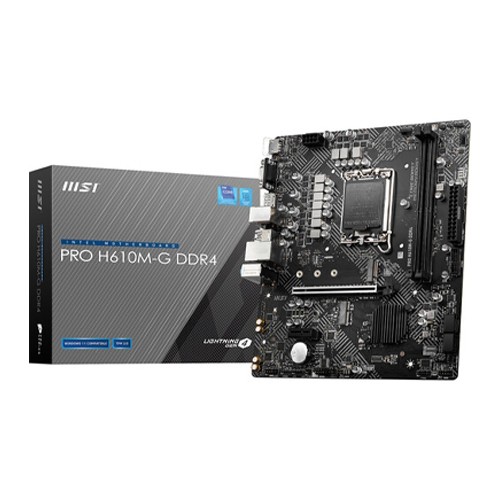

MSI PRO H610M-G DDR4 MICRO-ATX LGA 1700 MOTHERBOARD

MSI PRO H610M-G DDR4 MICRO-ATX LGA 1700 MOTHERBOARD

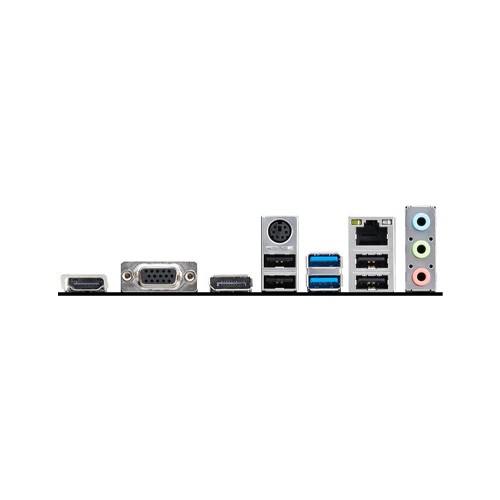

The MSI PRO H610M-G DDR4 Micro-ATX LGA 1700 Motherboard is a feature-rich and reliable motherboard designed to support the 12th Gen Intel® Core™ processors, Pentium® Gold, and Celeron® processors. It is built with the Intel H610 chipset and offers excellent performance and expandability for users looking to build a budget-friendly yet powerful system.The motherboard's compact Micro-ATX form factor (9.29 x 7.95 inches or 23.6 x 20.2 cm) makes it suitable for a wide range of PC cases, including smaller and space-constrained builds. Despite its smaller size, it does not compromise on features, making it ideal for home and office use, as well as entry-level gaming setups.One of the key features of this motherboard is its support for up to 64GB of DDR4 memory across two memory slots, running at speeds of 2133, 2666, 2933, or 3200 MHz, depending on the processor and memory modules used. It also supports dual-channel mode, which can significantly boost memory performance.The graphics capabilities of the MSI PRO H610M-G are robust, with an HDMI 2.1 port supporting a maximum resolution of 4K at 60Hz with HDR, a VGA port supporting resolutions up to 2048x1536 at 50Hz, and a DisplayPort 1.4 supporting 4K at 60Hz. These connections allow users to connect modern displays and enjoy high-definition content or even play some less demanding games.For storage, the motherboard comes with one M.2 slot (Key M) from the chipset, supporting both PCIe 3.0 x4 and SATA 6Gb/s storage devices in sizes of 2242, 2260, and 2280. It also supports Intel® Smart Response Technology for Intel Core processors, enhancing overall system responsiveness.In terms of connectivity, the MSI PRO H610M-G provides a diverse range of I/O ports. It includes USB 3.2 Gen 1 Type-A ports, USB 2.0 ports, an HDMI port with HDR support, a VGA port, DisplayPort, LAN port, and audio connectors, providing users with a multitude of options for connecting peripherals and external devices.The onboard Realtek ALC892/ ALC897 audio codec delivers 7.1-channel high-definition audio, ensuring an immersive audio experience for gaming, multimedia, and communication.The motherboard features one PCIe X16 slot supporting up to PCIe 4.0 x16 for a graphics card and one PCIe X1 slot supporting PCIe 3.0 x1 for additional expansion cards like sound cards or networking adapters.MSI offers a 2-year warranty for this motherboard, providing users with peace of mind and support for their system build.

EZ Debug LED

Onboard LEDs for key components will indicate the source of any problems so you know exactly where to look to get your system up and running again.

Reliable Components

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards.

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

Connectivity

Intel LAN & MSI LAN Manager

Stay connected with Intel LAN, optimized for stable internet throughput ideal for high-level online connections. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive data.

Storage

This motherboard supports a 32 Gb/s M.2 connector and four 6 Gb/s SATA III connectors.

USB 3.2 Gen 1

Transfer lots of data, music, and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear I/O, providing a wide variety of options to connect your USB 3.2 Gen 1 devices.

Performance

Lightning Gen 4 PCIe

MSI lightning Gen 4 PCIe is a data-transfer solution with up to 64 Gb/s of transfer bandwidth. PCIe 4.0 maintains both backward and forward compatibility with older and newer versions. Optimized by the MSI steel armor design, this motherboard can support the weight of heavy graphics cards.

Memory Boost

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. MSI's memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules and configurations.

Core Boost

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only does this support multi-core CPUs, it also creates the ideal conditions for CPU overclocking.

Audio

Enjoy the purest sound quality in both stereo and surround sound thanks to a dedicated high-definition audio processor. High-quality audio capacitors provide a high-fidelity sound experience with exceptional acoustics and realism for studio-level headphones, while the rear I/O features HD Audio Connectors which allow you to keep sound in the ideal ranges thanks to a pure digital signal.

Isolated Audio Signal

Like a dedicated sound card, audio components and circuits have been laid on a reserved motherboard section and electrically isolated. Additionally, using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels.

Features:

• Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket.
• Supports DDR4 Memory, up to 3200(MAX) MHz.
• Core Boost : With premium layout and digital power design to support more cores and provide better performance.
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
• Lightning Fast Experience: PCIe 4.0.
• Audio Boost: Reward your ears with studio grade sound quality.
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
