| Basic Information | ||
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard |
|
| Chipset | AMD B450 | |
| BIOS | 128M UEFI, support multiple languages | |
| Form Factor | M-ATX 197mm x 240mm |
|
| Audio | 5.1-Channel High Definition audio CODEC | |
| Expansion Slots | ||
| PCI | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DIMM | |
| Supported Memory | Support DDR4-3600(OC)/3200/2933/2666/2400MHz memory Support Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology |
|
| Maximum Memory | 32GB | |
| Connector & Ports | ||
| HDMI | 1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution | |
| LAN Port (s) | RTL8125 2.5Gbit LAN | |
| Supported Storage | 1 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, and supports creating RAID 0, RAID 1, RAID 10 disk arrays using SATA hard disk devices - M.2_1 slot: supports 2242/2260/2280 M.2 SSD (PCIe 4.0 x4/SATA, CPU channel) |
|
| Internal I/O Ports | Rear I/O : -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 1.4 interface, Supports up to 4K 30Hz resolution -1×VGA interface -1×PS/2 interface -1×2.5G network interface -3×audio interfaces (audio input/audio output/microphone) On board: -1×CPU fan pin -1×system fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×12V 4-pin RGB pin -1×Front audio pin -1×front panel pin -1×speaker pin -1×Clear CMOS jumper -1×COM port pin -1×BIOS burner pin -1×Debug light pin -1×USB live control jumper |
|
| Warranty Information | ||
| Warranty | 03 years | |

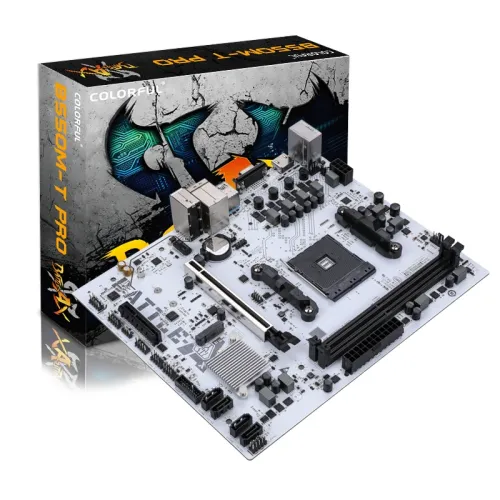

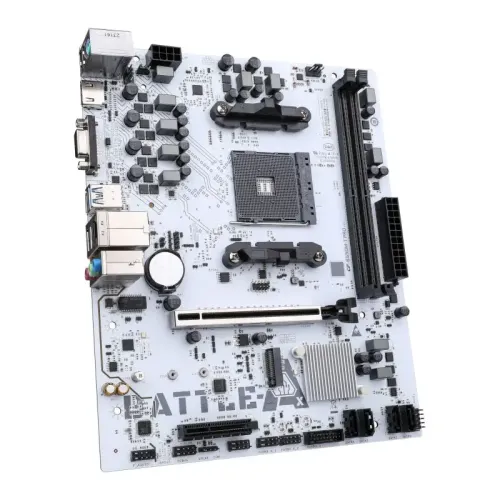

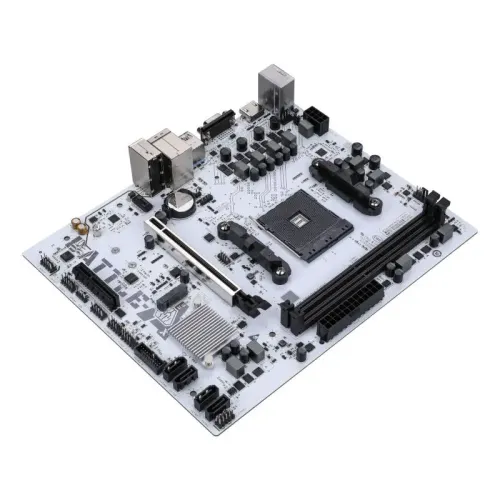

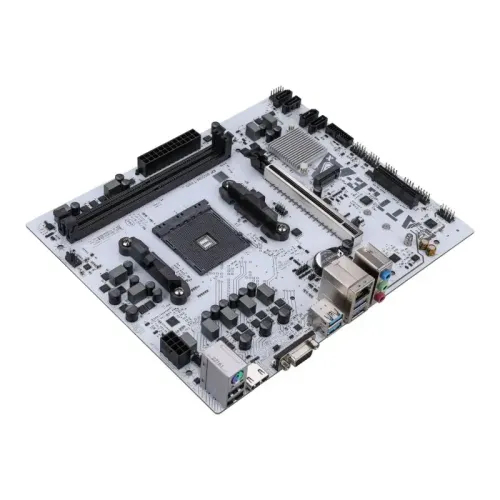

The Colorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard is a reliable motherboard designed for AMD AM4-based desktop PCs. Built around the AMD B550 chipset, it is suitable for compatible Ryzen processors and provides a practical platform for gaming, office work, multitasking, and everyday computing.
Its Micro-ATX (mATX) form factor makes the Colorful BATTLE-AX B550M-T PRO V14 a suitable choice for compact and mid-sized PC builds. It offers a convenient foundation for users looking to build or upgrade an AMD-based desktop while maintaining a balanced combination of features, expandability, and compatibility.
Buy the Colorful BATTLE-AX B550M-T PRO V14 AM4 mATX Motherboard in Bangladesh from PC House BD at a competitive price.
Get specific details about this product from customers who own it.
