| Key Feature | ||
| Certification | 80 PLUS Gold | |
| Efficiency (Approx.) | ≥90% @ Typical Load | |
| Fan Size | 120mm | |
| Modular Type | Non Modular | |
| Features | ||
| Others | FAN BEARING: HDB HOLD UP TIME: ≥15ms at 100% load EPS 4+4 Pin Connectors: 1 EPS 8 Pin Connector: 1 Peripheral 4-Pin Connectors: 3 |
|
| Output | ||
| Total Power | Power Good Signal: 100 - 150 ms | |
| Connectors | ||
| PCI-E | PCI-E 6+2 PIN CONNECTORS x 4 | |
| SATA | 6 | |
| Input | ||
| Current | 12-6A | |
| Frequency Range | 47-63Hz | |
| Voltage | 100-240V | |
| WARRANTY INFORMATION | ||
| Warranty | 5 years | |

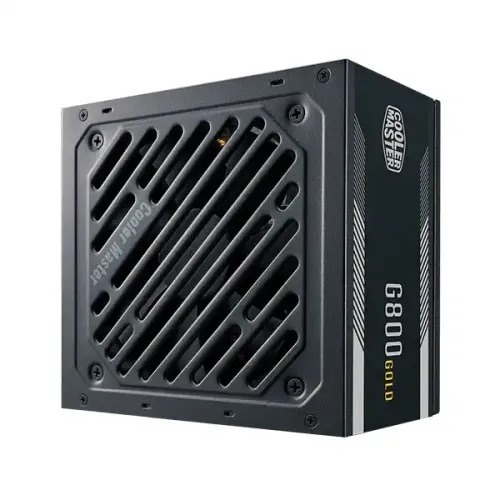

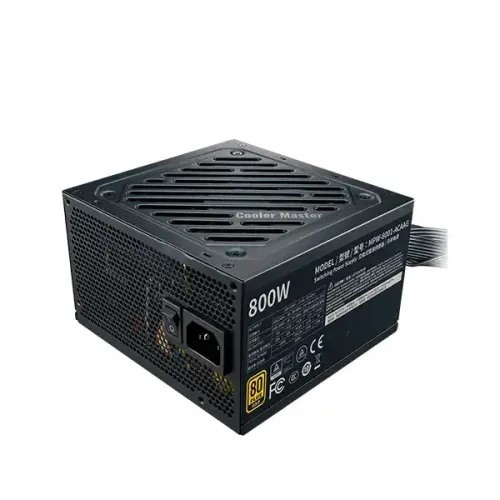

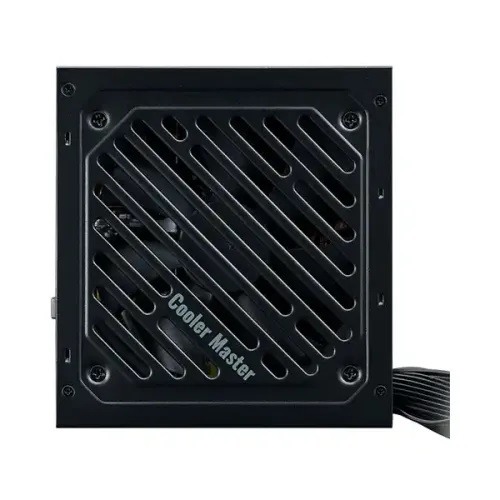

Cooler Master G800 GOLD 800W 80 Plus Gold Power Supply
The Cooler Master G800 GOLD 800W 80 Plus Gold Power Supply is precisely designed to fulfill the needs of high-performance computing, offering a powerful mix of efficiency, dependability, and adaptability. With 80 PLUS Gold certification, this power supply may achieve up to 90% efficiency at average loads, greatly decreasing energy waste and heat emission. This not only reduces power costs, but it also improves system stability and lifetime by reducing temperature stress on components. Built to meet Intel's ATX 12V version 2.52 regulations, the G800 GOLD is intended to handle the most recent improvements in PC hardware, assuring broad compatibility with new-generation motherboards and CPUs. This G800 GOLD power supply has two EPS connections, making it perfect for current multi-core CPUs and high-end motherboards that demand more power to maintain stability and performance. This is especially useful for those using systems with overclocked components or who require stable power delivery under intense workloads. The Cooler Master G800 GOLD comes with a 120mm Hydraulic Dynamic Bearing (HDB) fan, which is noted for its high cooling efficiency and silent operation. The fan speed is dynamically changed based on the temperature of the power supply, delivering maximum cooling performance while reducing noise. The HDB fan technology also extends the fan's life by decreasing friction and wear, ensuring long-term reliability. This G800 GOLD power supply has two EPS connections, making it perfect for current multi-core CPUs and high-end motherboards that demand more power to maintain stability and performance. This is especially useful for those using systems with overclocked components or who require stable power delivery under intense workloads. The Cooler Master G800 GOLD comes with a 120mm Hydraulic Dynamic Bearing (HDB) fan, which is noted for its high cooling efficiency and silent operation. The fan speed is dynamically changed based on the temperature of the power supply, delivering maximum cooling performance while reducing noise. The HDB fan technology also extends the fan's life by decreasing friction and wear, ensuring long-term reliability.
