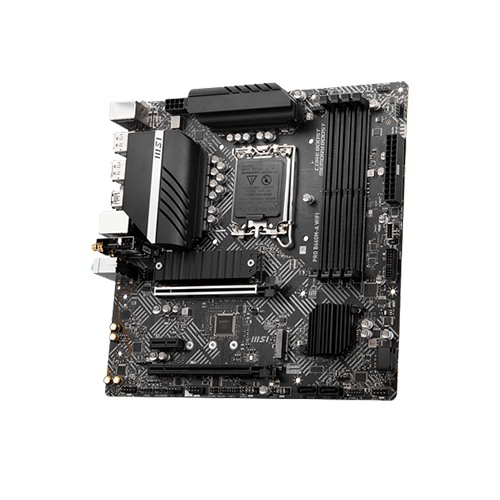

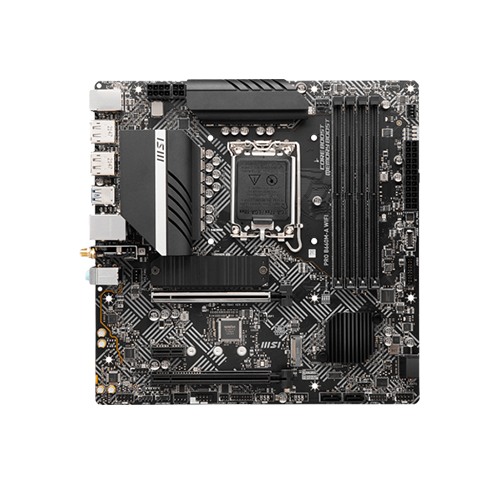

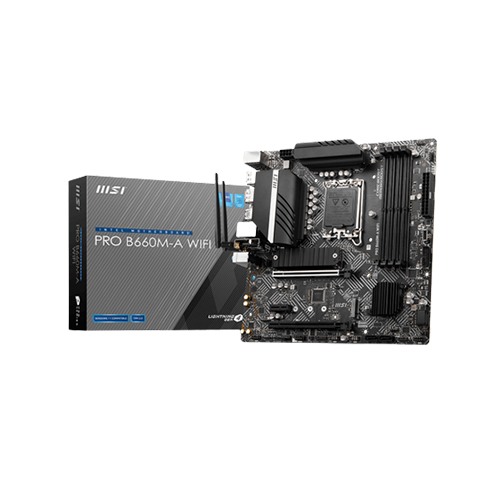

Supported CPU |
Supports 12th Gen Intel Core Processors Processor Socket LGA1700 |
Chipset |
Intel B660 Chipset |
Memory |
4x DDR5 Memory Slots, Support Up To 128GB Supports 1R 4800 MHz (By JEDEC & POR) Max Overclocking Frequency: 1DPC 1R Max Speed Up To 6200+ MHz 1DPC 2R Max Speed Up To 5200+ MHz 2DPC 1R Max Speed Up To 4000+ MHz 2DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
Graphics |
2x HDMI 2.1 With HDR Ports, Supporting A Maximum Resolution Of 4K 60Hz 2x DisplayPort 1.4 Ports With HBR3, Supporting A Maximum Resolution Of 4K 60Hz |
Slots |
2x PCIe X16 Slots PCI_E1 (From CPU) Support PCIe 4.0 X16 PCI_E3 (From B660 Chipset) Support PCIe 3.0 X4 1x PCIe 3.0 X1 Slot (Fom B660 Chipset) |
Supported Storage |
4x SATA 6Gb/S Ports (From B660 Chipset) 2x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports Up To PCIe 4.0 X4 Supports 2242/ 2260/ 2280 Storage Devices M2_2 Slot (From B660 Chipset) Supports Up To PCIe 4.0 X4 Supports Up To SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Supports Intel Optane Memory Support Intel Smart Response Technology For Intel Core Processors |
Bluetooth |
Supports Bluetooth® 5.2 |
LAN |
1x Realtek RTL8125BG 2.5Gbps LAN Controller |
Audio |
Realtek ALC897 Codec 7.1-Channel High Definition Audio |
USB Port |
1x USB 3.2 Gen 1 5Gbps Type-C Connector (From B660 Chipset) 1x USB 3.2 Gen 1 5Gbps Type-A Connector (From ASM1074) Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports 2x USB 2.0 Type-A Connectors (From B660 Chipset) Supports Additional 4 USB 2.0 Ports |
Internal I/O Ports |
1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1x TPM Module Connector 1x Tuning Controller Connector 1x TBT Connector (Supports RTD3) 1x Serial Port |

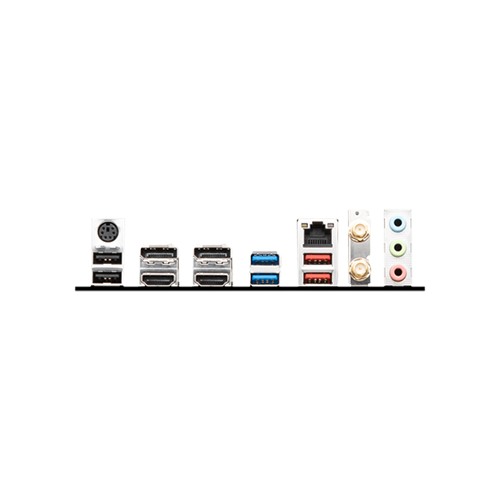

External I/O Ports |
Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN Port Wi-Fi / Bluetooth Audio Connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A |
WiFi |
Intel Wi-Fi 6 The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) Up To 2.4Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax |
DIMENSIONS |
9.6 In. X 9.6 In. (24.4 Cm X 24.4 Cm) |
Form Factor |
Micro-ATX Form Factor |
Warranty |
03 Years |
MSI PRO B660M-G DDR4 Motherboard in Bangladesh
FEATURES
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Memory Boost
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
WIFI 6
The latest wireless solution supports MU-MIMO and BSS color
technology, delivering speeds up to 2400Mbps.
Front Type-C USB 3.2 Gen 1 5Gbps
Compatible with the latest PC chassis and perfect for external
drives and other mobile devices.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
