MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard

Name: MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard
Brand: MSI
SKU: 14484
Price: 86750 BDT
Availability: InStock
Rating: 5 (2 reviews)

Price: 78,890৳ ~~86,750৳~~

Status: In Stock

Product Code: 14484

Brand: MSI

Key Features

Model: MPG Z890 CARBON WIFI
Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB 9200 - 6400 (OC) MT/s
Graphics Output: 1x HDMI, 2x Type-C DisplayPort
Features: 5x M.2, Intel Wi-Fi 7

View More Info

Payment Options

78,890৳ ~~86,750৳~~

Cash Discount Price

Online / Cash Payment

13,148৳/month

Regular Price: 78,890৳

EMI Facility Available***

Quantity :

Chat Through

Whatsapp Messenger 09617179141

Specification
Description
Reviews ( 0)

Specification:

Basic Information
Chipset	INTEL Z890
Basic Information
Type	Memory Type: DDR5
BASIC INFORMATION
Supported CPU	Supports Intel® Core™ Ultra Processors (Series 2)
Graphics	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 1.4 with HBR3 over USB Type-C, with a maximum resolution of 8K@60Hz*
Form Factor	ATX (243.84mmx304.8mm)
Audio	1x Front Audio (JAUD)
Other Features
Special Features	LED FEATURE: 4x EZ Debug LED 1x EZ Digit Debug LED
Expansion Slots
PCI	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 supports BIOS adjustment to x8+x4+x4* • PCI_E2 supports BIOS adjustment to x4+x4*
M.2 Socket	5x M.2
Memory
Slots	4
Supported Memory	Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory	256GB
Connector & Ports
HDMI	1x HDMI 2.1
Display Port	2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 1.4
Wireless Communication module	Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
LAN Port (s)	1x Intel® Killer™ E5000B 5G LAN 1x Intel® I226V 2.5G LAN

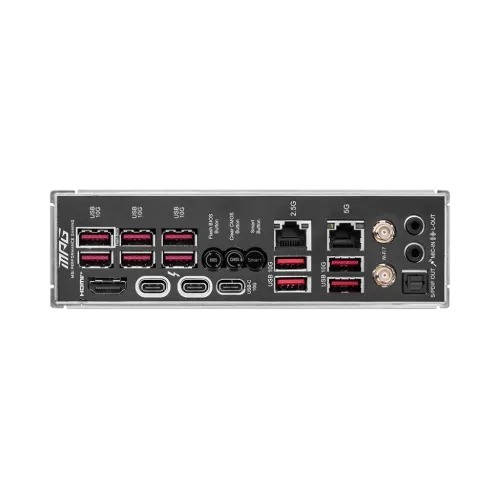

USB (s)	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 10x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
RAID	Supports RAID 0, RAID 1, RAID 5 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and Raid 10 for M.2 NVMe storage devices
Supported Storage	5x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
WARRANTY INFORMATION
Manufacturing Warranty	3 Year Warranty

Description :

MSI MPG Z890 CARBON WIFI LGA 1851 ATX Motherboard

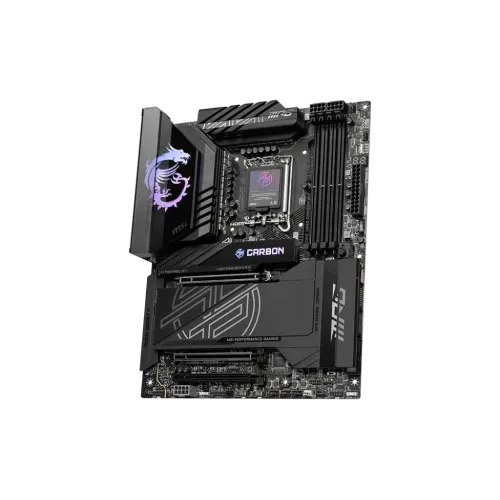

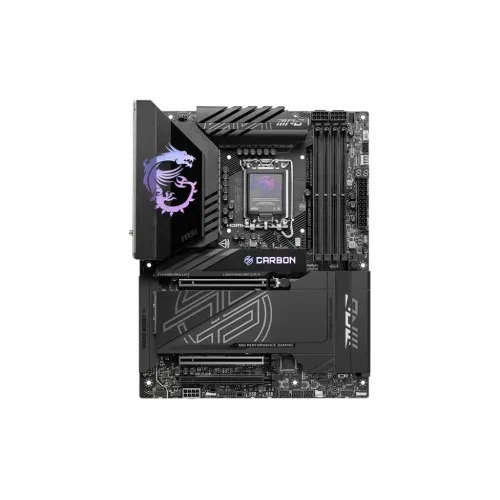

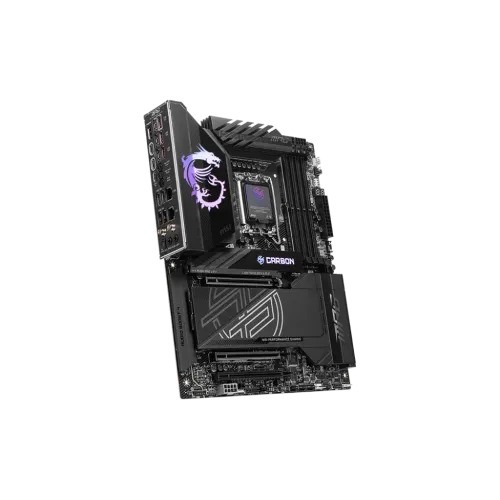

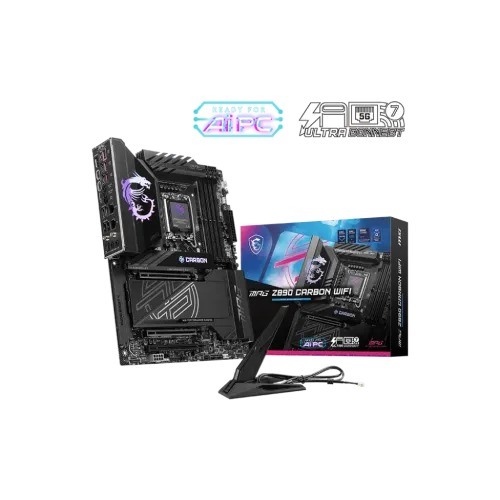

The MSI MPG Z890 CARBON WIFI is a high-performance ATX motherboard designed to support Intel's latest Core™ Ultra Processors (Series 2) with the LGA 1851 socket. It offers a blend of advanced features tailored for gamers and enthusiasts seeking robust performance and connectivity.

Key Features:

Processor Support: Compatible with Intel® Core™ Ultra Processors (Series 2) for the LGA 1851 socket.

Memory: Equipped with four DDR5 DIMM slots, supporting up to 256GB of memory. The motherboard allows for impressive memory overclocking, reaching speeds up to 9200+ MT/s.

Power Delivery: Features a direct 20+1+1+1 phase power design with dual 8-pin CPU power connectors, ensuring stable and efficient power delivery for high-performance computing.

Expansion Slots:

One PCIe 5.0 x16 slot.

One PCIe 5.0 x16 slot (operating in x8 mode).

One PCIe 4.0 x4 slot.

BHPHOTOVIDEO.COM

Storage Options: Provides five M.2 slots for high-speed NVMe SSDs and four SATA III ports for additional storage devices.

Connectivity:

Networking: Integrated Wi-Fi 7 (802.11be) for high-speed wireless connectivity and dual Ethernet ports, including a 5GbE and a 2.5GbE port.

USB Ports: Offers a comprehensive array of USB ports, including USB 3.2 Gen 2x2, USB 3.2 Gen 2, and Thunderbolt 4 ports, ensuring versatile and high-speed peripheral connectivity.

Cooling and Design: Incorporates enlarged heatsinks with heat-pipes, MOSFET thermal pads rated for 7W/mK, and M.2 Shield Frozr to maintain optimal temperatures during intensive tasks.

User-Friendly Features: Includes EZ DIY features such as EZ PCIe Release, EZ M.2 Shield Frozr II, and EZ Antenna, simplifying the building and upgrading process.

Performance and Reviews:

The MPG Z890 CARBON WIFI has been well-received for its robust feature set and performance capabilities. PCMag highlighted its user-friendly firmware, impressive hardware features, and premium all-black aesthetic. However, they noted that it utilizes a previous-generation audio codec and offers only one PCIe 5.0 M.2 slot.

Conclusion:

The MSI MPG Z890 CARBON WIFI stands as a solid choice for users seeking a motherboard that balances performance, connectivity, and user-friendly features. Its support for the latest Intel processors, high-speed memory, and advanced networking options make it suitable for both gaming and professional applications.
