| Basic Information | ||
| Type | Memory Type: DDR5 | |
| BASIC INFORMATION | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL Z890 | |
| Graphics | 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Key Features | ||
| Form Factor | ATX (243.84mmx304.8mm) | |
| Other Features | ||
| Special Features | LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot. ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot. |
|
| M.2 Socket | 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Memory | ||
| Slots | 2x DDR5 UDIMM, Maximum Memory | |
| Maximum Memory | 128GB | |
| Connector & Ports | ||
| Display Port | 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| LAN Port (s) | 1x Intel® Killer E5000B 5G LAN | |

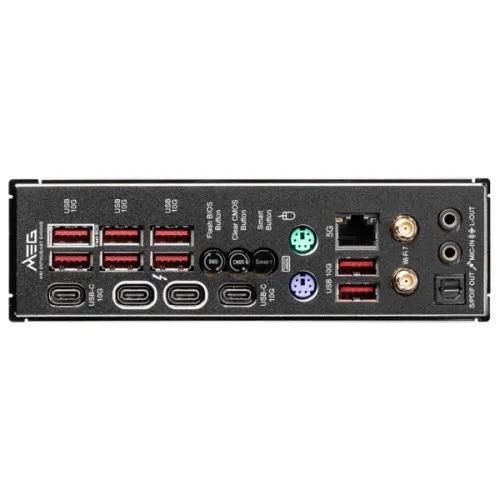

| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit. |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Supported Storage | 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 6x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Audio Features | ||
| Audio | 1x Front Audio (JAUD) | |

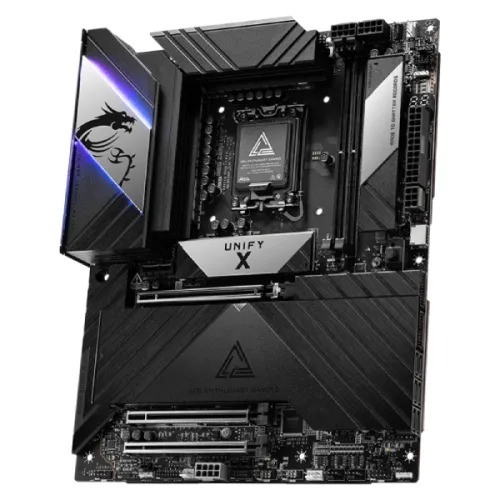

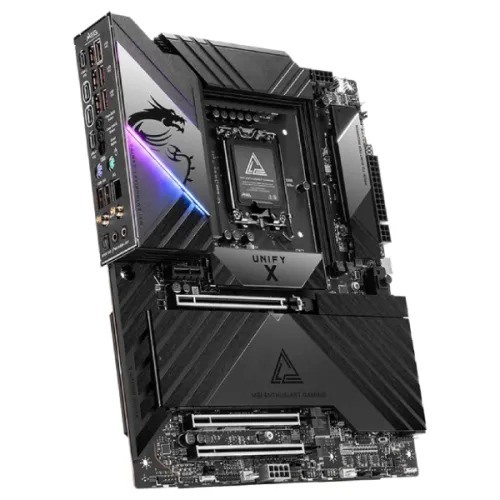

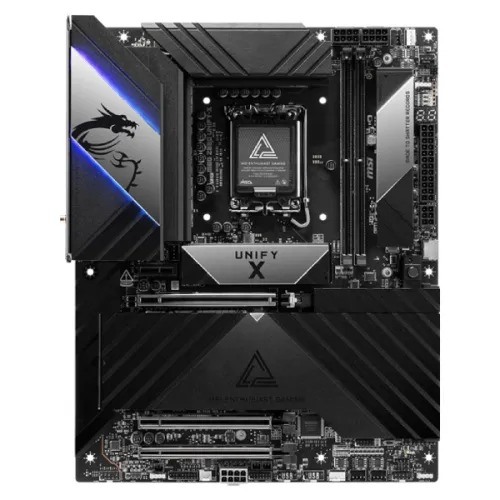

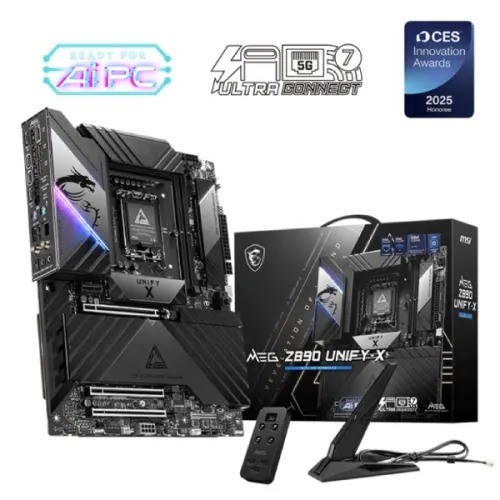

MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard
The MSI MEG Z890 UNIFY-X is a high-performance ATX motherboard designed for enthusiasts and gamers seeking top-tier features and overclocking capabilities. Built around the Intel Z890 chipset, it supports Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket.
Key Features:
Robust Power Delivery: Equipped with a 20+2+1+1 digital power phase design and 110A Smart Power Stages, the motherboard ensures stable and efficient power delivery, catering to extreme performance demands.
Memory Support: Features a dual-channel DDR5 configuration with two DIMM slots, supporting up to 128GB of memory. It offers impressive overclocking potential, achieving speeds up to 9600+ MT/s.
Expansion Slots: Includes two PCIe 5.0 x16 slots, one PCIe 4.0 x16 slot, and one PCIe 4.0 x1 slot, providing ample options for graphics cards and expansion needs.
Storage Options: Offers six M.2 slots with double-sided M.2 Shield Frozr for enhanced SSD cooling and performance.
Connectivity: Features dual Thunderbolt™ 4 ports, Intel® Killer™ 5G LAN, and full-speed Intel® Killer™ Wi-Fi 7, ensuring high-speed networking and data transfer capabilities.
User-Friendly Features: Incorporates EZ DIY elements like a pre-installed I/O shield, Smart Button, EZ M.2 Clip II, and EZ Debug LED, simplifying the building and troubleshooting process.
Performance and Reviews:
The MEG Z890 UNIFY-X is engineered for record-breaking DDR5 memory overclocking, thanks to its dedicated 2 DIMM architecture. It delivers exceptional performance, making it a top choice for users aiming to maximize their system's capabilities.
In reviews, the motherboard has been praised for its robust VRM design, excellent memory overclocking potential, and comprehensive connectivity options, including Wi-Fi 7 and Thunderbolt 4. However, its premium price point may be a consideration for mainstream users.
Conclusion:
The MSI MEG Z890 UNIFY-X stands out as a feature-rich motherboard tailored for enthusiasts seeking high performance, extensive connectivity, and advanced overclocking capabilities. Its design and features make it a compelling choice for building a cutting-edge system.
