| Basic Information | ||
| Supported CPU | Supports Intel® Core™ Ultra Processors (Series 2) | |
| Chipset | INTEL Z890 | |
| Form Factor | ATX | |
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) | |
| M.2 Socket | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s | |
| Connector & Ports | ||
| HDMI | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* | |
| LAN Port (s) | Intel® Killer™ E5000 5Gbps LAN | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |

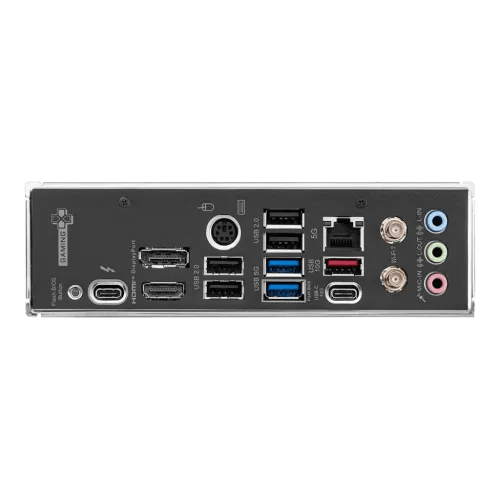

| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports | |
| Display Port (s) | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 1.4 over USB Type-C®, with a maximum resolution of 4K 120Hz / 8K 60Hz* | |
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | |
| Warranty Information | ||
| Warranty | 3 Years | |
The MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Motherboard is a powerhouse designed for gamers and AI enthusiasts who demand stability, durability, and top-tier performance. Supporting the latest Intel® Core™ Ultra Processors (Series 2) with the LGA 1851 socket, this MSI motherboard ensures compatibility with the most advanced CPUs. It features a robust 16+1+1+1 Duet Rail Power System with 90A SPS, dual 8-pin CPU power connectors, and an extended heatsink design, providing reliable power delivery and efficient cooling. The sleek, military-inspired design embodies ruggedness and toughness, making it a perfect fit for any high-performance build. Additionally, the MAG Z890 TOMAHAWK WIFI is equipped with MSI’s exclusive Core Boost technology, optimizing power delivery to the CPU for stable and efficient performance even under heavy loads. This WiFi motherboard also includes a reinforced PCIe 5.0 slot, designed to support the latest graphics cards and provide a stable connection during intense gaming sessions.
Equipped with cutting-edge connectivity options, the MAG Z890 TOMAHAWK WIFI includes Wi-Fi 7, 5G LAN, and Thunderbolt 4, ensuring ultra-fast data transfer and seamless connectivity. This Intel motherboard supports up to 256GB of DDR5 memory across four DIMM slots, allowing for exceptional multitasking capabilities and future-proofing your system. With PCIe 5.0 and M.2 Gen5 slots, it is ready to accommodate the latest GPUs and storage devices, making it an ideal choice for high-performance gaming and AI applications. The inclusion of multiple USB 3.2 Gen 1 & 2 ports further enhances its versatility, providing ample connectivity options for all your peripherals. This gaming motherboard is designed to meet the needs of both current and future technology, ensuring your system remains at the cutting edge.
The MAG Z890 TOMAHAWK WIFI is designed with user-friendly features to make building and upgrading your system easier than ever. It includes MSI’s exclusive EZ DIY features like pre-installed I/O shielding, EZ M.2 Shield Frozr II, and EZ PCIe Release, simplifying the installation process. This MSI motherboard supports DDR5 memory with dual-channel speeds of up to 9200+ MT/s (OC), ensuring blistering performance for gaming and AI applications. Advanced cooling solutions, including multiple heatsinks and fan headers, keep your system running cool even under heavy loads. With its combination of advanced technology, robust build quality, and user-friendly design, the MAG Z890 TOMAHAWK WIFI is the ultimate choice for gamers and tech enthusiasts looking to dominate their digital battlegrounds. This WiFi motherboard ensures that your gaming experience is smooth, fast, and reliable, making it a top choice for any serious gamer or tech enthusiast.
