| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
|
| BIOS | Flash BIOS Button |
|
| Form Factor | E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm) |
|
| Basic Information | ||
| Chipset | Processor socket LGA1700 |
|
| Audio | 7.1-Channel High Definition Audio Supports S/PDIF output 1x Front panel audio connector |
|
| Expansion Slots | ||
| PCI | 3x PCIe x16 slots |
|
| M.2 Socket | 5x M.2 slots (M-Key) |
|
| Memory | ||
| Memory Type | DDR5 Supports 1R 4800 MHz (by JEDEC & POR) |
|
| Slots | 4x DDR5 memory slots, supporting up to 128GB 1 |
|
| Supported Memory | Max. overclocking frequency: |
|
| Maximum Memory | supporting up to 128GB |
|
| Graphics | ||
| Graphics | 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz |
|

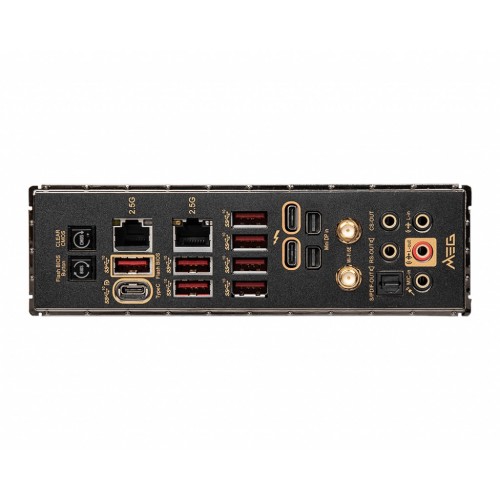

| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| Display Port | 1x Type-C Display port, supporting a maximum resolution of 4K 60Hz |
|
| LAN | 2x Intel I225V 2.5Gbps LAN controllers |
|
| Wireless | Intel Wi-Fi 6E |
|
| Supported Storage | 6x SATA 6Gb/s ports (From Z690 chipset) |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector |
|
| USB Port | Intel Z690 Chipset |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years |
|

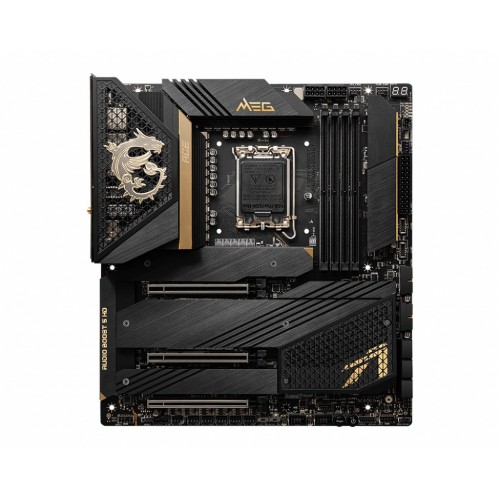

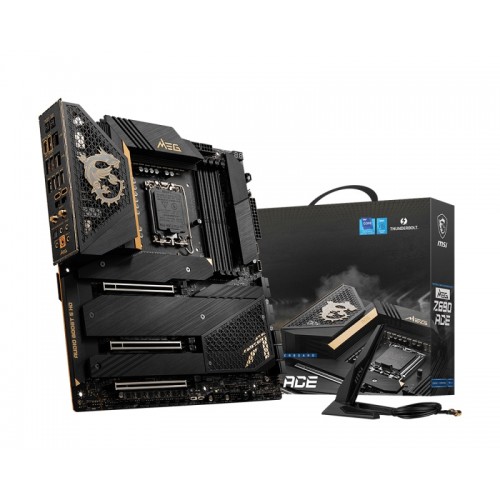

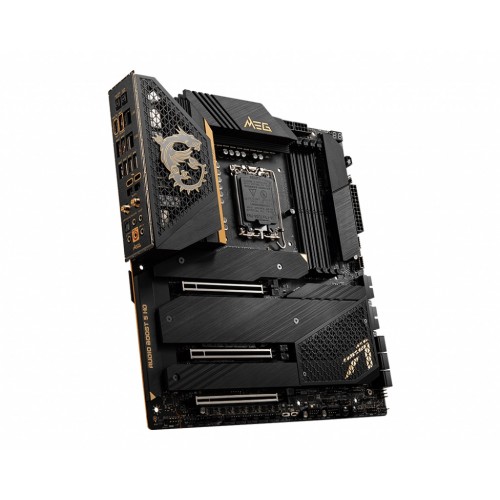

MSI MEG Z690 ACE motherborad Supports with 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz(OC). It is combines with dedicated SMT welding process and MSI Memory Boost technology, MSI MEG Z690 ACE is ready to deliver the world class memory performance. This motherboard featured with Genuine 24K Gold, Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty. the MSI Motherboard has Dual Thunderbolt 4 ports, these are Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. In this motherboard, it comes with Quintuple M.2 Connectors. This connectors are Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. The MSI MEG Z690 ACE designed with Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This motherboard also has Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz. The motherboard has Outstanding Cooling Solution, which designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. The new MSI MEG Z690 ACE designed with 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. Here, The Ultimate audio solution comes with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability. The Latest MSI MEG Z690 ACE has 03 years warranty.
