| Basic Information | ||
| Chipset | Intel Z590 Chipset | |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200 |
|
| Form Factor | ATX Form Factor | |
| Memory | ||
| Slots | 2x DDR4 memory slots | |
| Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Intel I225-V 2.5Gbps LAN controller | |
| Supported Storage | 6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 slots Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default) Support up to PCIe 4.0 x4 (from CPU, by BIOS selection) M2_2 supports 2242/ 2260/ 2280 storage devices M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (from Z590 chipset) Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal Sensors connector 1x Tuning Controller connector 1x TBT connector (Supports RTD3) |
|

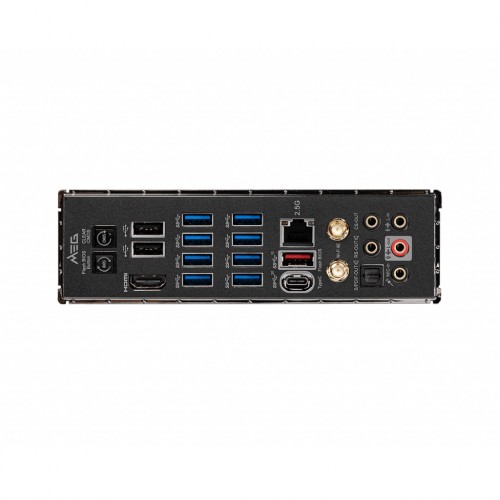

| USB Port | Intel Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector) 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB 2.0 connector |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

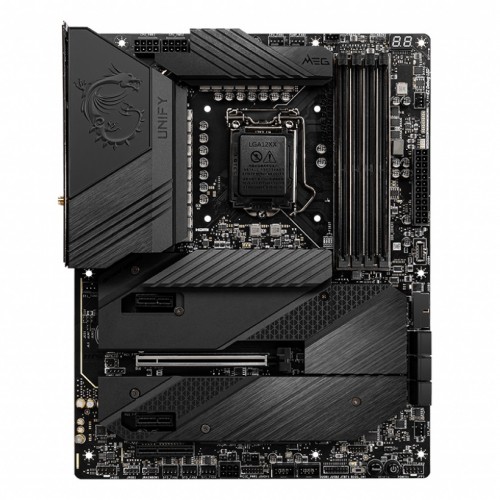

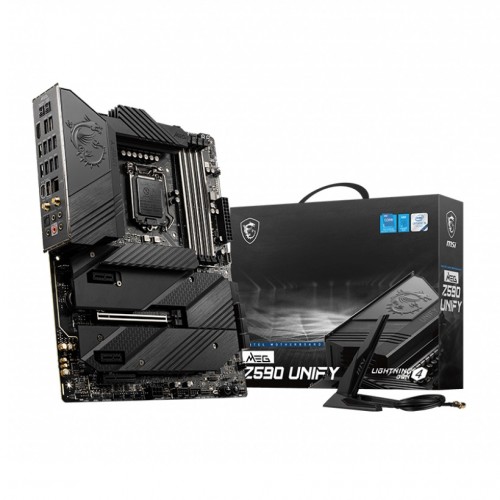

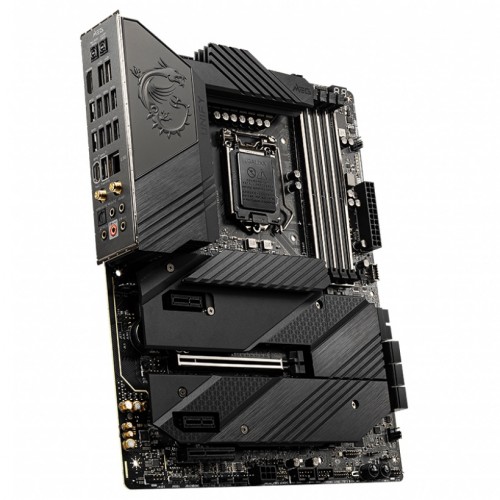

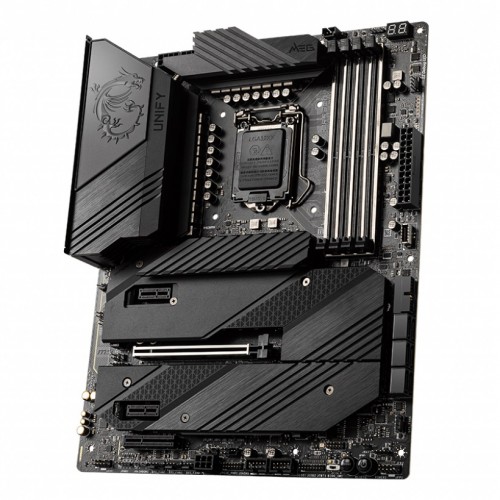

MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard support 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5600(OC) MHz. MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard is dedicated for Extreme OC. The top-notch R&D design and exclusive 2 DIMM solution deliver world-class memory performance. MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard features Quadruple M.2 Connectors. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard supports Extreme Power Design, INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors, and exclusive Mirrored Power Arrangement to unleash the true power of your processors. MSI MEG Z590 UNIFY 10th and 11th Gen ATX Motherboard comes with an Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure extreme performance with low temp. Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. It has a Smart Button, One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan, and EZ LED control functions with just one click. 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
