| BASIC INFORMATION | ||

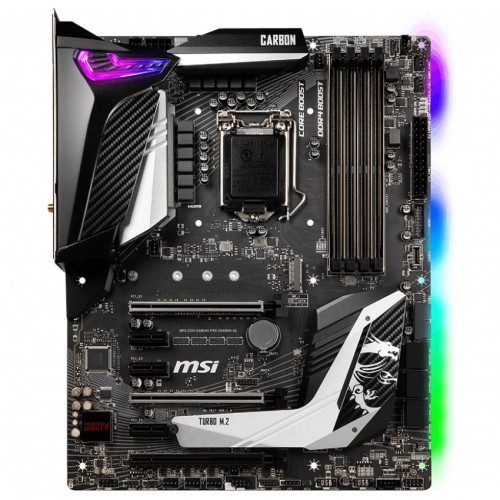

| Form Factor | 9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor |
|
| Basic Information | ||
| Chipset | Intel Z390 Chipset | |
| Audio | Realtek ALC1220P-VB2 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket | |
| Memory | ||
| Memory | Type: Dual-Channel Architecture Slots: 4 x DDR4 memory slots Supported Memory: Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: support up to 128GB |
|
| Graphics | ||
| Graphics | 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@24Hz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| LAN | 1 x Intel I219-V Gigabit LAN controller | |
| Supported Storage | Intel® Z390 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)1 Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel Optane Memory Ready |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.1 Gen2 Type-C port 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 5x 4-pin system fan connectors 1x Serial port connector 1x Front panel audio connector 2x System panel connectors 1x Thunderbolt Add-on Card Connector 1x Chassis Intrusion connector 1x TPM module connector 2x 4-pin RGB LED connectors 1x 3-pin RAINBOW LED connector 1x 3-pin CORSAIR LED connector |
|

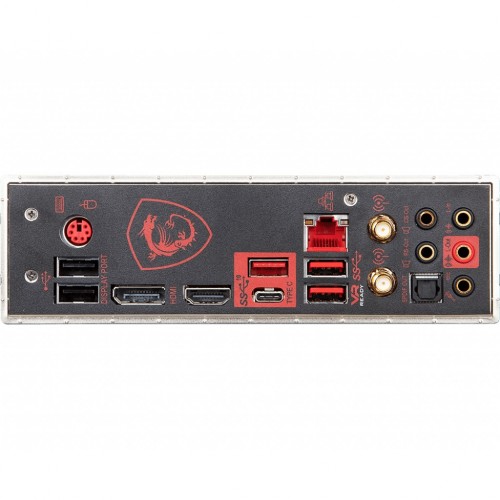

| USB Port | Intel Z390 Chipset 5x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with the solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want. Complete your high-performance experience with an array of performance-enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment. MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. High-quality materials and intelligent fan optimization help to cool all necessary components, which is critical to ensuring that the system is stable and always delivering the best performance. Optimized layout design and a fully isolated memory circuitry ensure perfect stability and performance. you never have to worry about your system crashing during games with MSI DDR4 BOOST. MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies. MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one. Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.
