| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2) | |
| Chipset | Intel H810 |
|
| BIOS | Flash BIOS Button | |
| Form Factor | Micro-ATX |
|
| Audio | Realtek ALC897 Code | |
| Expansion Slots | ||
| PCI | 1 x PCIe x16 slot supports up to PCIe 5.0 x16, 2 x PCIe x1 slots support up to PCIe 4.0 x1 |
|
| M.2 Socket | 1x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x UDIMM |
|
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 1 x DP |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | 4 x USB 2.0 Type-A, 2 x USB 5Gbps Type-A |
|
| LAN Port (s) | Realtek RTL8125D 2.5G LAN | |
| Supported Storage | 1 x M.2 slot (Key M) type s 2260/2280 Supports up to PCIe 4.0 x4 SATA Inteface 6.0Gb/s |
|
| Display Port (s) | 1 x DP |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Warranty Information | ||
| Warranty | 3 Years Warranty | |

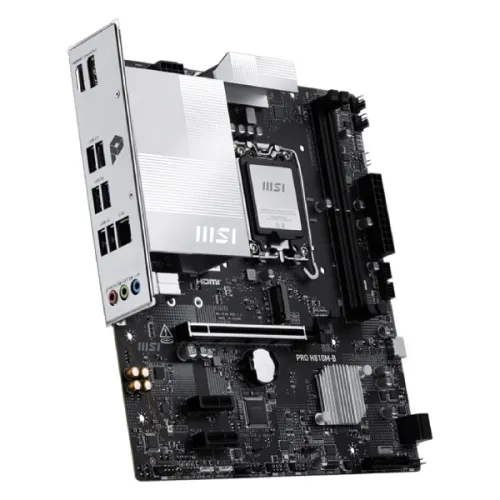

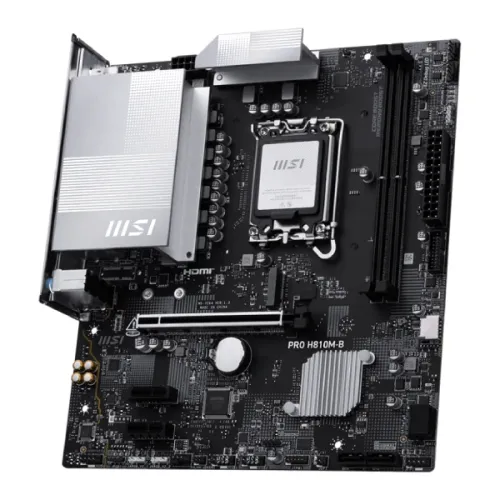

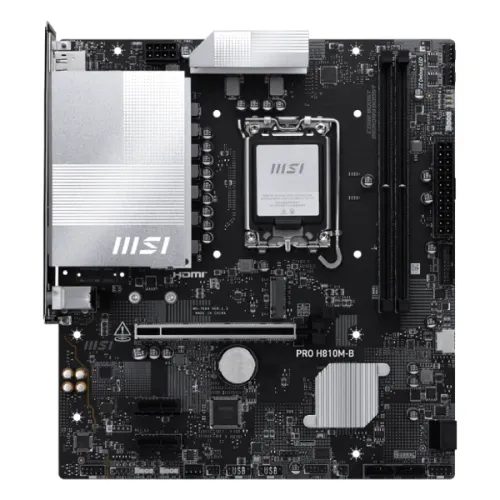

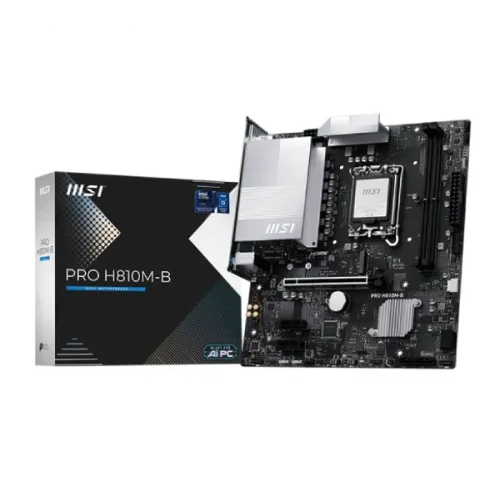

The MSI PRO H810M-B DDR5 is a value-focused micro-ATX (mATX) motherboard built for the LGA 1851 socket. Part of MSI's "Business Elegance" PRO series, it is designed for users building reliable, high-efficiency "AI PCs" or professional workstations using the Intel Core Ultra (Series 2) processors.
The board utilizes the Intel H810 chipset, offering a stable and cost-effective entry point into the latest Intel architecture. It features MSI's Core Boost technology with a fully digital power design to ensure consistent power delivery to the CPU. The Memory Boost feature provides isolated circuitry for the RAM to maintain signal purity and system stability under load.
Next-Gen Graphics: It includes one PCIe 5.0 x16 slot, providing 128GB/s of bandwidth to accommodate the latest high-end GPUs.
Memory: Two DDR5 DIMM slots support up to 128GB of memory. While JEDEC speeds are standard, it supports overclocking profiles up to 6400+ MT/s via XMP 3.0.
Storage: A Lightning Gen4 x4 M.2 slot (64Gbps) allows for ultra-fast boot times and application loading, complemented by four SATA 6Gb/s ports for bulk storage.
Networking: It is equipped with 2.5Gbps LAN, offering significant speed upgrades over standard Gigabit for faster file transfers and smoother video conferencing.

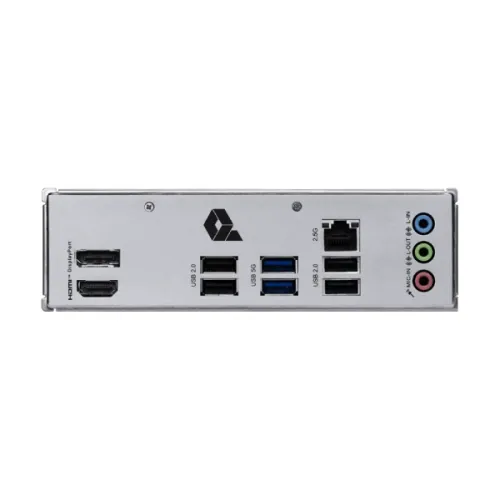

I/O Support: The board provides a USB 10Gbps Type-C port on the front panel and multiple USB 5Gbps ports. Video outputs include HDMI 2.1 and DisplayPort 1.4 for 4K/60Hz displays.
Ease of Use: Features include EZ PCIe Clip II for easy GPU swapping and EZ Debug LEDs for rapid hardware troubleshooting.
