| BASIC INFORMATION | ||
| Supported CPU | Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon Processor |
|
| Chipset | Intel B760 | |
| BIOS | 128M UEFI, supporting multiple languages | |
| Form Factor | M-ATX 245mm x 245mm |
|
| Audio | 5.1 Channel sound card | |
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Four DDR4 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory) - DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/ 3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported ® Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 128 GB | |
| Connector & Ports | ||
| LAN | RTL8125 2.5Gbit network card | |
| SATA | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|

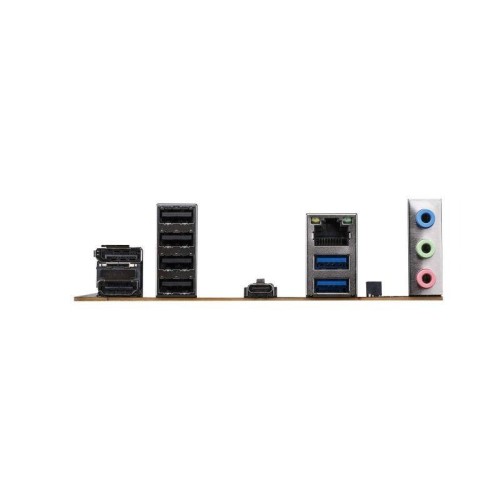

| Internal I/O Ports | Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) On board device interface: - 1×CPU fan pin - 3 system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pin - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB lamp effect control jumper |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

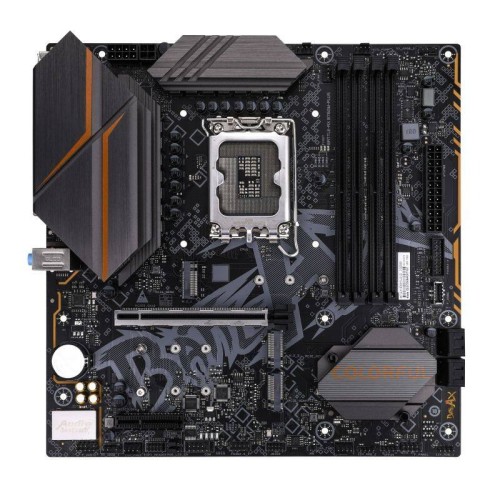

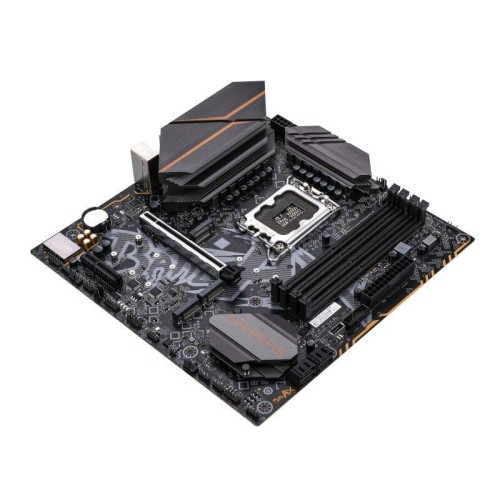

The Colorful BATTLE-AX B760M-PLUS V20 motherboard is a cutting-edge and feature-packed motherboard designed to support the 12th and 13th generation Intel processors, fitting seamlessly into the LGA 1700 slot. Powered by the Intel B760 chipset, this motherboard boasts a robust 128M UEFI BIOS that supports multiple languages, providing a versatile and user-friendly interface. In terms of form factor, the BATTLE-AX B760M-PLUS V20 adopts the M-ATX form factor, measuring 245mm x 245mm. Its compact size doesn't compromise its performance, making it suitable for various PC builds. The motherboard supports DDR4 memory with four memory slots, accommodating up to 128 GB of RAM. The memory configuration is flexible, supporting a wide range of speeds, including DDR4-4800 (OC), DDR4-4600 (OC), and more. It also incorporates Intel® Extreme Memory Profile (XMP) technology and dual-channel memory support, ensuring efficient and high-speed data access. Connectivity options are extensive, with a RTL8125 2.5Gbit network card for high-speed networking and a comprehensive storage solution. It includes 3 M.2 slots and 4 SATA 6Gb/s interfaces, supporting RAID 0, RAID 1, RAID 5, and RAID 10 configurations for SATA hard disk devices. The M.2 slots support various M.2 SSD sizes and operate at PCIe 4.0 x4 speeds. The rear I/O interface features multiple USB ports, including USB 2.0 and USB 3.2 Gen 1 Type-A interfaces, as well as a USB 3.2 Gen 2 Type-C interface. It also provides display options with a DP 1.2 interface and an HDMI 2.0 interface, both capable of delivering up to 4K 60Hz resolution. Additionally, the motherboard includes a 2.5G network interface and three audio interfaces for comprehensive audio connectivity. The internal I/O ports are diverse, accommodating various peripherals and components, such as CPU fans, system fans, water-cooled pumps, and a range of USB interfaces. The inclusion of ARGB and RGB pins allows users to customize their system's lighting, adding a touch of personalization to their gaming or work setup. The Colorful BATTLE-AX B760M-PLUS V20 motherboard is a versatile and high-performance option for users seeking a feature-rich platform for their 12th and 13th generation Intel-based systems.
Colorful BATTLE-AX B760M-PLUS V20 Motherboard Features
Feature Highlights:
12+1 phase reinforced power supply Provide 3 PCIe 4.0 x4 M.2 SSD slots Provide one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed rear interfaces Equipped with Realtek 2.5G high-speed wired network card Equipped with CNVI WiFi/BT slot, supporting extended WiFi module Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory Six protection technologies, more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgraded.
