Colorful BATTLE-AX B760M-PLUS D5 V20 Motherboard

Colorful BATTLE-AX B760M-PLUS D5 V20 Motherboard

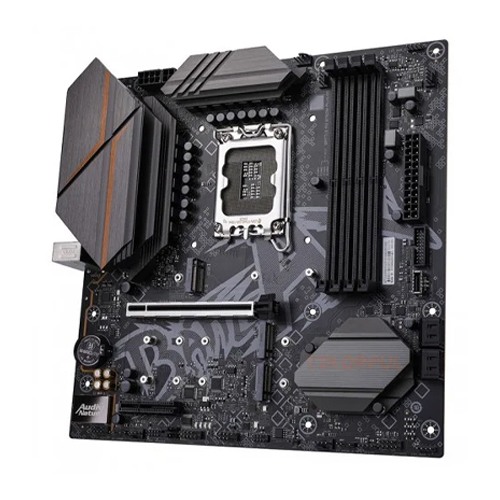

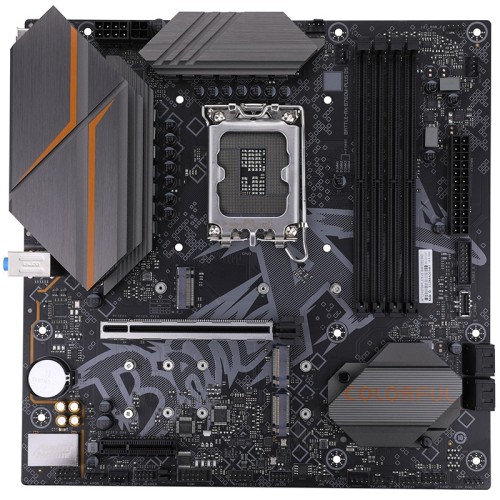

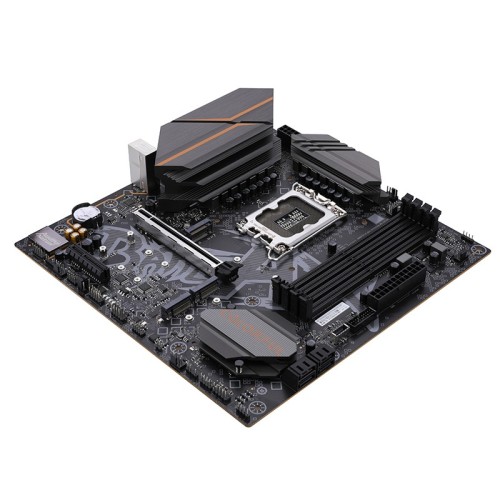

The Colorful BATTLE-AX B760M-PLUS D5 V20 Motherboard is a cutting-edge motherboard designed to accommodate the 13th and 12th generation Intel processors, providing a seamless performance experience. Engineered for the LGA 1700 slot, this motherboard boasts a robust Intel B760 chipset that ensures optimal efficiency and functionality. Featuring a Micro-ATX form factor with dimensions of 245mm x 245mm, the motherboard is compact yet powerful. It supports DDR5 memory, offering four memory slots capable of supporting up to an impressive 192 GB of memory. The memory speed can be overclocked up to DDR5-6600 (OC), providing users with the flexibility to tailor their system's performance to their specific needs. Intel's Extreme Memory Profile (XMP) technology is also supported, along with dual-channel memory technology. The expansion slots include a PCIe 5.0 x16 slot and a PCIe 3.0 x4 slot, ensuring compatibility with a variety of expansion cards. In terms of storage, the motherboard features three M.2 slots and four SATA 6Gb/s interfaces, supporting the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices. Connectivity is a key strength of the BATTLE-AX B760M-PLUS D5 V20, with a 2.5Gbit network card (RTL8125) providing high-speed LAN capabilities. The rear I/O interface is equipped with a range of ports, including USB 2.0 and USB 3.2 Gen 1 Type-A interfaces, a USB 3.2 Gen 2 Type-C interface, DP 1.2, HDMI 2.0, and a 2.5G network interface. The onboard device interface includes various pins for CPU fans, system fans, water-cooled pumps, and expansion of USB interfaces. Furthermore, the motherboard offers comprehensive internal I/O ports, supporting various peripherals and accessories, including RGB lighting with 5V 3-pin ARGB and 12V 4-pin RGB pins. With a plethora of features and a focus on performance, the Colorful BATTLE-AX B760M-PLUS D5 V20 Motherboard stands out as a versatile and high-performance foundation for gaming and professional computing setups.

Colorful BATTLE-AX B760M-PLUS D5 V20 Motherboard Features

• Processor Compatibility: The motherboard supports the 13th and 12th generation Intel processors, including CoreTM, Pentium, and Cylon processors, ensuring compatibility with a wide range of CPUs.
• Chipset: Equipped with the Intel B760 chipset, the motherboard provides a stable and efficient platform for high-performance computing.
• BIOS: The motherboard features a 128M UEFI BIOS that supports multiple languages, offering user-friendly customization and configuration options.
• Form Factor: With a Micro-ATX form factor measuring 245mm x 245mm, the motherboard strikes a balance between compactness and performance, making it suitable for various PC builds.
• Audio Capabilities: The onboard 5.1 Channel sound card delivers immersive audio experiences, enhancing the overall multimedia and gaming experience.
• Power Management: Supporting S3, S4, network S5 wake-up, regular power on, and power off, the motherboard provides efficient power management options for different usage scenarios.
• Expansion Slots: 1 PCIe 5.0 x16 slot for high-speed graphics cards. 1 PCIe 3.0 x4 slot for additional expansion cards, providing versatility in component choices.
• Memory Support: The motherboard supports DDR5 memory with four memory slots, allowing for a maximum memory capacity of 192 GB. It supports overclocked memory speeds, including DDR5-6600 (OC), and incorporates Intel Extreme Memory Profile (XMP) technology and dual-channel memory support.
• Storage Options: With 3 M.2 slots and 4 SATA 6Gb/s interfaces, the motherboard supports various storage configurations, including RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices.
• RGB and ARGB Support: The motherboard features 5V 3-pin ARGB and 12V 4-pin RGB pins, allowing users to customize the lighting aesthetics of their system.
• Internal I/O Ports: The motherboard includes a comprehensive set of internal ports for various peripherals, ensuring flexibility in system configurations.

Feature Highlights:

• Support dual channel DDR5-6600 (OC) MHz memory
• Provide 3 PCIe 4.0 x4 M.2 SSD slots

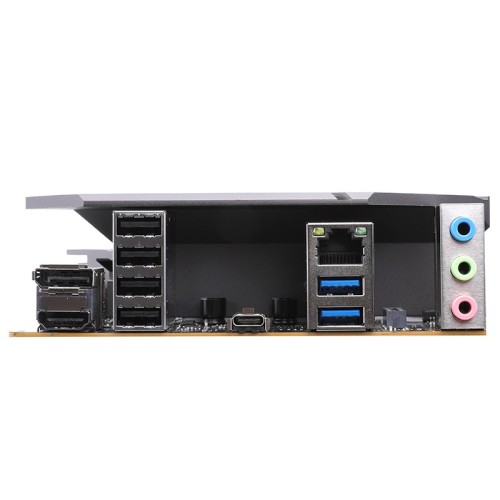

• Provide one USB 3.2 Gen 2 Type-C and one USB 3.2 Gen 1 Type-A high-speed rear interface
• Equipped with Realtek 2.5G high-speed wired network card
• Support the iGame Center light efficiency control software, which can synchronously adjust the light efficiency of the radiator, cooling fan and memory
• Equipped with CNVI WiFi/BT slot, supporting extended WiFi module
• Six protection technologies, more stable product operation
• 200 processes are strictly tested with guaranteed quality
• PCB atomization process comprehensively upgraded
