MSI PRO B840M-B AM5 AMD mATX Motherboard
  • MSI PRO B840M-B AM5 AMD mATX Motherboard
  • MSI PRO B840M-B AM5 AMD mATX Motherboard
  • MSI PRO B840M-B AM5 AMD mATX Motherboard

MSI PRO B840M-B AM5 AMD mATX Motherboard

Price: 15,300৳ 17,500৳
Status: In Stock
Product Code: 16046
Brand: MSI
Key Features
  • Model: PRO B840M-B
  • Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
  • Supported RAM: 2x DDR5 UDIMM, Up to 8000 (OC) MHz, Max. 128GB
  • Graphics Output: 1x HDMI 2.1, 1x VGA, Maximum resolution of 4K 60Hz
  • Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN
View More Info

Payment Options

Quantity :

Specification:

Basic Information
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD B840
BIOS Flash BIOS Button
Form Factor mATX
Audio Realtek ALC897
7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
M.2 Socket 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Type DDR5
Slots 2x UDIMM
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 128GB
Graphics
Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

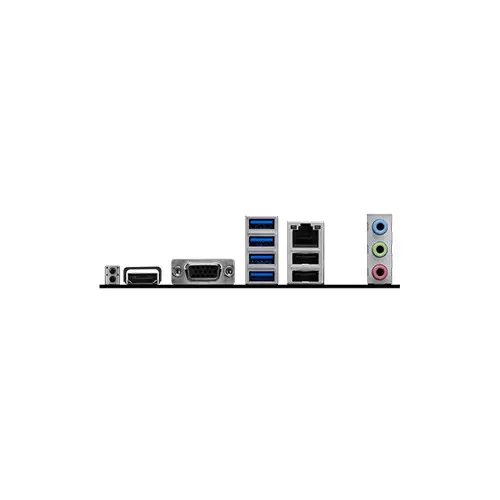

Connector & Ports
HDMI 1x HDMI
USB (s) 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5G LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Display Port (s) 1x VGA
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
1x EZ Memory Detection LED
Warranty Information
Warranty 3 Year

Description :

MSI PRO B840M-B AM5 AMD mATX Motherboard


The MSI PRO B840M-B AM5 AMD mATX Motherboard is an excellent choice for users looking to build a reliable and efficient AMD Ryzen desktop PC. Powered by the AMD B840 chipset and featuring the AM5 socket, this motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors.

Featuring two DDR5 memory slots with support for up to 128GB RAM, the MSI PRO B840M-B delivers reliable memory performance for everyday computing, office productivity, multitasking, and budget-friendly gaming PC builds. It supports DDR5 memory speeds up to 8000+ MT/s (OC), depending on the processor and memory configuration, along with AMD EXPO memory overclocking technology.

For storage and graphics expansion, this MSI B840 motherboard features one PCIe 4.0 x16 graphics slot, one PCIe 3.0 x1 expansion slot, and two PCIe 4.0 x4 M.2 slots. It also includes four SATA 6Gbps connectors for additional storage devices.

One of its important features is Realtek 2.5G LAN, providing fast and stable wired network connectivity for online gaming, office work, streaming, and everyday internet use.

The MSI PRO B840M-B also features a Direct 7+2+1 Digital Power Design, EZ PCIe Clip II, EZ M.2 Clip II, Flash BIOS Button, EZ Debug LED, and Audio Boost technology. These features help deliver a convenient PC building experience and reliable system performance.

With its compact Micro-ATX form factor, DDR5 memory support, modern PCIe 4.0 connectivity, and AMD Ryzen AM5 compatibility, the MSI PRO B840M-B is a practical motherboard for home computers, office workstations, and entry-level gaming PC builds.


MSI PRO B840M-B Motherboard Price in Bangladesh


Looking for the MSI PRO B840M-B motherboard price in Bangladesh? PC House offers genuine MSI motherboards and computer components for AMD Ryzen PC builds, office computers, and budget-friendly gaming setups.

The MSI PRO B840M-B is a suitable option for users searching for an affordable AMD B840 AM5 motherboard with DDR5 memory support, PCIe 4.0 storage, and 2.5G LAN connectivity.

Check the latest MSI PRO B840M-B price in Bangladesh, stock availability, and warranty information at PC House.
