| BASIC INFORMATION | ||
| General | Model: H7 Flow RGB 2024 Edition Model Number: CM-H72FB-R1 Type: Mid-Tower Color: Black |
|
| ANBERNIC | ||
| Box specification | H7 Flow RGB: 1 F360 RGB Core (pre-installed, case version): 1 Installation Accessories: 1 Manual: 1 |
|
| Case Features | ||
| Drive Bays | 2.5": 2+2 3.5": 2 |
|
| Expansion Slots | Standard: 7 Vertical: 0 |
|
| Fan Support | Front: 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) Top: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm Rear: 1 x 120 mm / 1 x 140 mm Filters: High-Performance Mesh |
|
| Radiator Support | Front: Up to 420 mm Top: Up to 360mm Rear: Up to 140mm |
|
| Fan | Model: F360 RGB Core Fan (Case Version) Speed: 1,700 ± 200 RPM Airflow: 50.1 CFM Static: 1.27 mm-H₂O Noise: 23.3 dBA Fan Connector: 3-pin 1x F360 RGB Core (pre-installed, case version) |
|
| Key Features | ||
| Compatibility | CPU Cooler Height: Up to 185mm GPU Length: Up to 410 mm PSU Length: Up to 200 mm Cable Management: Up to 34.5 mm Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 57 mm |
|
| Features | Motherboard Support: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX Enclosure Type: Mid-Tower Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black) |
|
| Connectivity | ||
| I/O Port | USB 3.2 Gen 1 Type-A: 2 USB 3.2 Gen 2x2 Type-C (20 Gbps): 1 Headset Audio Jack: 1 |
|
| Physical Specifications | ||
| Dimensions | Height (With Feet): 544 mm Width: 244 mm Depth: 468 mm Weight: 11.13 kg |
|
The NZXT H7 Flow RGB 2024 Edition Mid-Tower ATX Airflow Casing in Black is a sleek and feature-packed PC case designed for optimal cooling and versatility. Tailored for gamers and PC enthusiasts, this mid-tower chassis combines cutting-edge airflow technology with a stylish, modern aesthetic.
At the heart of the H7 Flow RGB is its unique vertical PSU layout, allowing for targeted GPU cooling with the inclusion of three bottom-mounted 120mm fans that help optimize airflow without increasing the overall footprint of the case. Additionally, the F360 RGB Core fan provides efficient cooling while adding a pop of vibrant RGB lighting to enhance the system's visual appeal.
The case’s high-performance mesh panels promote exceptional airflow for both intake and exhaust, ensuring effective temperature management. This design not only maximizes cooling efficiency but also helps prevent dust buildup, keeping your build clean and performing at its best. For users seeking advanced cooling setups, the H7 Flow RGB supports up to a 420mm radiator in the front and a 360mm radiator on top, allowing for robust water-cooling solutions that are ideal for high-end systems.

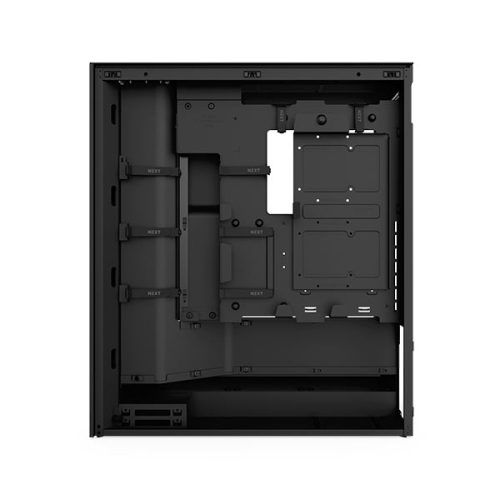

With support for up to 10 fans—three at the top, three at the front, three at the bottom, and one at the rear—this case provides ample cooling options to meet the needs of demanding components. The intuitive cable management system features wide channels, built-in hooks, and straps to keep your build tidy and organized, reducing cable clutter for a clean and streamlined setup.

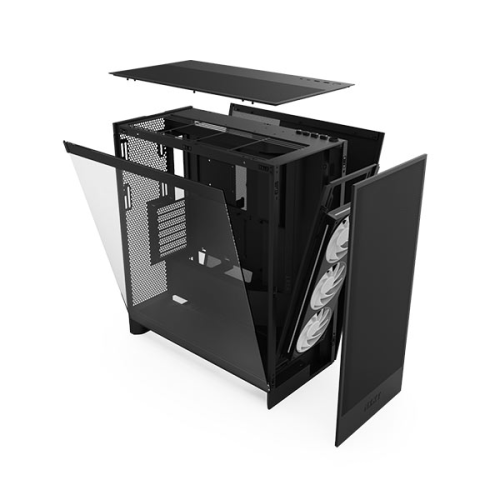

The H7 Flow RGB also offers convenient connectivity with two USB-A ports and one USB-C port on the top panel, providing quick access to essential devices. Building or upgrading your system is made easier with tool-less access to the front, top, and side panels, simplifying the assembly process.
Overall, the NZXT H7 Flow RGB 2024 Edition is an exceptional choice for those looking for a combination of superior cooling performance, expandability, and easy maintenance in a sleek, user-friendly design. Whether you’re a hardcore gamer or a PC enthusiast, this
