| BASIC INFORMATION | ||
| Supported CPU | Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors L3 Cache Varies With The CPU |
|
| BIOS | 1 X 128 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX | |
| Basic Information | ||
| Chipset | Intel® B760 Express Chipset | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out |
|
| Memory | ||
| Slots | CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 Chipset: 2 X PCI Express X1 Slots, Supporting PCIe 3.0 And Running At X1 |
|
| Memory | Support For DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Graphics | ||
| Graphics | 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version. |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI Port | |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
|
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 1 X Addressable LED Strip Header 1 X RGB LED Strip Header 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X S/PDIF Out Header 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
|
| USB Port | Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2 Support 5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+2 USB 2.0 Hubs: 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers |
|
| WiFi | Wireless Communication Module AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB Rev. 1.0) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands LUETOOTH 5.2 Support For 11ax 80MHz Wireless Standard And Up To 1.2 Gbps Data Rate Intel® Wi-Fi 6E AX210 (For PCB Rev. 1.1) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate Intel® Wi-Fi 6E AX211 (For PCB Rev. 1.2) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate Realtek® Wi-Fi 6E RTL8852CE (For PCB Rev. 1.3) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate |
|
| Others | ||
| Special Features | Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

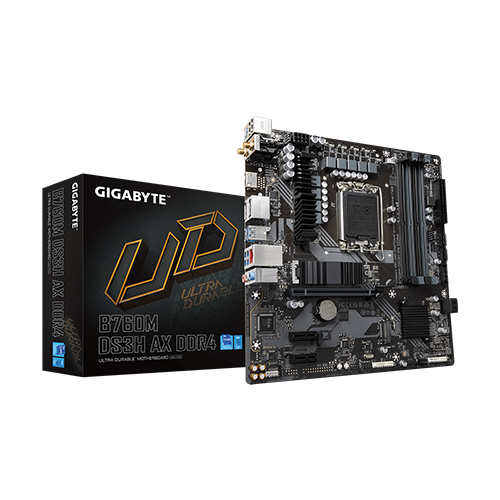

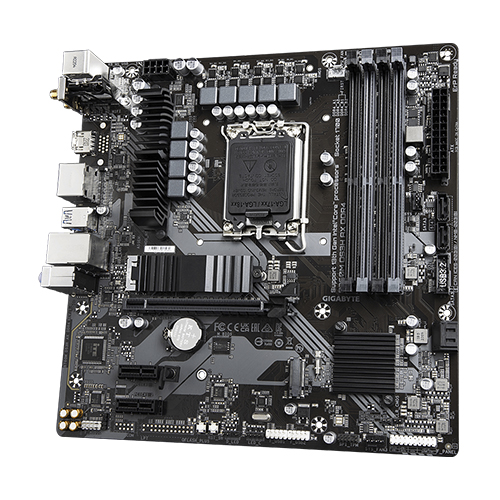

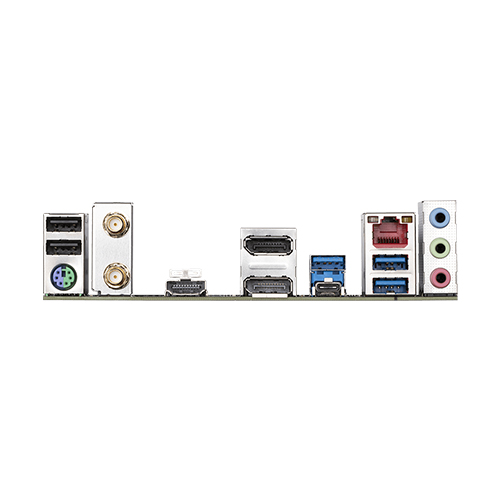

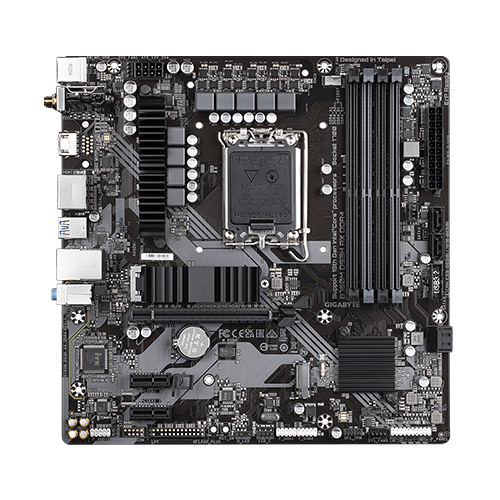

The GIGABYTE B760M DS3H AX DDR4 13th Gen Micro ATX Motherboard is a high-performance and feature-rich motherboard designed to support the 13th and 12th generation Intel Core, Pentium Gold, and Celeron processors. It comes with a powerful Intel B760 Express Chipset and provides excellent connectivity options, making it an excellent choice for gamers, content creators, and PC enthusiasts.With its Micro ATX form factor, this motherboard is compact yet versatile, making it suitable for smaller PC cases without compromising on performance. The board supports DDR4 memory modules, with an extensive range of memory speeds, allowing users to achieve optimal system performance. It can accommodate up to 128GB of system memory, providing ample room for multitasking and running memory-intensive applications.The GIGABYTE B760M DS3H AX features multiple external I/O ports, including 2 USB 2.0/1.1 ports, 1 PS/2 keyboard/mouse port, 2 SMA antenna connectors (2T2R) for wireless connectivity, 1 HDMI port, and 2 DisplayPorts, allowing users to connect a variety of peripherals and displays. Additionally, it offers 3 USB 3.2 Gen 1 ports, 1 USB Type-C port with USB 3.2 Gen 2 support, 1 RJ-45 port for high-speed networking, and 3 audio jacks for high-definition audio output.The motherboard is equipped with robust audio capabilities, thanks to the Realtek Audio CODEC, supporting high-definition audio in 2/4/5.1/7.1-channel configurations. Users have the flexibility to customize the audio functionality using the audio software, including the option to configure 7.1-channel audio. It also supports S/PDIF out for digital audio output.In terms of storage options, the GIGABYTE B760M DS3H AX offers versatile possibilities. It comes with 1 M.2 connector (Socket 3, M Key, Type 2280 PCIe 4.0 x4/x2 SSD support) for high-speed NVMe storage devices and 4 SATA 6Gb/s connectors, supporting RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices. This enables users to create secure and efficient storage configurations to meet their specific needs.Connectivity is further enhanced with the inclusion of Realtek 2.5GbE LAN chip, offering fast and reliable wired network connectivity.The motherboard's BIOS features a licensed AMI UEFI BIOS, providing a user-friendly interface for system configuration and setup. It supports various features such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring smooth boot-ups and system stability.The GIGABYTE B760M DS3H AX motherboard also includes special features like GIGABYTE Control Center (GCC) software, offering convenient control over various functions. It also supports Q-Flash and Q-Flash Plus for easy and hassle-free BIOS updates.With its Wi-Fi options, the motherboard provides multiple choices for wireless communication, including support for Wi-Fi 6E and Bluetooth 5.3, catering to users who require high-speed and reliable wireless connectivity.
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage and Wi-Fi connectivity.
