| Basic Information | ||
| Chipset | Intel H610 Chipset | |
| BASIC INFORMATION | ||
| Supported CPU | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Form Factor | mATX |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) |
|
| Maximum Memory | 64GB | |
| Storage | 1x M.2 slot (Key M) (from CPU) |
|
| Graphics | ||
| Graphics | supporting a maximum resolution of 4K 30Hz |
|

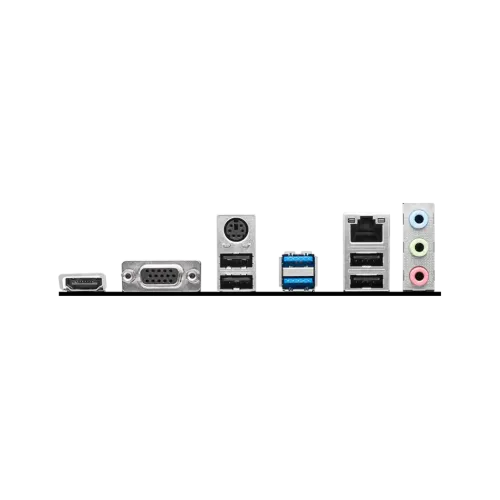

| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 with HDR port | |
| Audio | 1x Front panel audio connector | |
| LAN | 1x Realtek RTL8111H 1Gbps LAN controller | |
| Audio | Realtek ALC897 Codec |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector |
|
| USB Port | 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| VGA | 1x VGA | |
| Others | ||
| Special Features | 1x 4-pin RGB LED connector 4x EZ Debug LED |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

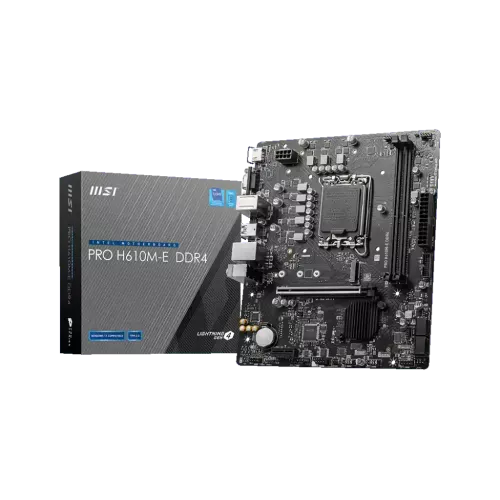

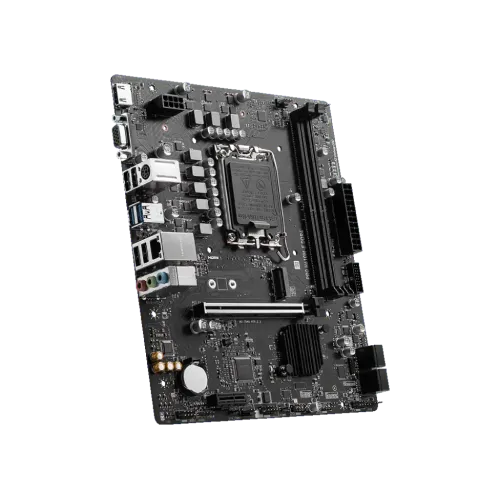

The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mAT, X Motherboard is a high-performance motherboard for the LGA 1700 socket that supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron CPUs. This motherboard includes DDR4 memory compatibility, which can run at up to 3200(MAX) MHz. It also has Core Boost technology, a premium layout, and a digital power architecture, which improves performance and enables additional cores. Memory Boost technology, which produces pure data signals, ensures the highest performance, stability, and compatibility with the MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard. It has PCIe 4.0, which allows for extremely rapid data transfers. Audio Boost technology provides studio-level sound quality to your ears, making it a perfect motherboard for gamers and music aficionados. The MSI PRO H610M-E DDR4 12th Gen & 13th Gen mATX Motherboard also has Steel Armor, which protects VGA cards from bending and EMI while improving performance, stability, and robustness. This motherboard is a good choice for individuals looking for a high-performance motherboard that can handle demanding programs and games, thanks to its sophisticated features and superb design.
