| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold And Celeron® Processors 1 Processor Socket LGA1700 |
|
| Form Factor | MATX 9.6 In. X 8.7 In. (24.4 Cm X 22.0 Cm) | |
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Memory | ||
| Slots | 1x PCIe 4.0 X16 Slot (From CPU) 1x PCIe 3.0 X1 Slot (From B660 Chipset) |
|
| Memory | 2x DDR4 Memory Slots, Support Up To 64GB Supports ADL-S 1R 2133/2666/2933/3200 MHz 1. 1DPC 1R Max Speed Up To 4600+ MHz 2. 1DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x VGA Port, Supports A Maximum Resolution Of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x DisplayPort 1.4 Port, Supports A Maximum Resolution Of 4K 60Hz 1/2 (PRO B660M-G DDR4) |
|
| Connector & Ports | ||
| LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN Controller | |
| Supported Storage | 4x SATA 6Gb/S Ports (From B660 Chipset) 2x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports PCIe 4.0 X4 Supports 2242/ 2260/ 2280 Storage Devices M2_2 Slot (From B660 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices Supports Intel® Optane™ Technology SATA7 Will Be Unavailable When Installing M.2 SATA SSD In The M2_2 Slot. |
|
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 4x SATA 6Gb/S Connectors 2x USB 2.0 Connector (Support Additional 4 USB Ports) 1x USB 3.2 Gen 1 5Gbps Connector (Support Additional 2 USB Ports) 1x 4-Pin CPU Fan Connector 2x 4-Pin System Fan Connectorx 1x Front Panel Audio Connector 2x System Panel Connectors 1x Serial Port Connector 1x TPM Module Connector 1x Chassis Intrusion Connector 1x Clear CMOS Jumper 1x JRGB 2x JRAINBOW 1x Tuning Controller Connector |
|

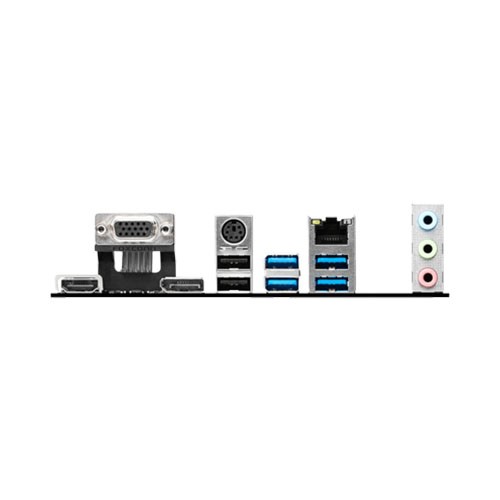

| USB Port | 6x USB 3.2 Gen 1 5Gbps Ports (4 Type-A Ports On The Back Panel, 2 Ports Through The Internal Connector) 2x USB 2.0 Type-A Ports On The Back Panel USB Hub-GL850G 4x USB 2.0 Ports Available Through Internal Connectors |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI motherboards feature tons of convenient and smart designs for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
The Most Important Thing Of DIY Is Expandability. MSI PRO Series Motherboards Feature Plenty Possibility For Prosumers’ Need. Stable LAN, Faster Storage And USB Transfer Speed And Other Expandable Connectors Are Ready To Enlarge Your Flexibility.
2.5Gbps LAN Provides Incredible Data Transfer Speed Faster Than General Gigabit LAN. This Is A Premium Solution For Demanding Users.
MSI PRO Series Motherboards Are Designed To Satisfy Any Professional Workflow. Elevate Your Listening Pleasure And Enjoy Extreme Sound Quality. Moreover, With Years Of Experience In Creating Performance Enhancing Tools That Are Easy To Use, Only The Highest Quality Applications Are At Your Disposal. The Extensive Features Let You Fine-Tune Your System To Deliver Reliable Maximum Performance.
MSI OC LAB Does Not Merely Work Hard On Extreme Overclocking. The XMP Memory Profile Has Great Improvement On Performance And Efficiency For B660 . Easy To Enable XMP Profile With Auto Power Settings To Get The Best Memory Speed And Stability.
