| BASIC INFORMATION | ||
| Form Factor | 12 in. x 10.7 in. (30.5 cm x 27.2 cm) E-ATX Form Factor |
|
| Basic Information | ||
| Chipset | AMD X570 Chipset | |
| Audio | Realtek ALC1220 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
|
| CPU | Supports AMD Ryzen 5000 Series/ AMD Ryzen 2nd & 3rd Generation Processors | |
| Memory | ||
| Memory | Type: DDR4 Dual channel memory architecture Slots: 4 Supported Memory: 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | MULTI-GPU Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology |
|
| Connector & Ports | ||
| LAN | 1x Intel I211AT Gigabit LAN controller 1x Aquantia AQC107 10-Gigabit LAN controller WIFI & BLUETOOTH Intel Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth 5 |
|
| Supported Storage | AMD X570 Chipset 4x SATA 6Gb/s ports (SATA1-SATA4) 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) 2242/2260/2280 storage devices M2_2 slot (from AMD X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen) or 3.0 x4 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices ASMedia ASM1061 2x SATA 6Gb/s ports (SATA5, SATA6) |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 7x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
|

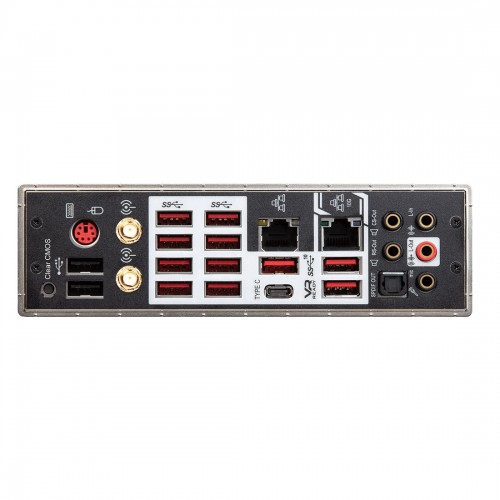

| USB Port | AMD X570 Chipset 1x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector 12x USB 3.2 Gen1 (SuperSpeed USB) ports (8 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen) or USB 3.2 Gen1 (2nd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) Type-A and Type- C port on the back panel 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 year warranty | |

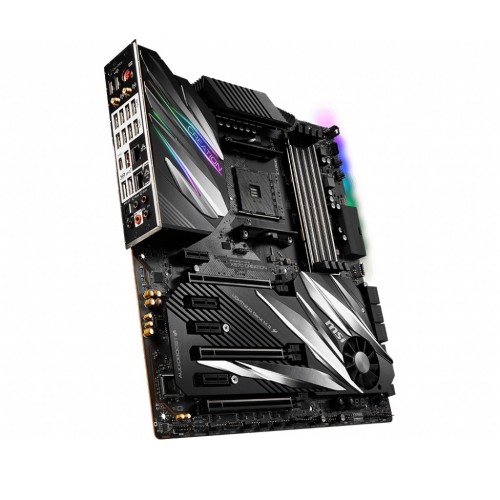

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want. Cooling is essential for a high performance PC to sustain intense workloads.PRESTIGE X570 CREATION features a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it. MSI motherboards been designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want. With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast. MSI takes memory stability and performance to the extreme. We’ve designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers. Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
