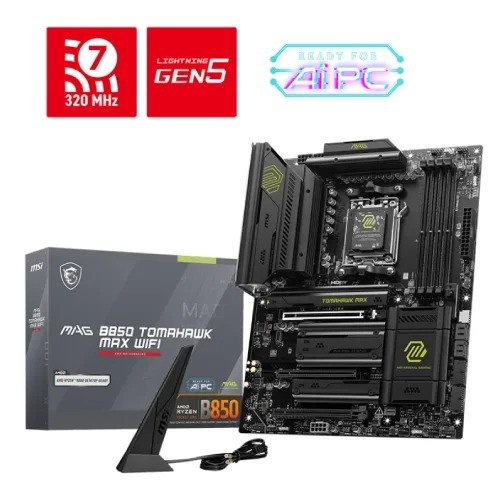

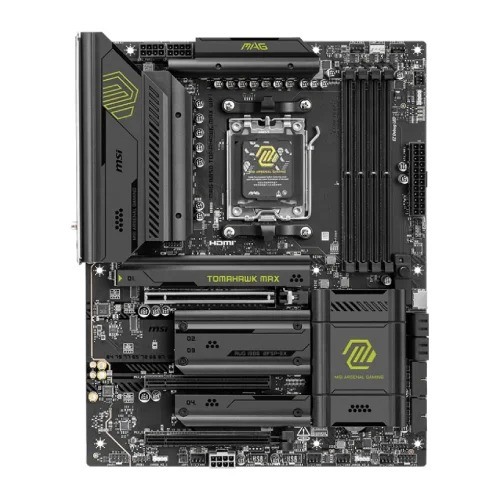

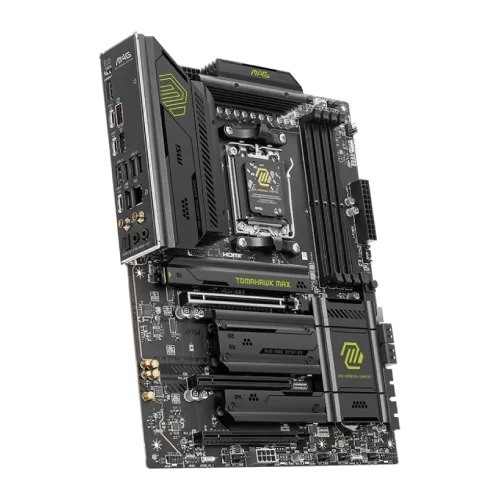

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard

Name: MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard
Brand: MSI
SKU: 14781
Price: 39500 BDT
Availability: InStock
Rating: 5 (2 reviews)

Price: 39,500৳

Status: In Stock

Product Code: 14781

Brand: MSI

Key Features

Model: MAG B850 TOMAHAWK MAX WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 8400+(OC) MT/s
Graphics Output: 1x HDMI
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4

View More Info

Payment Options

39,500৳

Cash Discount Price

Online / Cash Payment

6,583৳/month

Regular Price: 39,500৳

EMI Facility Available***

Quantity :

Chat Through

Whatsapp Messenger 09617179141

Specification
Description
Reviews ( 0)

Specification:

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Type	DDR5
Basic Information
Chipset	AMD B650
Audio	Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Form Factor	ATX 243.84mmx304.8mm
Memory
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port	1x DisplayPort
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax
LAN Port (s)	Realtek RTL8125B 2.5Gbps LAN
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Supported Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Audio Features
Audio	Audio Connectors
Others
Special Features	4x EZ Debug LED
WARRANTY INFORMATION
Manufacturing Warranty	3 Years

Description :

MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard

Specifications

Chipset & CPU Support: AMD B850 chipset, compatible with Ryzen 7000 / 8000 / 9000 series on AM5

Memory: 4× DDR5 UDIMM (up to 256 GB), OC speeds up to DDR5-8400 MT/s

VRM & Cooling: 14-phase CPU power design, heavy heatsinks with 7 W/mK thermal pads, anti-corrosion stainless steel I/O shield

Expansion Slots:

1× PCIe 5.0 x16 (CPU),

1× PCIe 4.0 x4 (chipset),

1× PCIe 3.0 x1

Storage: Four M.2 slots:

M2_1 & M2_2: PCIe 5.0 x4 (CPU),

M2_3: PCIe 4.0 x2 (chipset),

M2_4: PCIe 4.0 x4 (chipset),

plus 4× SATA III ports

Networking: 5 GbE LAN (Realtek 8126VB) and tri-band Wi‑Fi 7 + Bluetooth 5.4

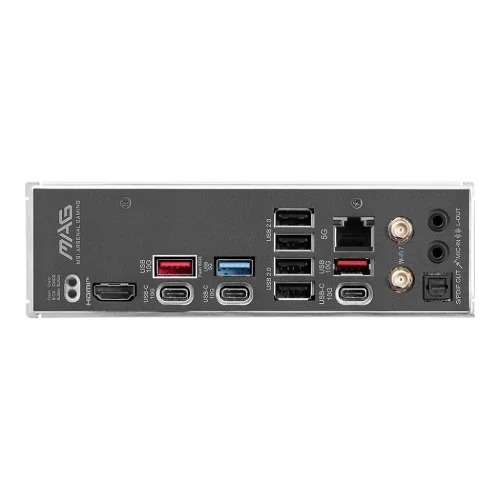

Rear I/O: USB 10 Gbps Type-C ×3, USB 10 Gbps Type-A ×2, USB 5 Gbps Type-A, plus BIOS Flashback & Clear CMOS buttons, HDMI 2.1 (8K@60Hz), optical SPDIF

Audio: Realtek ALC4080 with isolated layout supporting 7.1, 32-bit/384 kHz

Form Factor: Standard ATX (305×244 mm) with robust build and thoughtful design
