MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
  • MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
  • MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard
  • MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard

MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard

Price: 37,000৳ 39,000৳
Status: In Stock
Product Code: 16043
Brand: MSI
Key Features
  • Model: B850 GAMING PLUS WIFI PZ
  • Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
  • Supported RAM: 4x DDR5, up to 256GB, 8200 MT/s (OC)
  • Graphics Output: 1x DisplayPort 1.2, 4K 60Hz Resolution
  • Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
View More Info

Payment Options

Quantity :

Specification:

Basic Information
Supported CPU Ryzen 9000/8000/7000 Series
Chipset AMD B850
BIOS Flash BIOS Button
Form Factor ATX
Audio Realtek ALC897
7.1-Channel High Definition Audio
Expansion Slots
PCI 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot
Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket 3x M.2
Memory
Type 256GB
Slots DDR5
Supported Memory 4 x UDIMM
Maximum Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Graphics
Graphics 1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz

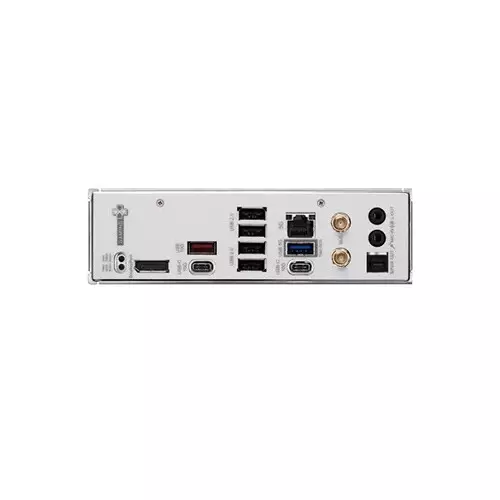

Connector & Ports
USB (s) 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
LAN Port (s) 1x Realtek 8126VB 5G LAN
Supported Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices
4x SATA 6G

M2_1 slot
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

M2_2 slot
Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors)
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
RAID 5 configuration is only supported by Ryzen 9000 Series Processors
Audio 1x Front Audio (JAUD)
Internal I/O Ports 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Display Port (s) 1x DisplayPort 1.2
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Wireless Communication module Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
Others
Special Features 4x EZ Debug LED
Warranty Information
Warranty 3 Year

Description :

MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard


The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is designed for gamers, PC enthusiasts and professional users who want powerful performance, advanced connectivity and next-generation AMD platform support. Powered by the AMD B850 chipset and featuring an AM5 socket, this motherboard supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors.

With support for up to 256GB of DDR5 memory across four DIMM slots and memory speeds of up to 8200 MT/s (OC), the MSI B850 GAMING PLUS WIFI PZ delivers excellent memory performance for demanding gaming, multitasking and productivity workloads.

The motherboard features next-generation Wi-Fi 7 connectivity, Bluetooth 5.4 and Realtek 8126VB 5G LAN for fast and reliable networking. Whether you are playing online games, transferring large files or enjoying high-speed internet connectivity, it provides advanced networking capabilities for modern PC builds.

Its ATX form factor offers a suitable foundation for powerful custom gaming PCs and performance-focused desktop systems. The DisplayPort 1.2 output supports resolutions up to 4K at 60Hz with a compatible processor featuring integrated graphics.


Why Choose MSI B850 GAMING PLUS WIFI PZ?


The MSI B850 GAMING PLUS WIFI PZ is an excellent motherboard option for users planning to build a modern AMD Ryzen-based gaming or productivity PC. With AM5 processor compatibility, high-speed DDR5 memory support, Wi-Fi 7, Bluetooth 5.4 and 5G LAN, it offers advanced connectivity and a powerful platform for next-generation desktop computing.

If you are looking for an MSI B850 motherboard with modern networking features and high-performance DDR5 memory support, the MSI B850 GAMING PLUS WIFI PZ is worth considering.
