| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 |
|
| Form Factor | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
| Basic Information | ||
| Chipset | AMD X570 Chipset | |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Memory | ||
| Slots | Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports x16 for AMD Ryzen 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors PCI_E1 supports x8 for AMD Ryzen 2000 G-Series and 3000 G- Series desktop processors 2x PCIe x16 slots (From X570 chipset) PCI_E3 supports x4 PCI_E4 supports 3.0 x1 only 1x PCIe 3.0 x1 slot (From X570 chipset) |
|
| Memory | Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 with HDR port | |
| LAN | 1x Realtek RTL8125B 2.5 Gbps LAN controller | |
| Supported Storage | 8x SATA 6Gb/s ports (From X570 chipset) 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors M2_1 (From processor) Supports 2242/ 2260/2280/22110 storage devices Supports up to SATA 6Gb/s M2_2, M2_31 and M2_4 slots (from AMD X570 Chipset) M2_2 & M2_4 slots support 2242/ 2260/ 2280 storage devices M2_3 slot supports 2242/ 2260/2280/22110 storage devices M2_2 & M2_3 slots support up to SATA 6Gb/s Supports RAID 0, RAID 1 and RAID 10 |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 8x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal sensor connector 1x Clear CMOS jumper |
|

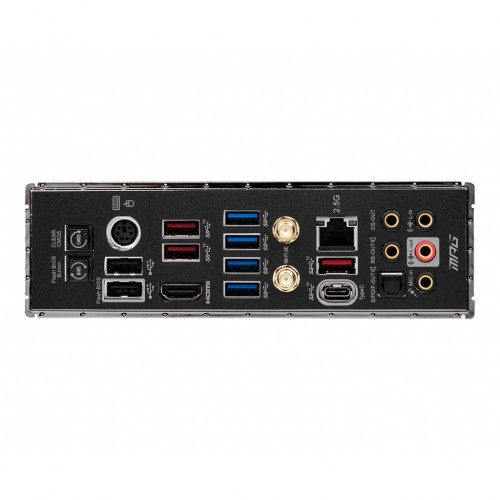

| USB Port | AMD X570 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors 2x USB 2.0 ports on the back panel Asmedia® 1074 Chipset 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel GL850G Hub 4x USB 2.0 ports are available through the internal USB connectors AMD Processor 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports and 1 Type-C port on the back panel) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years warranty | |

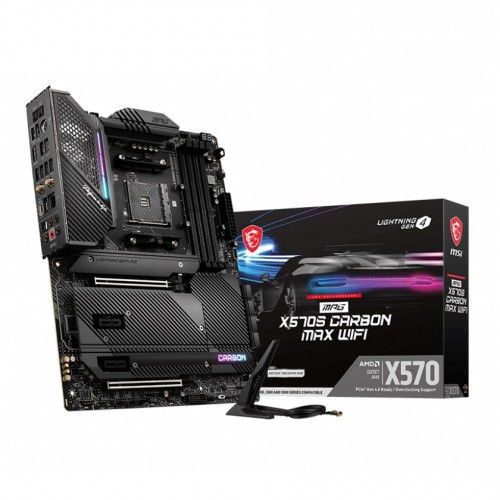

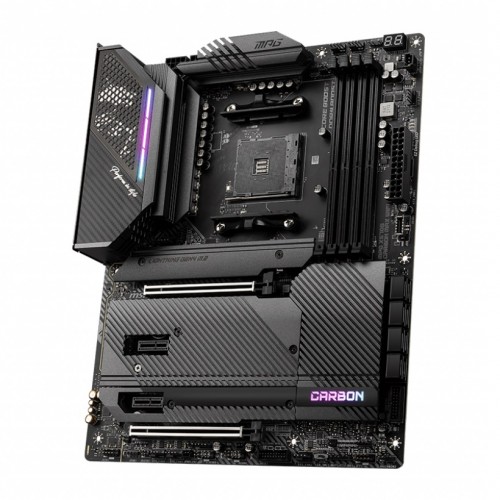

The MSI MPG X570S CARBON MAX WIFI Motherboard Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors for Socket AM4. It comes with 4x DDR4 memory slots and supports up to 128GB. It offers lightning Fast Game experience with PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2. MSI MPG X570S CARBON MAX WIFI comes with an Enhanced Power Design. It is equipped with 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, and DDR4 Boost. The MSI MPG X570S CARBON MAX WIFI has a Premium Thermal Solution. Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and 3x M.2 Shield Frozr is built for a high-performance system and non-stop gaming experience. The motherboard supports 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. It features a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution with an upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. MSI MPG X570S CARBON MAX WIFI features a 6-layer PCB made of 2oz thickened copper and server grade-level material.
