| Basic Information | ||
| Chipset | AMD X570 Chipset | |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF Output |
|
| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G- Series, 2000 Series And 2000 G-Series Desktop Processors Supports Socket AM4 |
|
| Form Factor | ATX Form Factor | |
| Memory | ||
| Slots | Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 Is Available Only On AMD Ryzen™ 5000 Series And 3000 Series Desktop Processors 1x PCIe X16 Slot (From Processor) PCI_E1 Supports X16 For AMD Ryzen™ 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series And 2000 Series Desktop Processors PCI_E1 Supports X8 For AMD Ryzen™ 2000 G-Series And 3000 G-Series Desktop Processors 2x PCIe X16 Slots (From X570 Chipset) PCI_E3 Supports X4 PCI_E4 Supports 3.0 X1 Only 1x PCIe 3.0 X1 Slot (From X570 Chipset) |
|
| Memory | 4x DDR4 Memory Slots, Support Up To 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz By JEDEC1 Max Frequency By A-XMP OC Mode: For Ryzen™ 5000 G-Series & 4000 G-Series Processors 1DPC 1R Max Speed Up To 5300 MHz 1DPC 2R Max Speed Up To 4266 MHz 2DPC 1R Max Speed Up To 4400 MHz 2DPC 2R Max Speed Up To 3600 MHz For Ryzen™ 5000 Series & 3000 Series Processors 1DPC 1R Max Speed Up To 5100 MHz 1DPC 2R Max Speed Up To 4000 MHz 2DPC 1R Max Speed Up To 4000 MHz 2DPC 2R Max Speed Up To 3600 MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz | |
| Connector & Ports | ||
| LAN | 1x Realtek RTL8125B 2.5 Gbps LAN Controller | |
| Supported Storage | 6x SATA 6Gb/S Ports (From X570 Chipset) 3x M.2 Slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 Is Available Only On AMD Ryzen™ 5000 Series And 3000 Series Desktop Processors Support SATA 6Gbps M2_1 (From Processor) Supports 2242/ 2260/ 2280/ 22110 Storage Devices M2_2 (From X570 Chipset) Supports 2242/ 2260/ 2280 Storage Devices M2_31 (From X570 Chipset) Supports 2242/ 2260/ 2280 Storage Devices |
|
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 1x 8-Pin ATX 12V Power Connector 1x 4-Pin ATX 12V Power Connector 6x SATA 6Gb/S Connectors 3x M.2 Slots (M-Key) 2x USB 2.0 Connectors (Support Additional 4 USB Ports) 2x USB 3.2 Gen 1 5Gbps Connectors (Support Additional 4 USB Ports) 1x USB 3.2 Gen 2 10Gbps Type-C Connector 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Connector 6x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x TPM Module Connector 1x Chassis Intrusion Connector 1x 2-Pin Thermal Sensors Connector 1x Tuning Controller Connector |
|

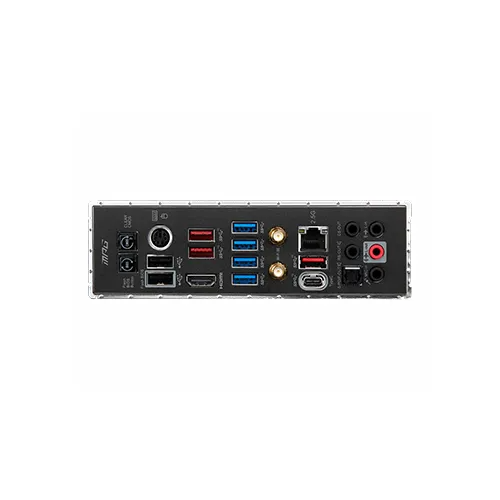

| USB Port | 1x USB 3.2 Gen 2 10Gbps Type-C Internal Connector 4x USB 3.2 Gen 1 5Gbps Ports Are Available Through Internal USB Connectors 2x USB 2.0 Ports On The Back Panel Asmedia® 1074 Chipset 4x USB 3.2 Gen 1 5Gbps Type-A Ports On The Back Panel GL850G Hub 4x USB 2.0 Ports Are Available Through The Internal USB Connectors AMD Processor 4x USB 3.2 Gen 2 10Gbps Ports (3 Type-A Ports And 1 Type-C Port On The Back Panel) |
|
| WiFi | Intel® Wi-Fi 6E AX210 The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) Up To 2.4Gbps |
|
| WARRANTY INFORMATION | ||
| Warranty | 2 Years | |

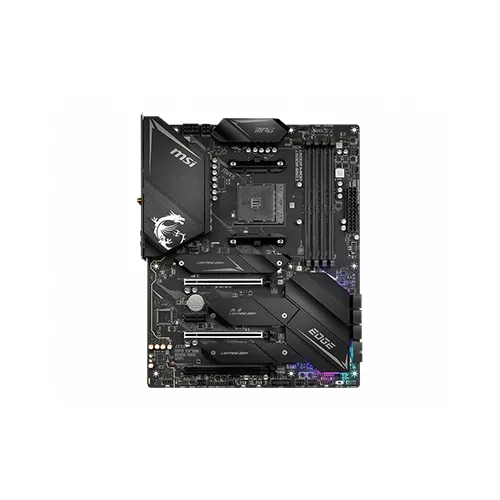

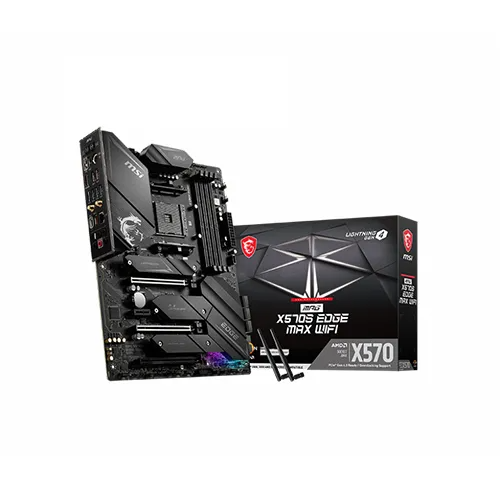

Take A Step Into The Future With The MSI X570S EDGE MAX Wifi, Here To Support The Very Latest AMD Ryzen Processors; Bolstered With An Arsenal Of Top-Shelf Modern Features Like; The Latest 4th Gen PCI-E And M.2 Technologies, Type-C Connectivity, DDR4 Memory Boosts, A Premium Thermal Design Including Aluminum Cover, VRM Heat Pipes, And MOSFET Baseplate Plus Onboard M.2 Shield Frozr And Incredible Wi-Fi 6e Technology. The MSI X570S Motherboards Have What It Takes To Push The Boundaries Of Performance Into Unknown Territories, So Buckle Up And Get Ready For The Ride Of Your Life.
