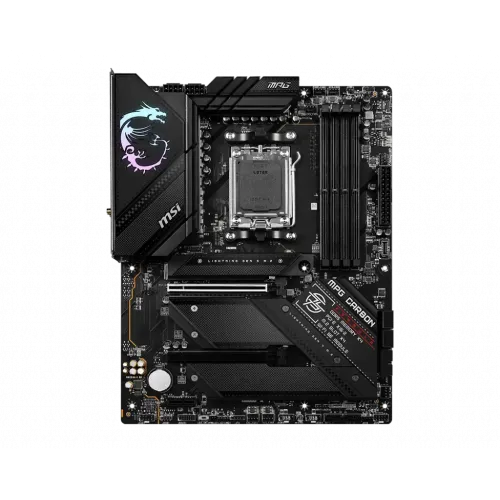

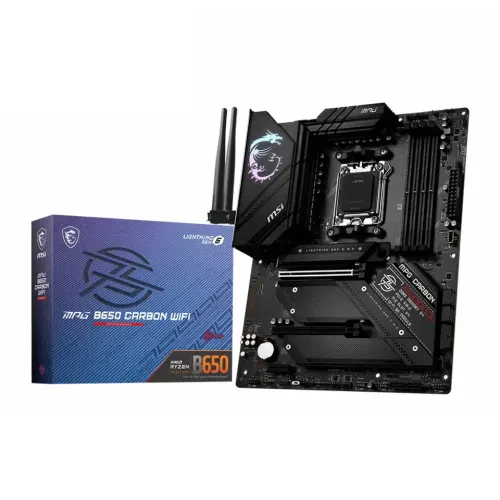

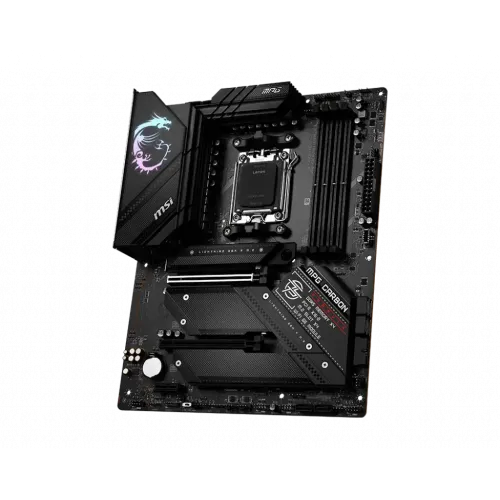

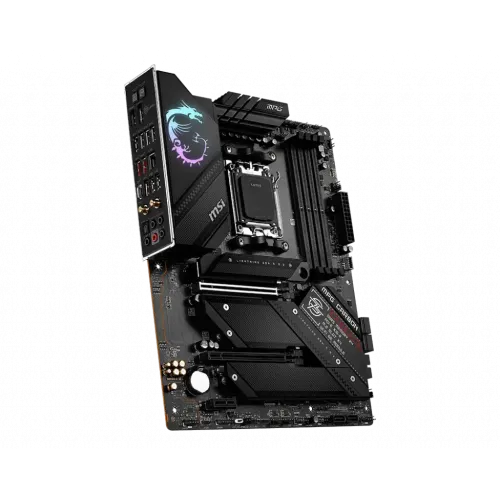

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Name: MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard
Brand: MSI
SKU: 10776
Availability: OutOfStock
Rating: 5 (2 reviews)

Price: Up Coming

Status: Up Coming

Product Code: 10776

Brand: MSI

Key Features

Supports AMD Ryzen 8000/7000 CPUs
DDR5 memory up to 6600+ MHz
PCIe Gen5 M.2 & Wi-Fi 6E
HDMI 2.1 & USB 3.2 Gen2x2

View More Info

Payment Options

Up Coming

Cash Discount Price

Online / Cash Payment

0৳/month

Regular Price:

EMI Facility Available***

Quantity :

Chat Through

Whatsapp Messenger 09617179141

Specification
Description
Reviews ( 0)

Specification:

Basic Information
Type	DDR5
BASIC INFORMATION
Supported CPU	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Form Factor	ATX 243.84mmx304.8mm
Basic Information
Chipset	AMD B650
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From CPU) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Memory
Memory Type	DDR5
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	128GB
Storage	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI
Audio	Audio Connectors
Display Port	1x DisplayPort
LAN	Realtek RTL8125 2.5Gbps LAN
Wireless	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 6x SATA 6G port
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C

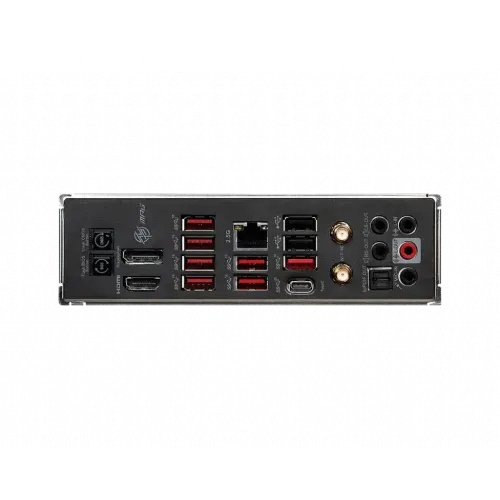

USB Port	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED 1x EZ LED Control switch
WARRANTY INFORMATION
Warranty	3 Years

Description :

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MPG B650 CARBON WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6600+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. TheMotherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MPG B650 CARBON WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. It comes with an upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MPG B650 CARBON WIFI comes with 3 years of warranty.
